Selector Lever Cable, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Audi S6, 2017 Audi S6, 2016 Audi S6, 2016 Audi S4, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Tightening specifications. Refer to OVERVIEW - SELECTOR LEVER CABLE .

NOTE:

Replace the O-ring on the selector lever cable.

Replace the lock washers for the noise insulation.

Lubricate the cable eye and the ball socket on the selector lever cable with Polycarbamide Grease G 052 142 A2 before installing.

-- Install the O-ring -1- on the selector lever cable.

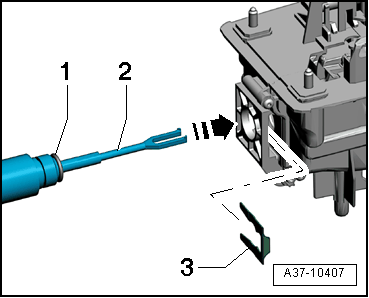

Fig 1: O-Ring, Selector Lever Cable And Clip

Courtesy of AUDI OF AMERICA, LLC

-- Install the selector lever cable -2- into the gearshift mechanism function unit -arrow-.

-- Secure the selector lever cable -2- with the clip -3-.

Installed position: The angled end of the clip -1- faces the shift mechanism.

Fig 2: Identifying Selector Lever Cable Retaining Clip Sideways & Selector Lever Cable From Shift Mechanism
Courtesy of AUDI OF AMERICA, LLC

-- Push the selector lever -1- on the transmission all the way to the back in direction of -arrow- until the parking lock locks into place.

Fig 3: Pushing Selector Lever On Transmission All Way To Back Until Parking Lock Locks Into Place

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When parking lock is engaged, it must not be possible to turn the front wheels.

-- Press the selector shaft lever forward three detents so the transmission is in the "D" or "D/S" position.

-- Make sure, that the selector lever in the vehicle is in the "D" or "D/S" position.

-- Carefully press the selector lever cable ball socket -2- in this position onto the selector shaft lever.

Fig 4: Identifying Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Do not bend selector shaft lever when pressing on, otherwise shift mechanism can no longer be adjusted exactly.

-- Secure the selector lever cable with the clip -1-.

-- Depending on the version a lock nut can be installed instead of a clip -1-, tightening specification 13 Nm.

NOTE:

Do not bend or kink the selector lever cable.

-- Adjust the selector lever cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .

-- Install tunnel crossmember. Refer to OVERVIEW - SUBFRAME MOUNT .

-- Check the selector mechanism. Refer to GEARSHIFT MECHANISM, CHECKING .

-- Reconnect exhaust system making sure it is not under stress. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .

-- Install the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Install the diagonal braces. Refer to DIAGONAL BRACE, REMOVING AND INSTALLING .
