MECHATRONIC, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Audi S6, 2017 Audi S6, 2016 Audi S6, 2016 Audi S4, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission installed
CAUTION:
Danger of causing damage to the transmission.
- Do not start the engine if there is no ATF in the transmission or if the DSG transmission Mechatronic -J743- is removed.
NOTE:
Refer to GENERAL REPAIR INFORMATION .
Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
S tronic Transmission 0B5 Information. Refer to REPAIR INFORMATION .
-- Move the selector lever into "P".
-- Turn off the ignition and remove the key.
CAUTION:
There is a risk of destroying the Transmission Control Module (TCM) (Mechatronic) with electrostatic discharge.
- Always "discharge" the static electricity before working with electric connectors. Do this by touching a grounded object, for example vehicle Ground (GND), the vehicle or the hoist.
- Do not touch contacts in transmission connector with hands.

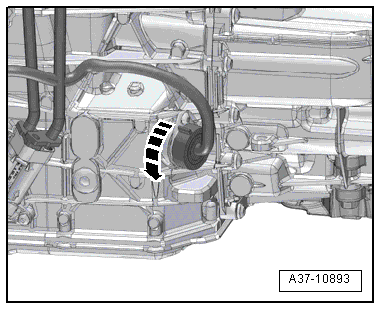

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector from the transmission.
-- Remove the ATF oil pan. Refer to OIL PAN, REMOVING AND INSTALLING .
