ATF Lines, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Audi S6, 2017 Audi S6, 2016 Audi S6, 2016 Audi S4, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Guidelines for clean working conditions when working on the dual clutch transmission. Refer toGUIDELINES FOR CLEAN WORKING CONDITIONS .

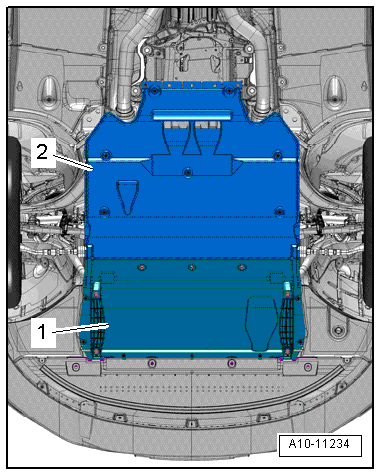

Remove the noise insulations -1- and -2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING
Courtesy of AUDI OF AMERICA, LLC

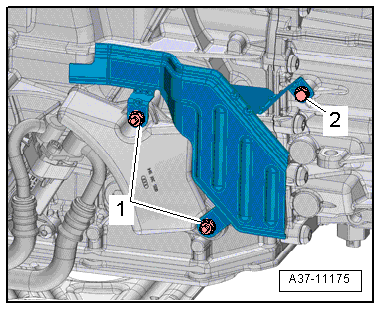

If equipped, remove the nuts -1- and the bolt -2-, then remove the heat shield.
Courtesy of AUDI OF AMERICA, LLC

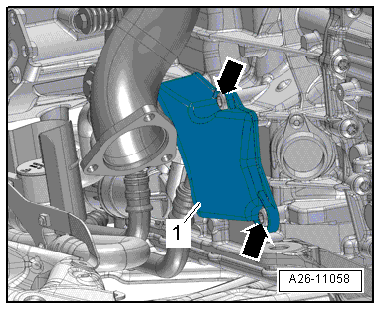

Remove the bolts -arrows- and the cover -1- from the side of the transmission.
Courtesy of AUDI OF AMERICA, LLC

Place the Used Oil Collection and Extraction Unit SMN372500 under the separating points.

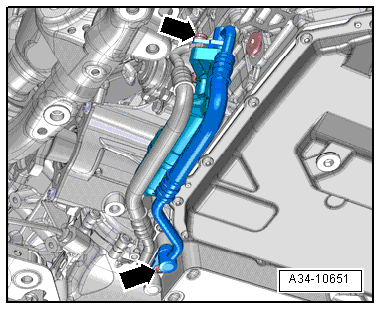

Remove the bolts -arrows- and remove the ATF hose lines.
Seal the open lines and connections with clean plugs from the Engine Bung Set -VAS6122-.
Remove the ATF line/hose line.
