ATF Cooler, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2018 Audi S6, 2017 Audi S6, 2016 Audi S6, 2016 Audi S4, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING
.CAUTION: Risk of damaging the suspension components.
- Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.
- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
Place the Used Oil Collection and Extraction Unit -SMN372500- under the separating points.

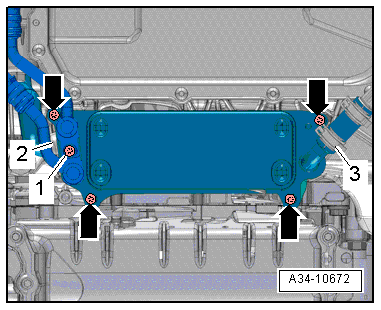

- Remove the bolt -1- and then remove the ATF line/hose lines from the ATF cooler.
- Seal the open lines and connections with clean plugs from the Engine Bung Set -VAS6122-.
- Remove the bolts -arrows-.
- Remove the coolant hoses, for that, loosen the hose clamps -2 and 3- and remove the ATF cooler.
