Section 469 (Seats (Service Information))
>>
SEAT HEATER SWITCH (for Rear Side)
>>
Components [08/2013 - ]
>>
Illustration
Components [08/2013 - ]: Illustration
WARNING:
This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

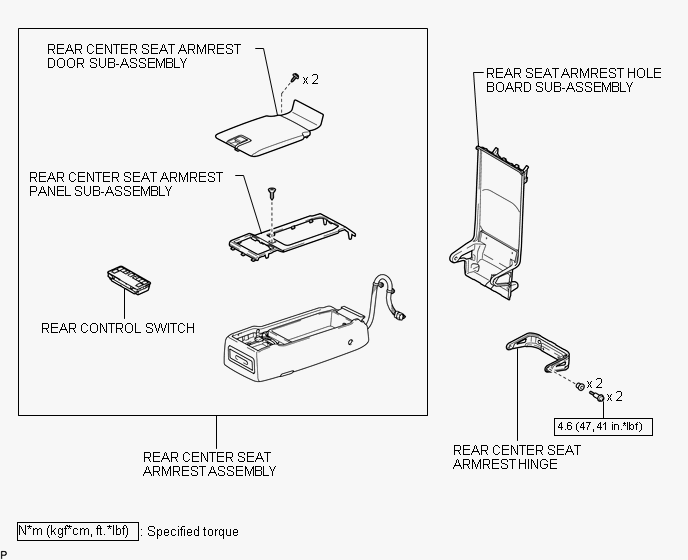

Fig 1: Identifying Seat Heater Switch Replacement Components (For Rear Side) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Seat Heater Switch Replacement Components With Torque Specifications (For Rear Side) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Seat Heater Switch Replacement Components With Torque Specifications (For Rear Side) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Seat Heater Switch Replacement Components With Torque Specifications (For Rear Side) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
