Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 2
  2. REMOVE REFRESHING SEAT SWITCH
    1. Disengage each claw to remove the 2 refreshing seat switches from the console panel sub-assembly.

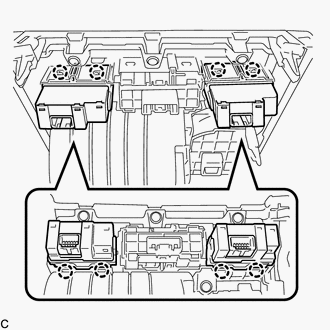

      Fig 1: Identifying Refreshing Seat Switch & Claws
      GTY399136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
