Rear Seatback Heater
>>
Components [08/2013 - ]
>>
Illustration
Components [08/2013 - ]: Illustration
WARNING:
This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

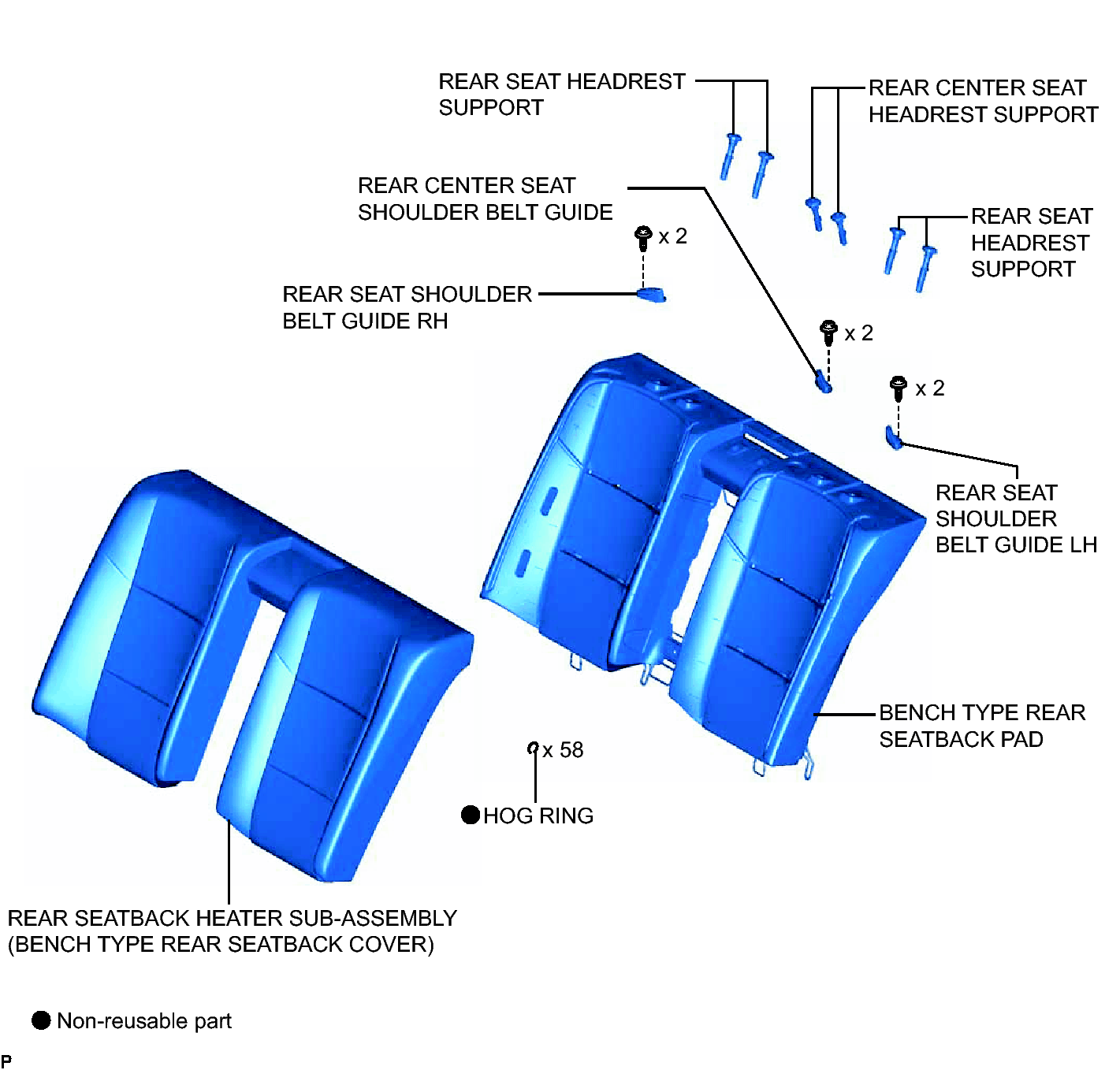

Fig 1: Identifying Rear Seatback Heater Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

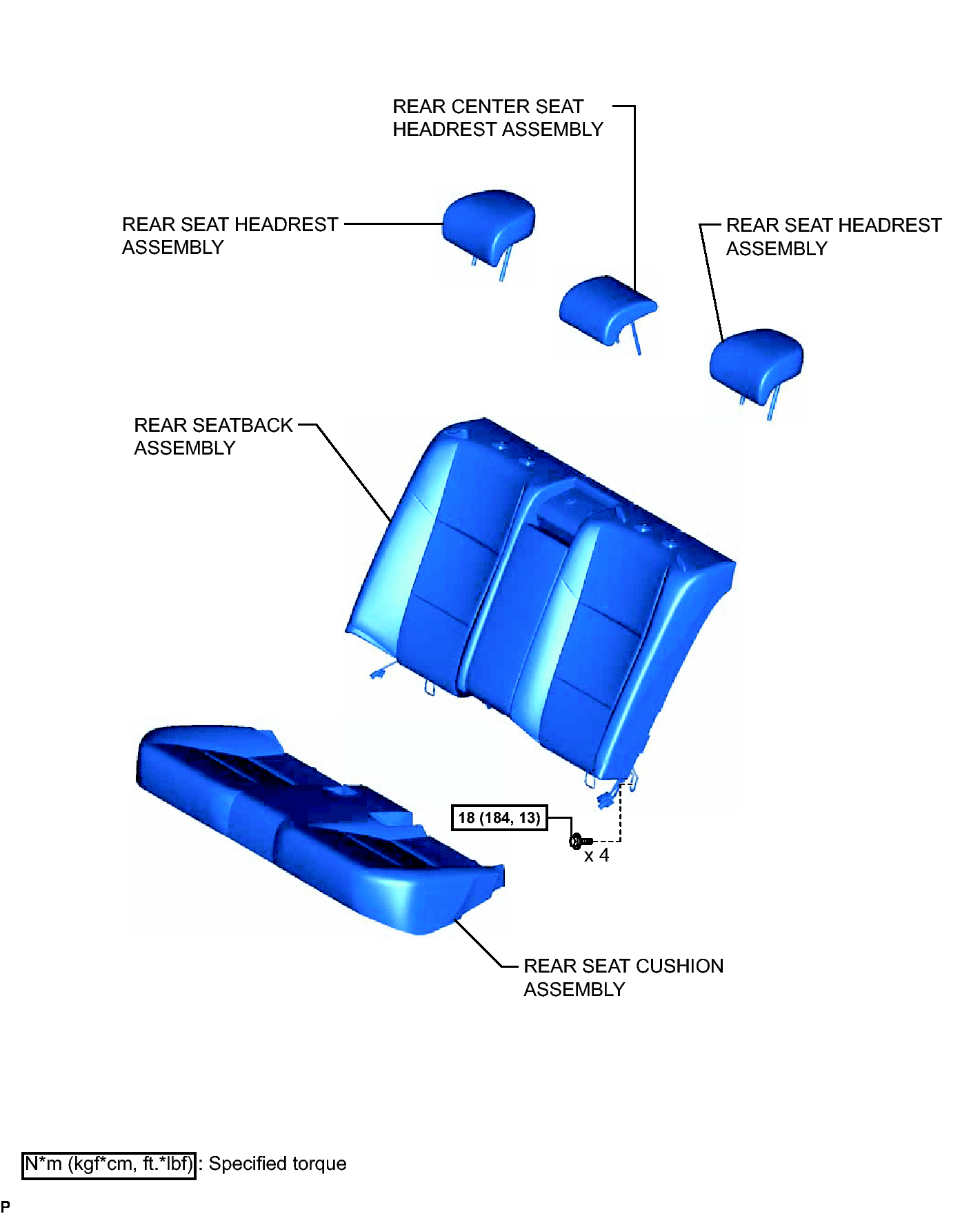

Fig 1: Identifying Rear Seatback Heater Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Seatback Heater Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Rear Seatback Heater Replacement Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
