Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components (1 Of 3)
GTY417486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY406831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

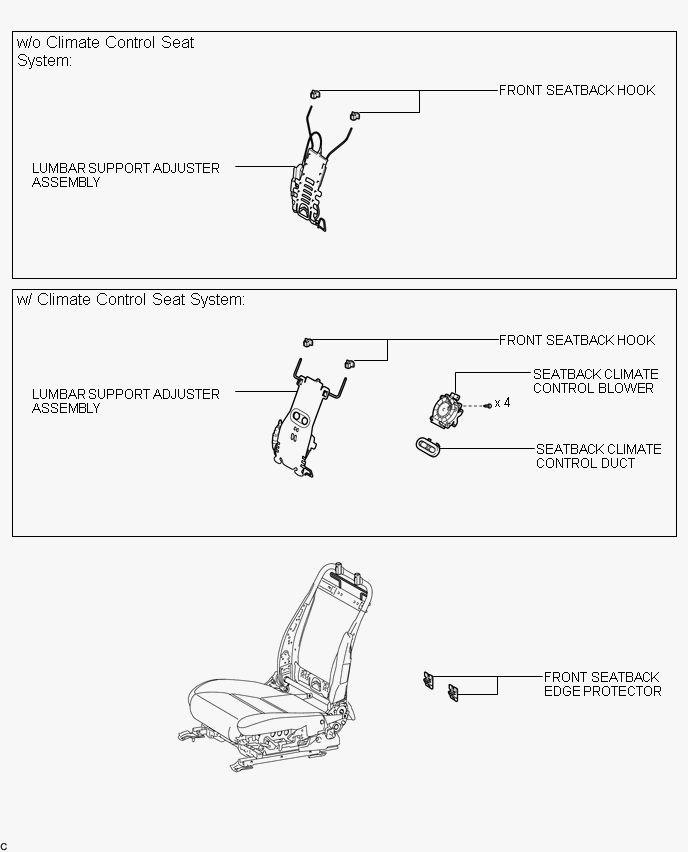

Fig 1: Identifying Lumbar Support Adjuster Assembly Replacement Components (3 Of 3)
GTY407278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
