Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

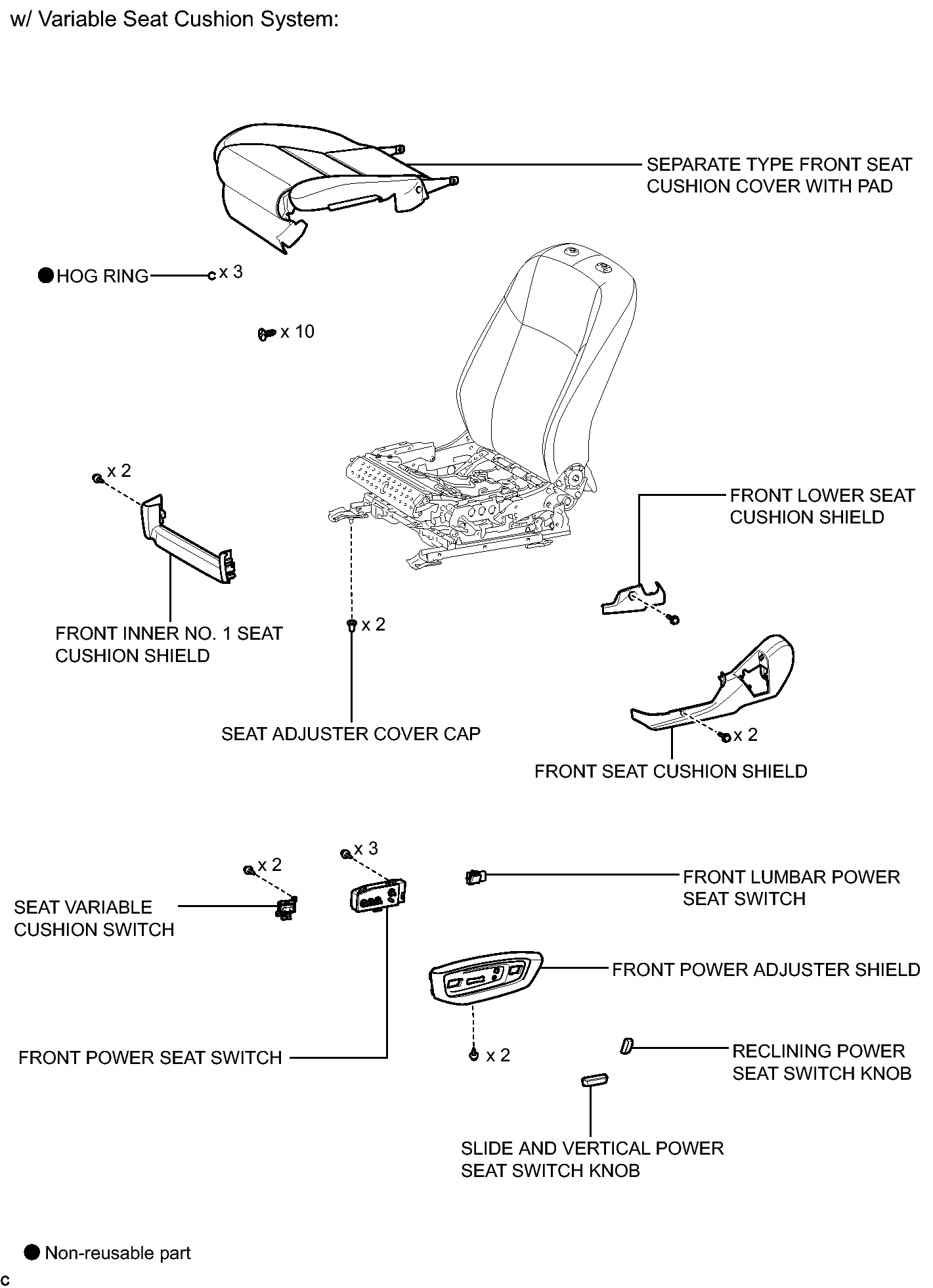

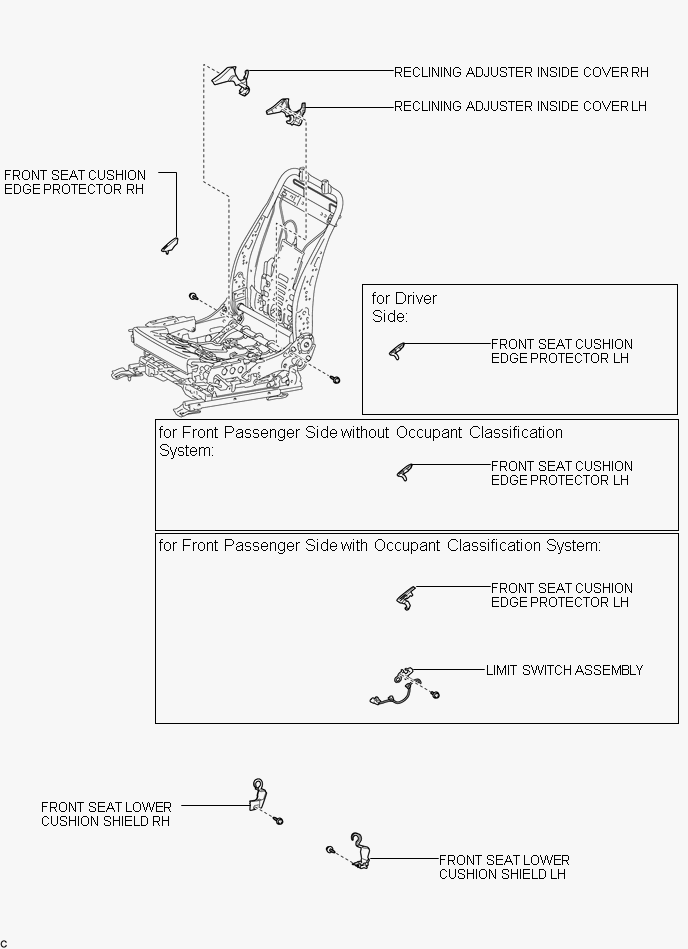

Fig 1: Identifying Front Seat Assembly Replacement Components (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

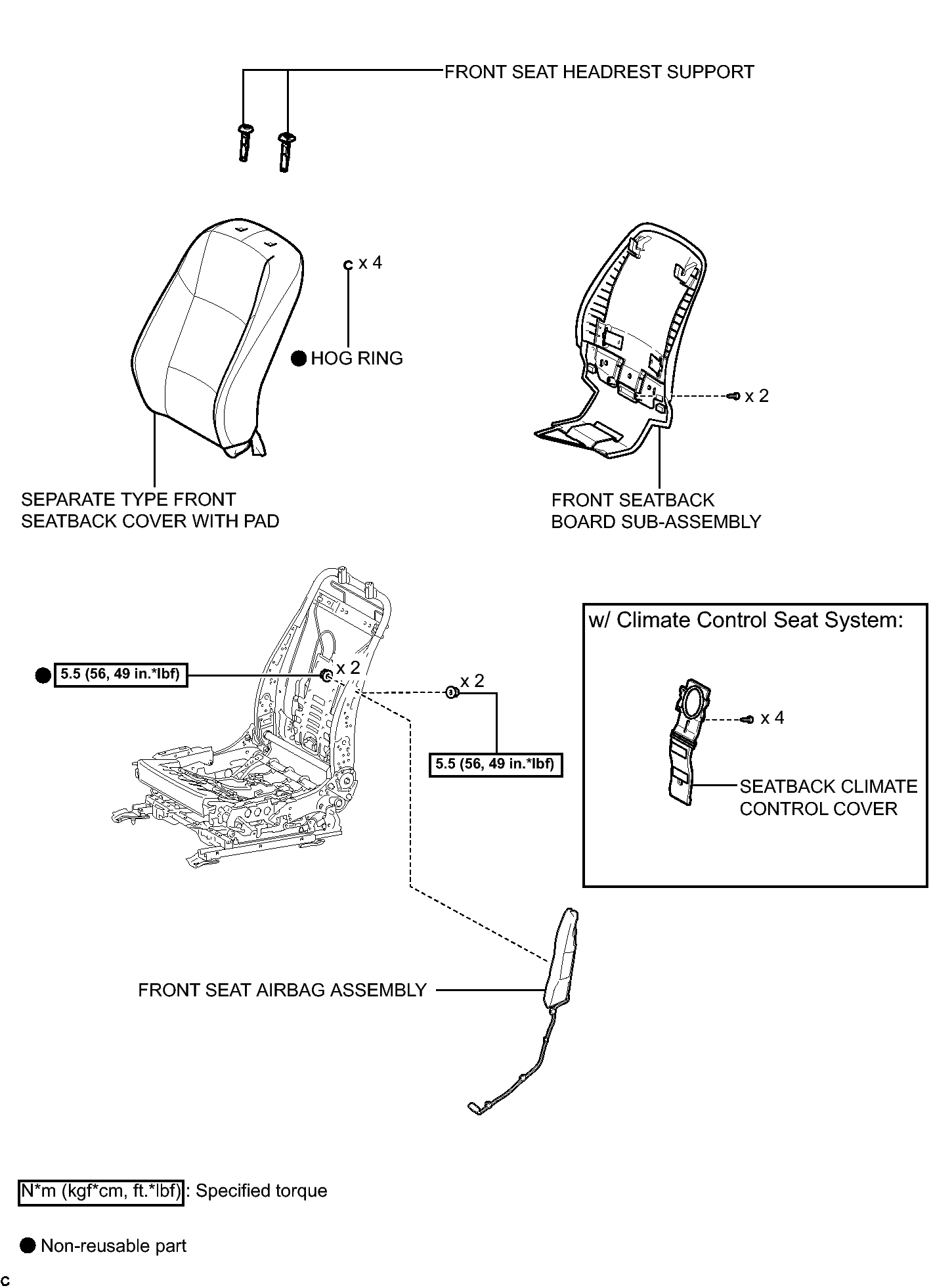

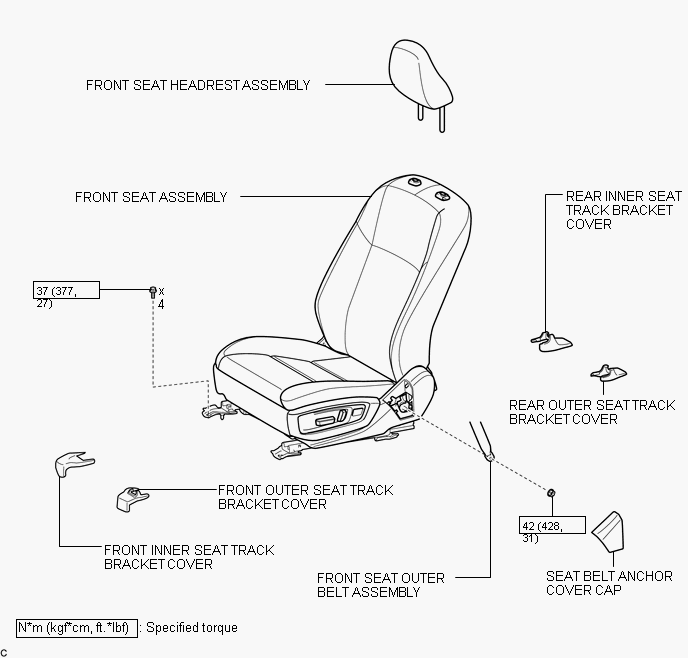

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

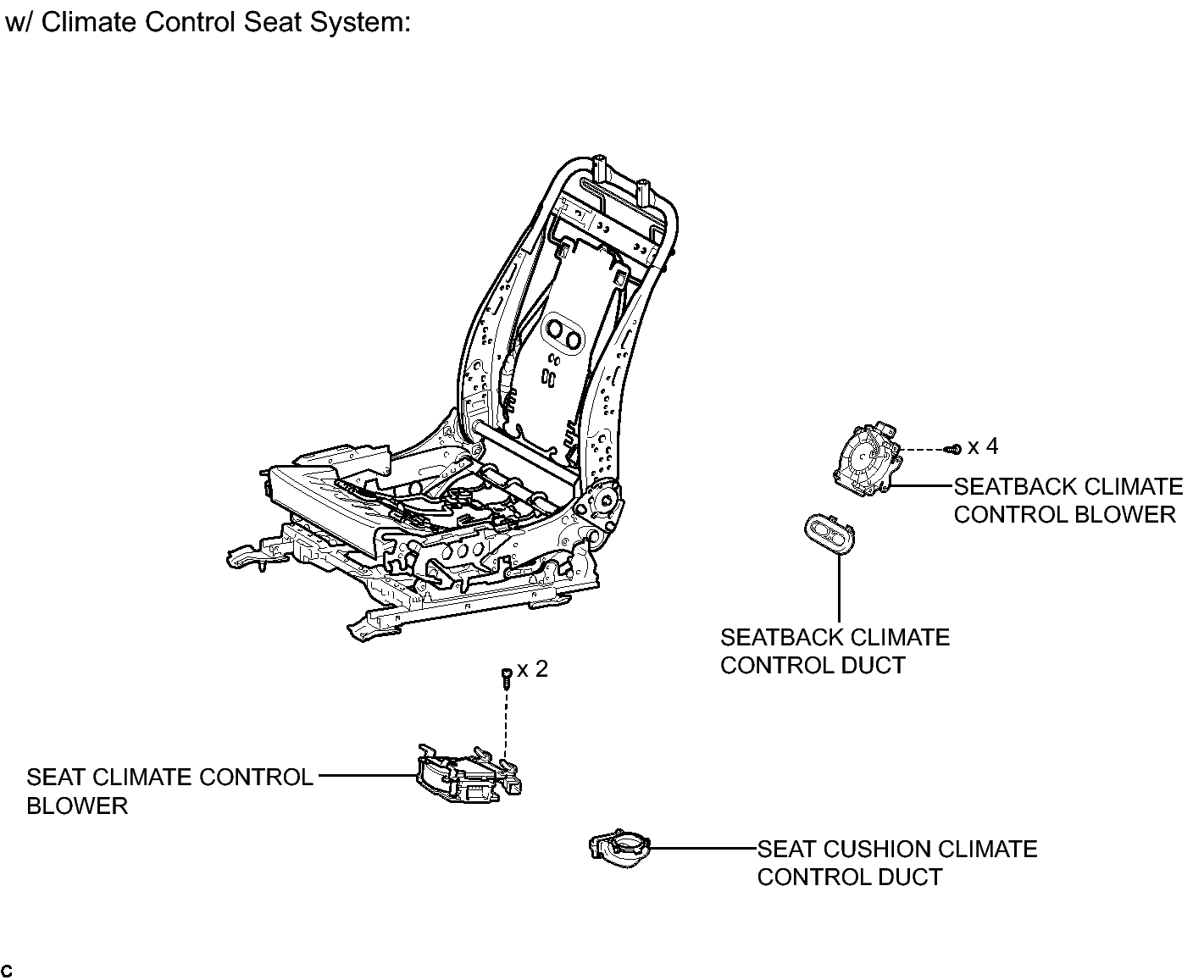

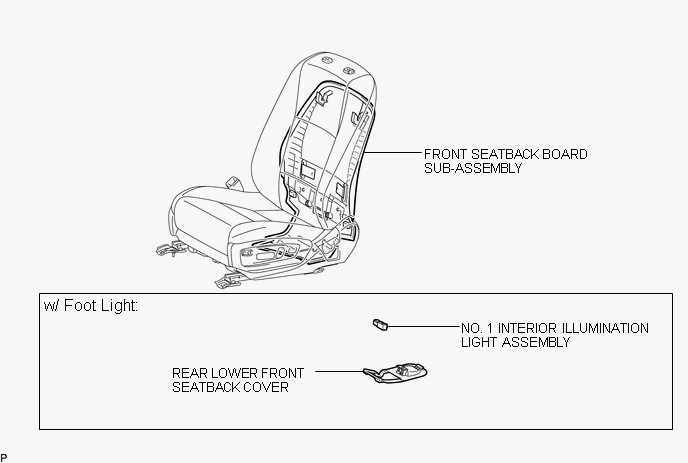

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

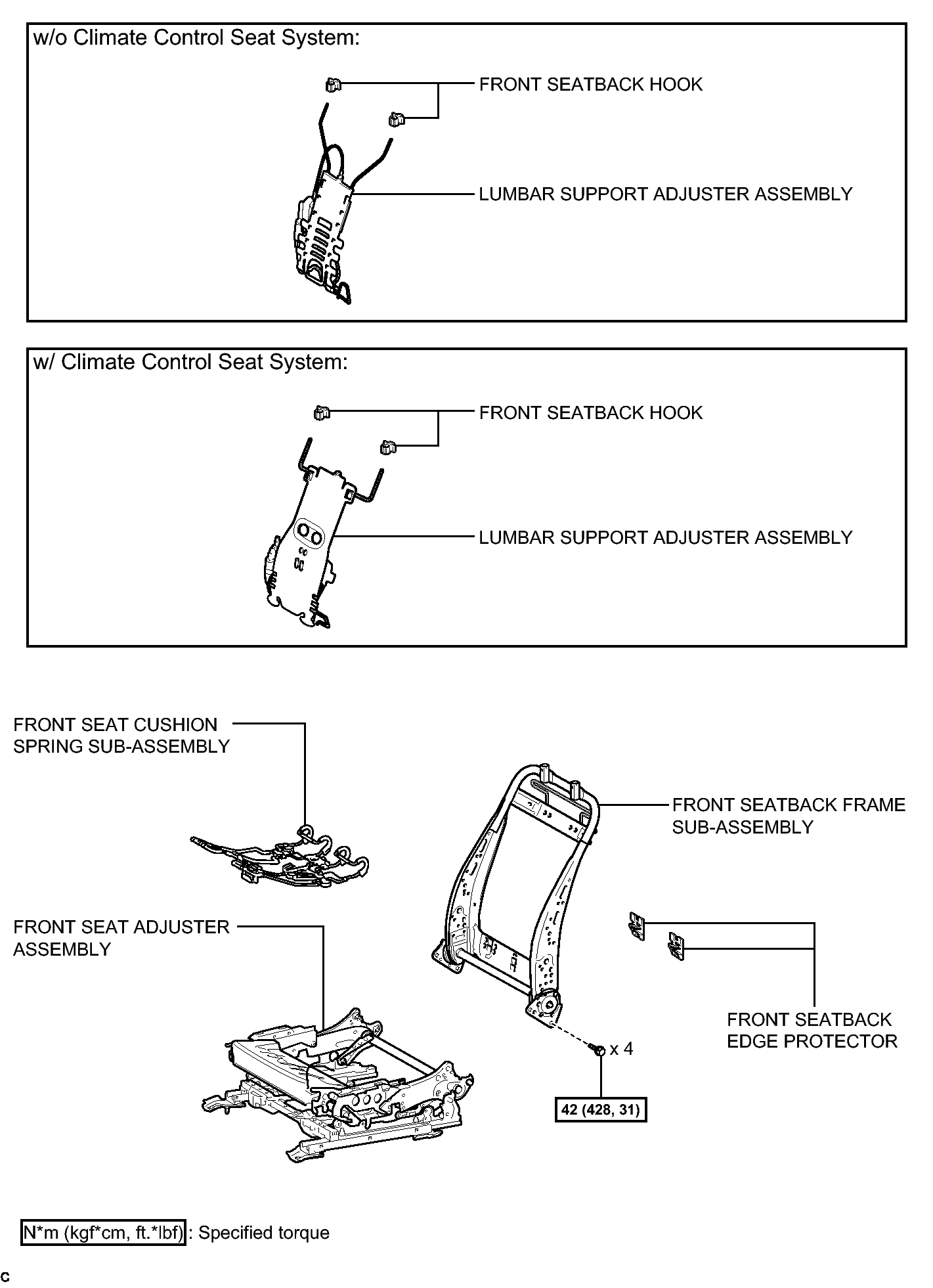

Fig 1: Identifying Front Seat Assembly Replacement Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

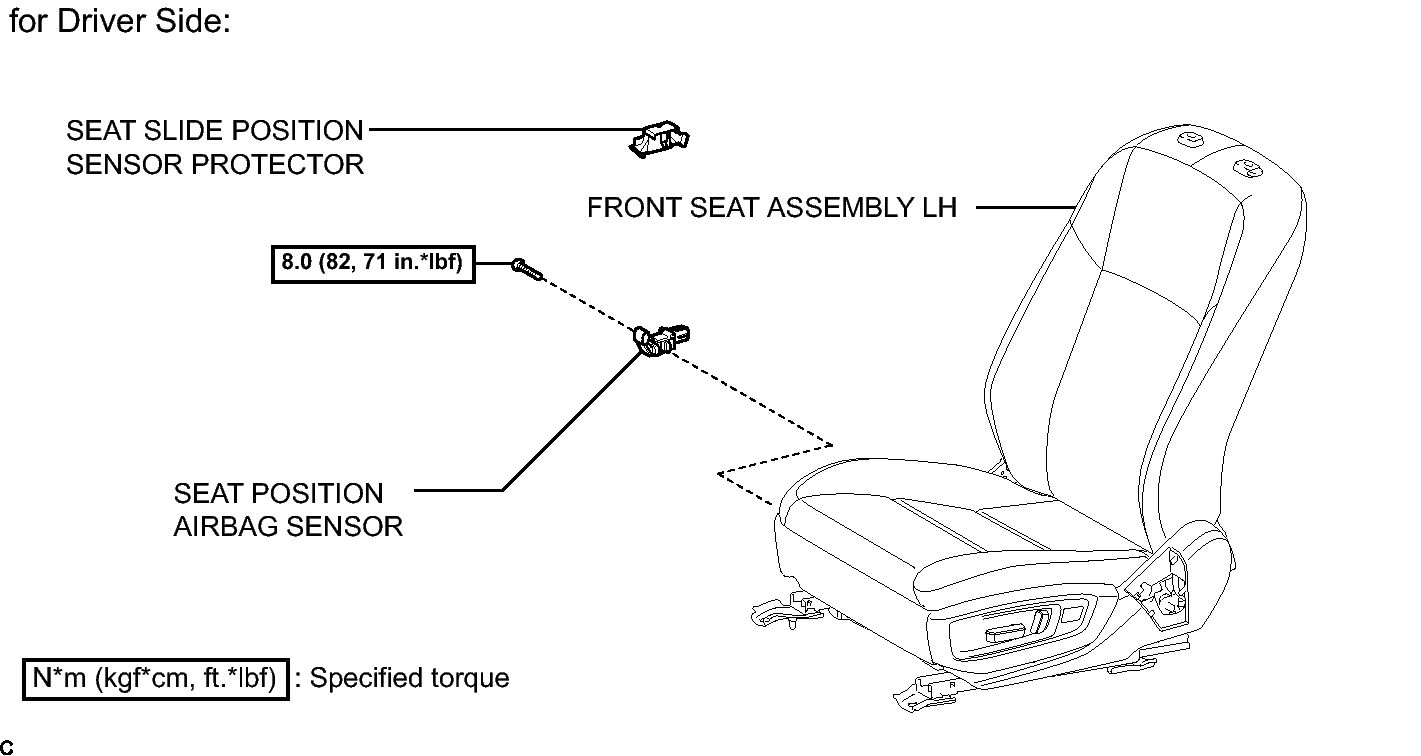

Fig 1: Identifying Front Seat Assembly Replacement Components (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

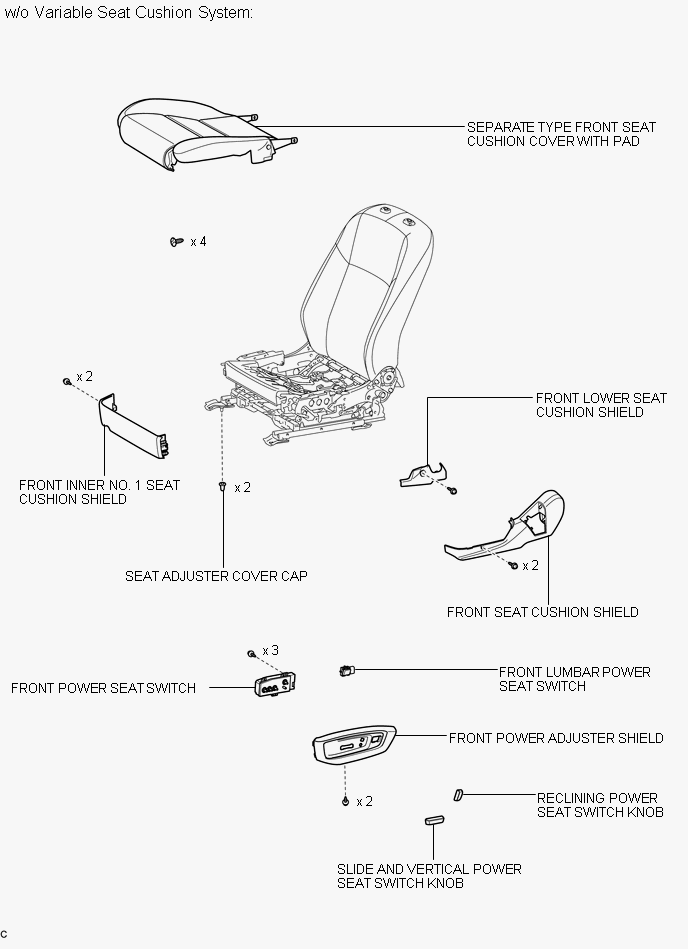

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

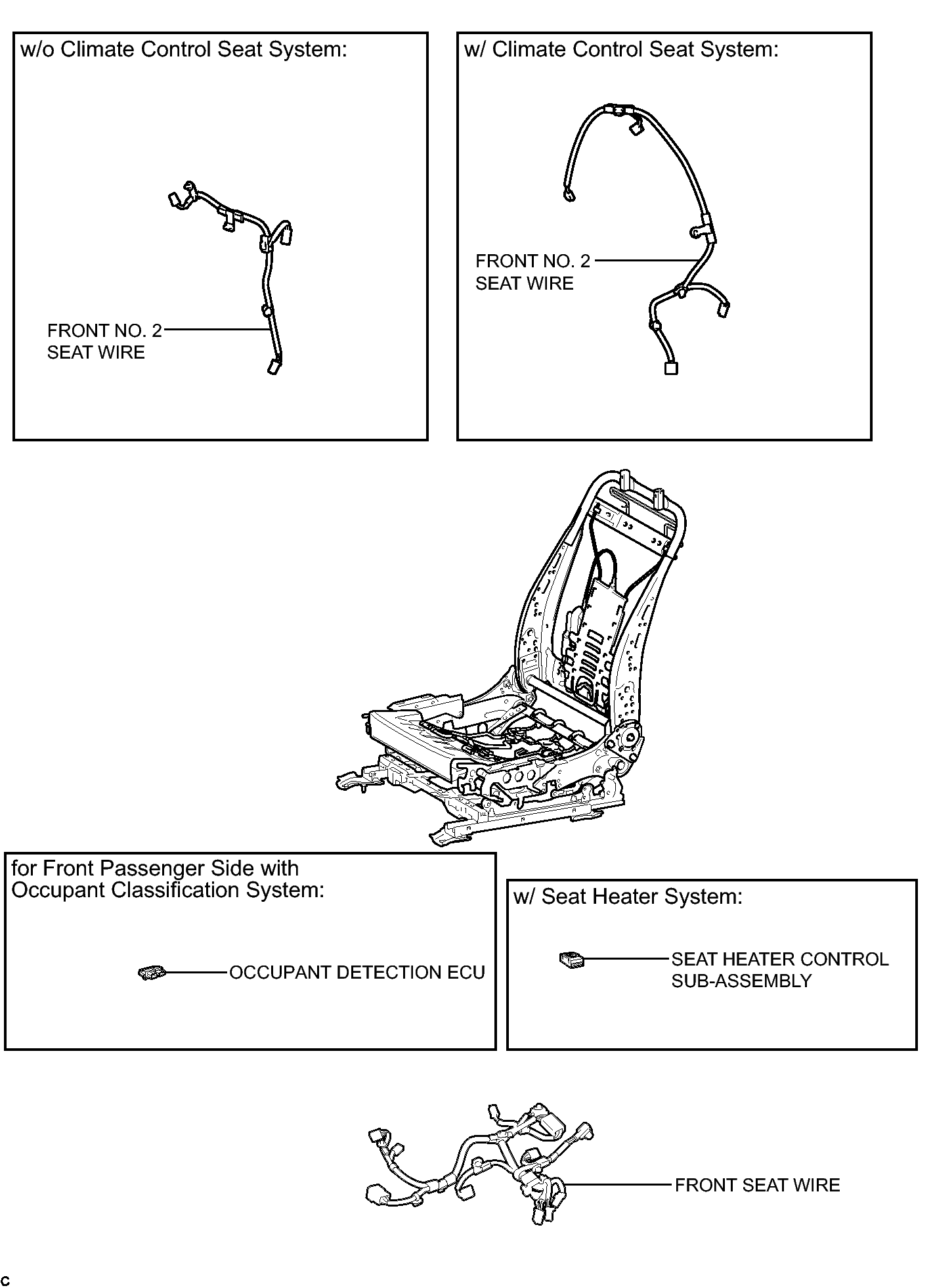

Fig 1: Identifying Front Seat Assembly Replacement Components (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

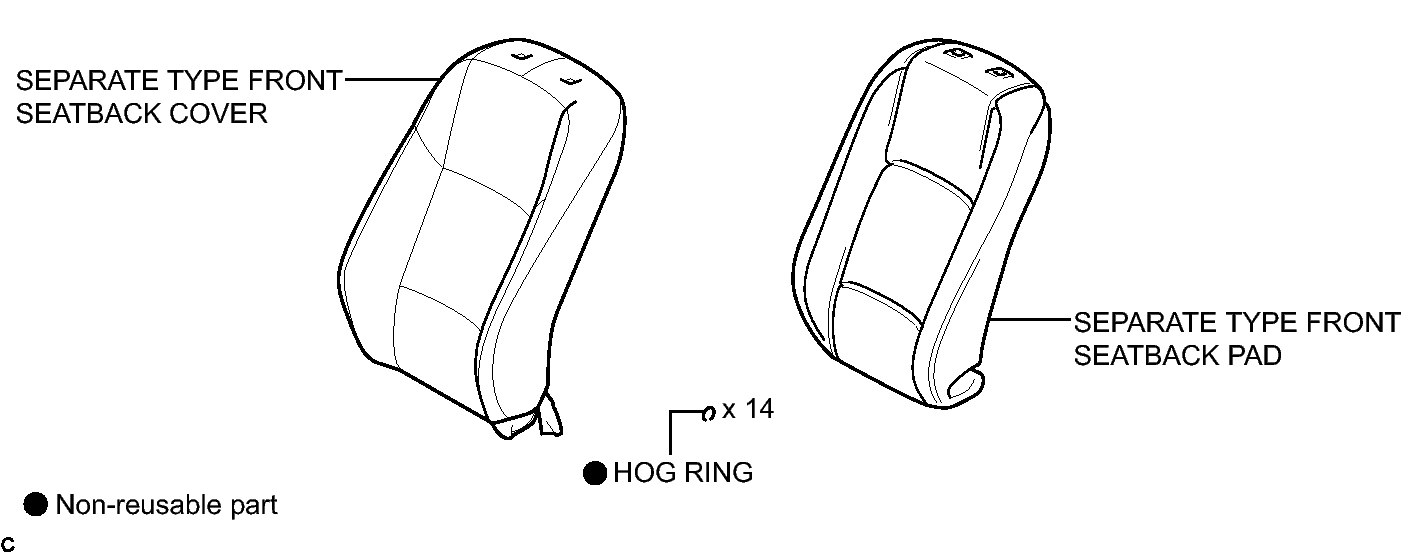

Fig 1: Identifying Front Seat Assembly Replacement Components (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Seat Assembly Replacement Components (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Seat Assembly Replacement Components (11 Of 15)

Fig 1: Identifying Front Seat Assembly Replacement Components (12 Of 15)

Fig 1: Identifying Front Seat Assembly Replacement Components (13 Of 15)

Fig 1: Identifying Front Seat Assembly Replacement Components (14 Of 15)

Fig 1: Identifying Front Seat Assembly Replacement Components With Torque Specifications (15 Of 15)
