Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

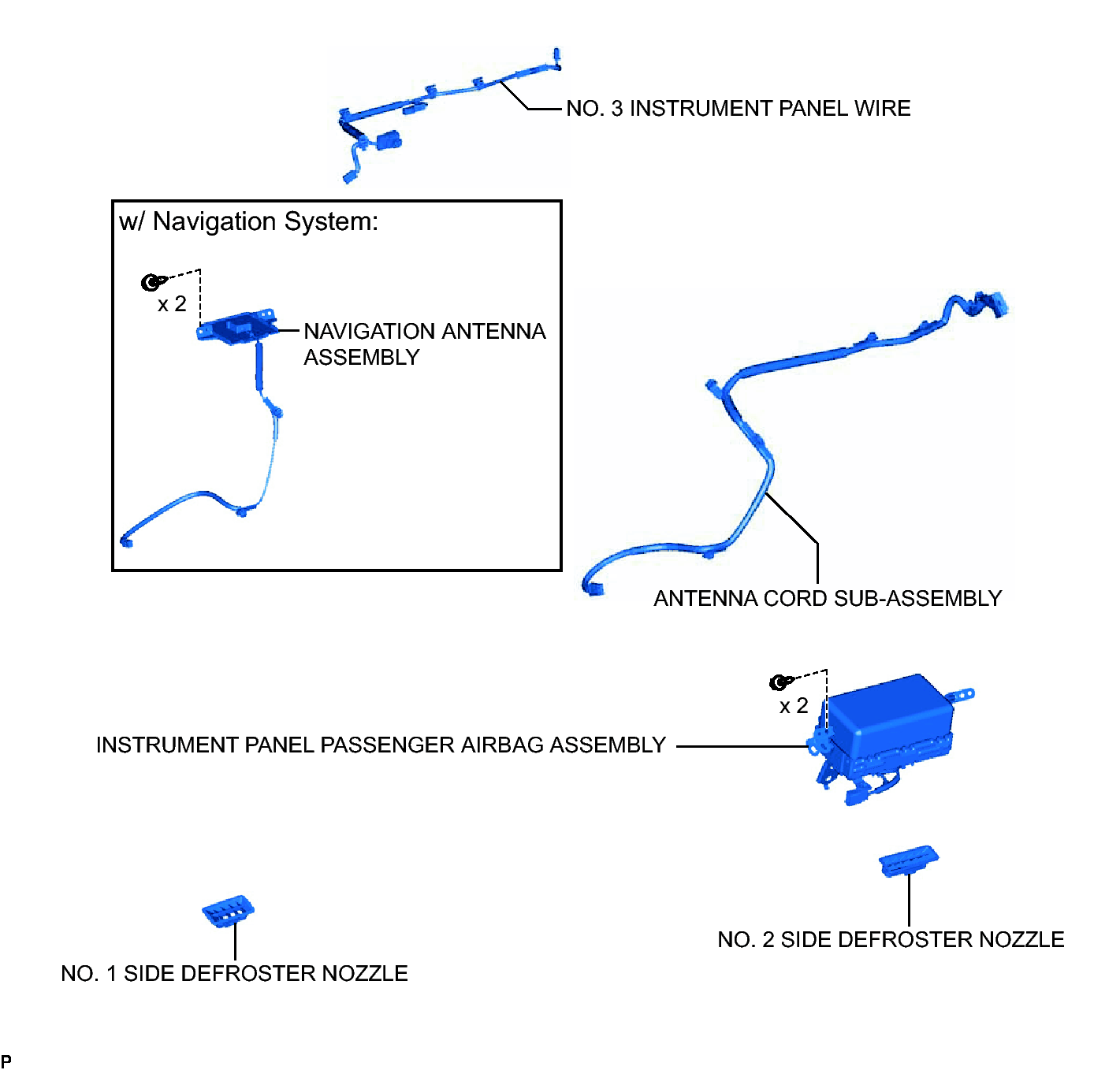

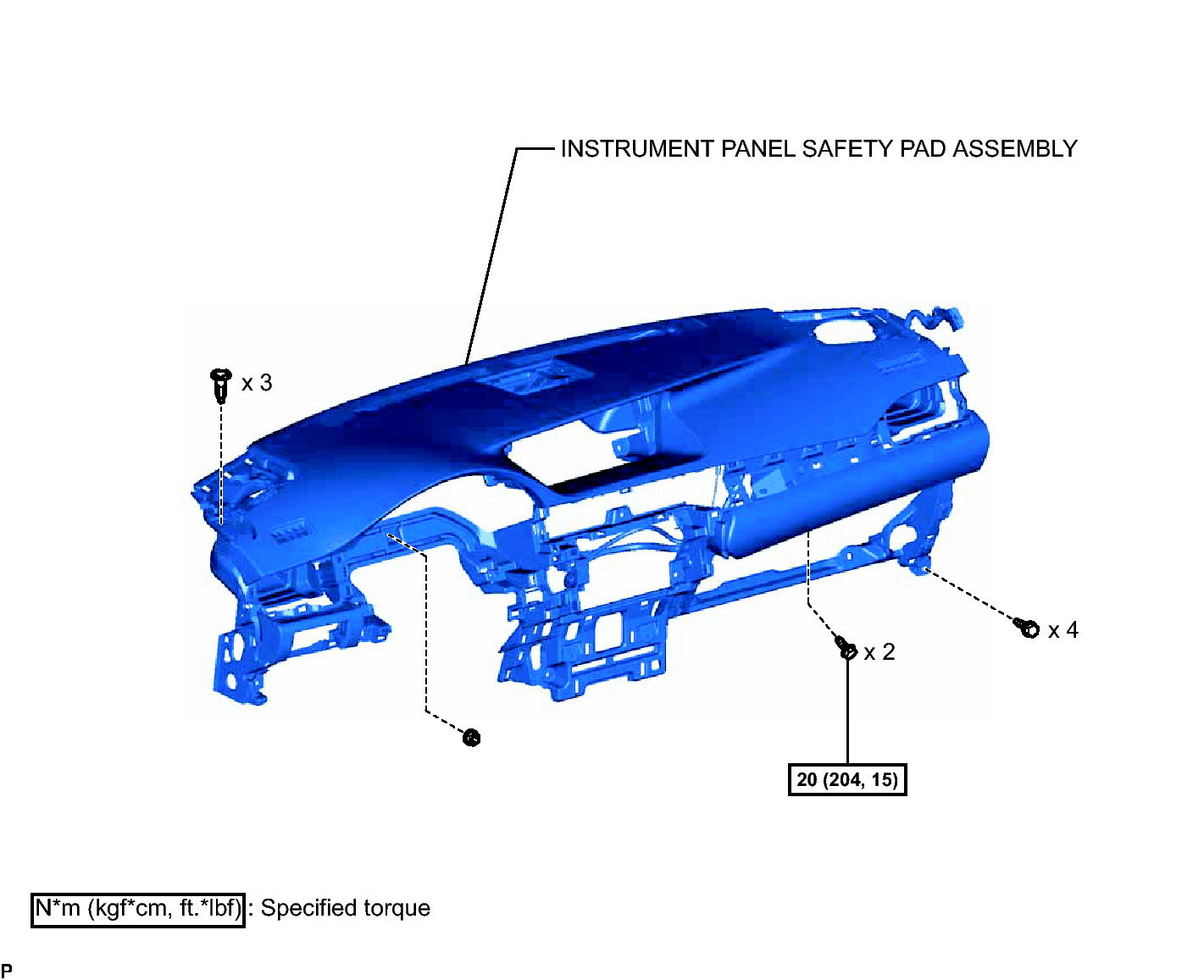

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

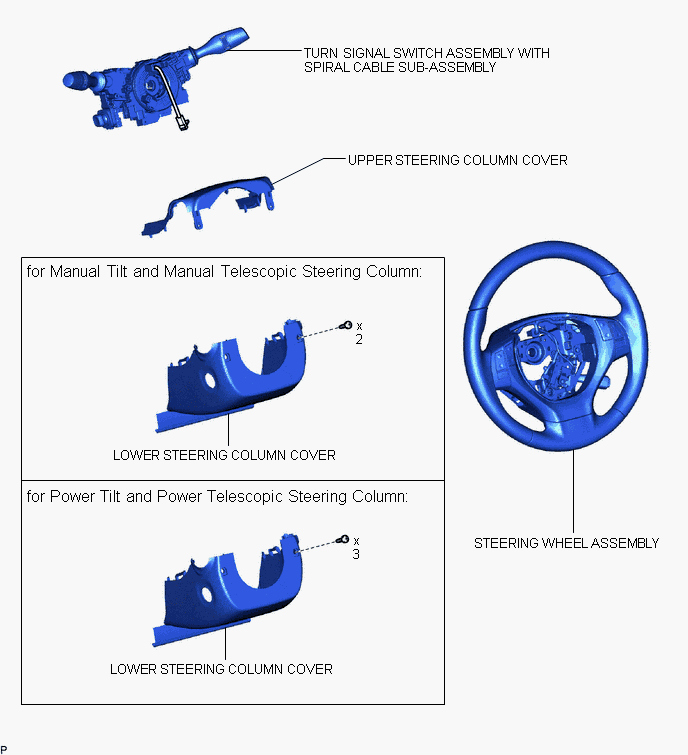

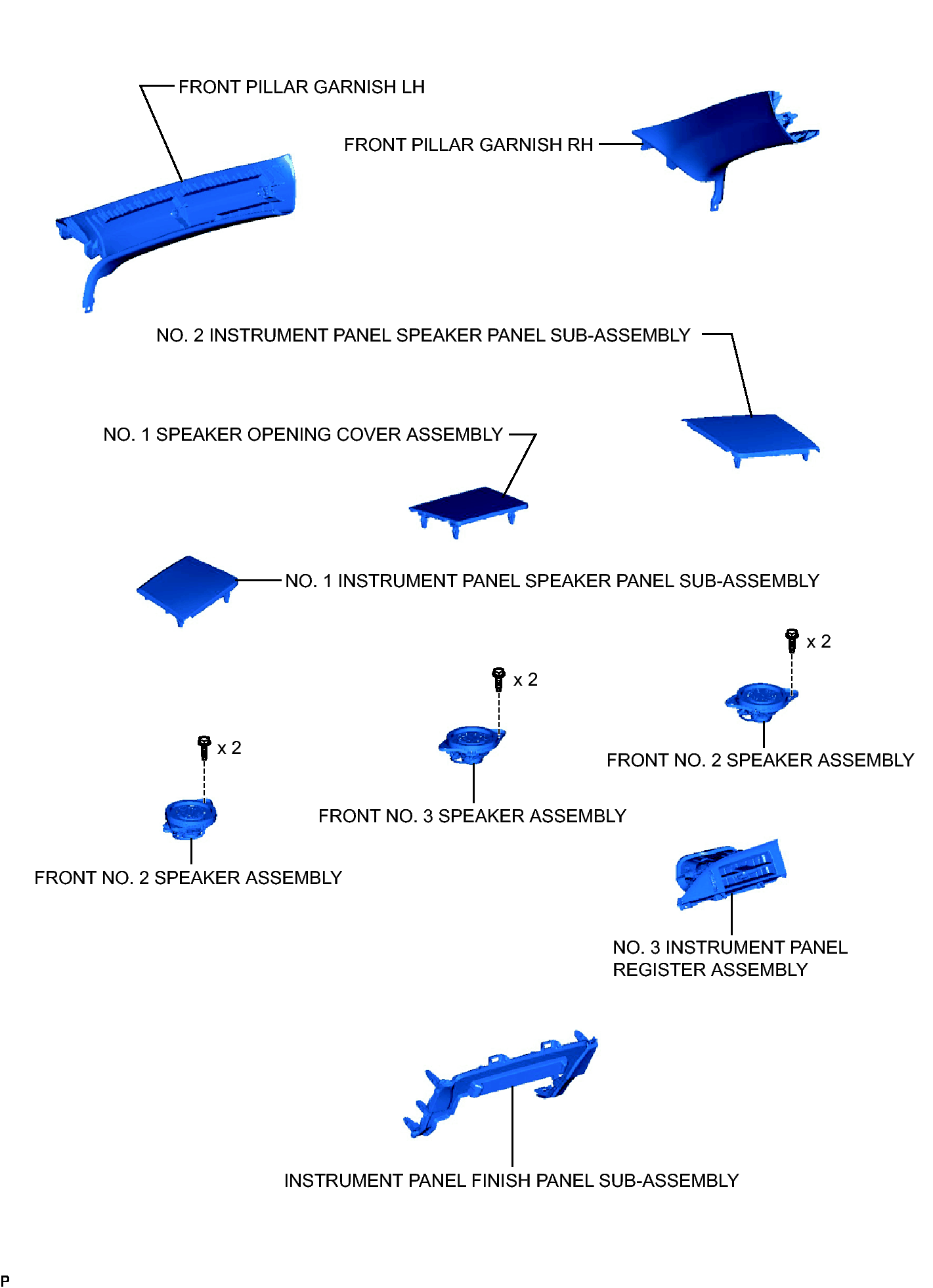

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

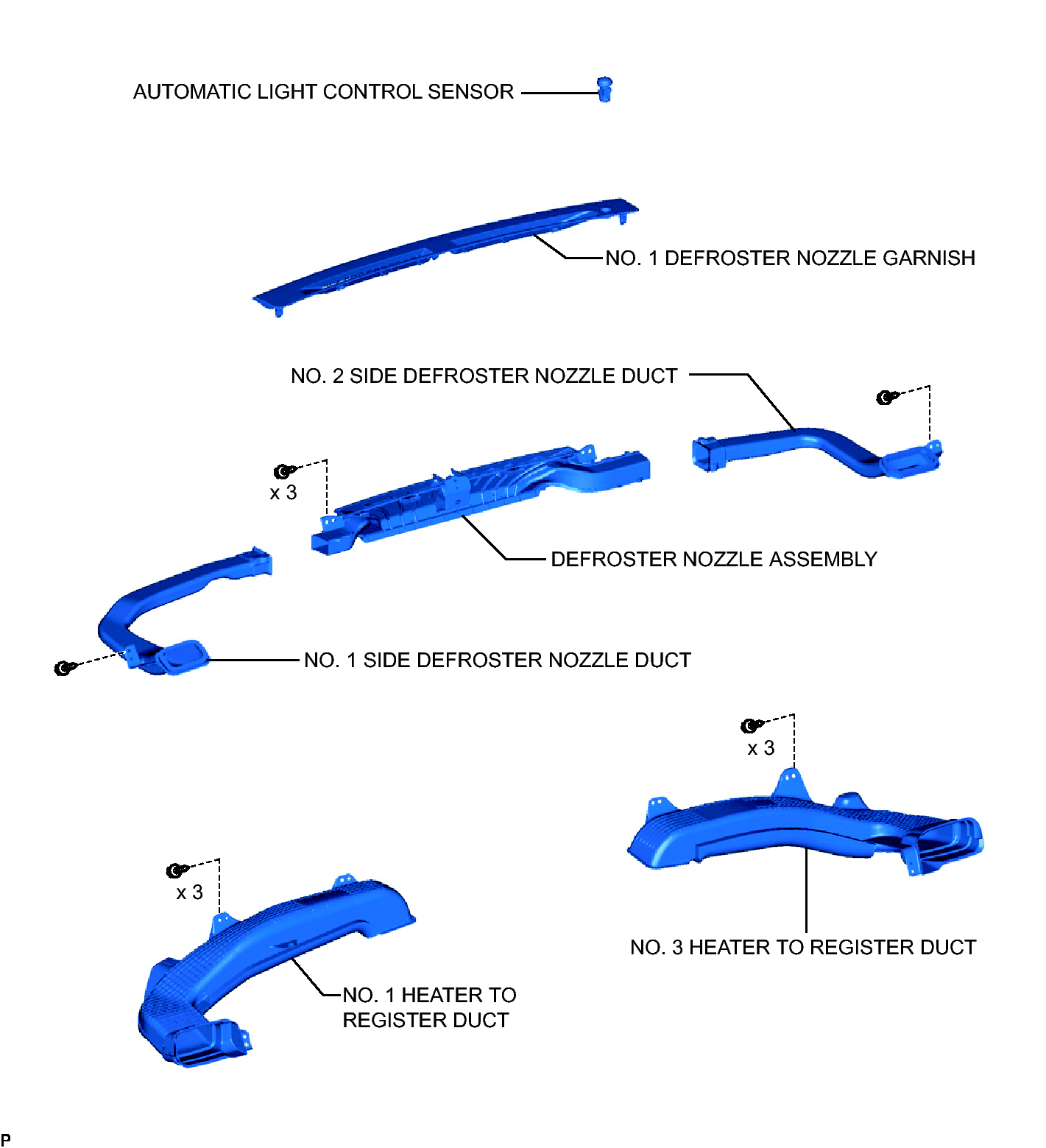

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

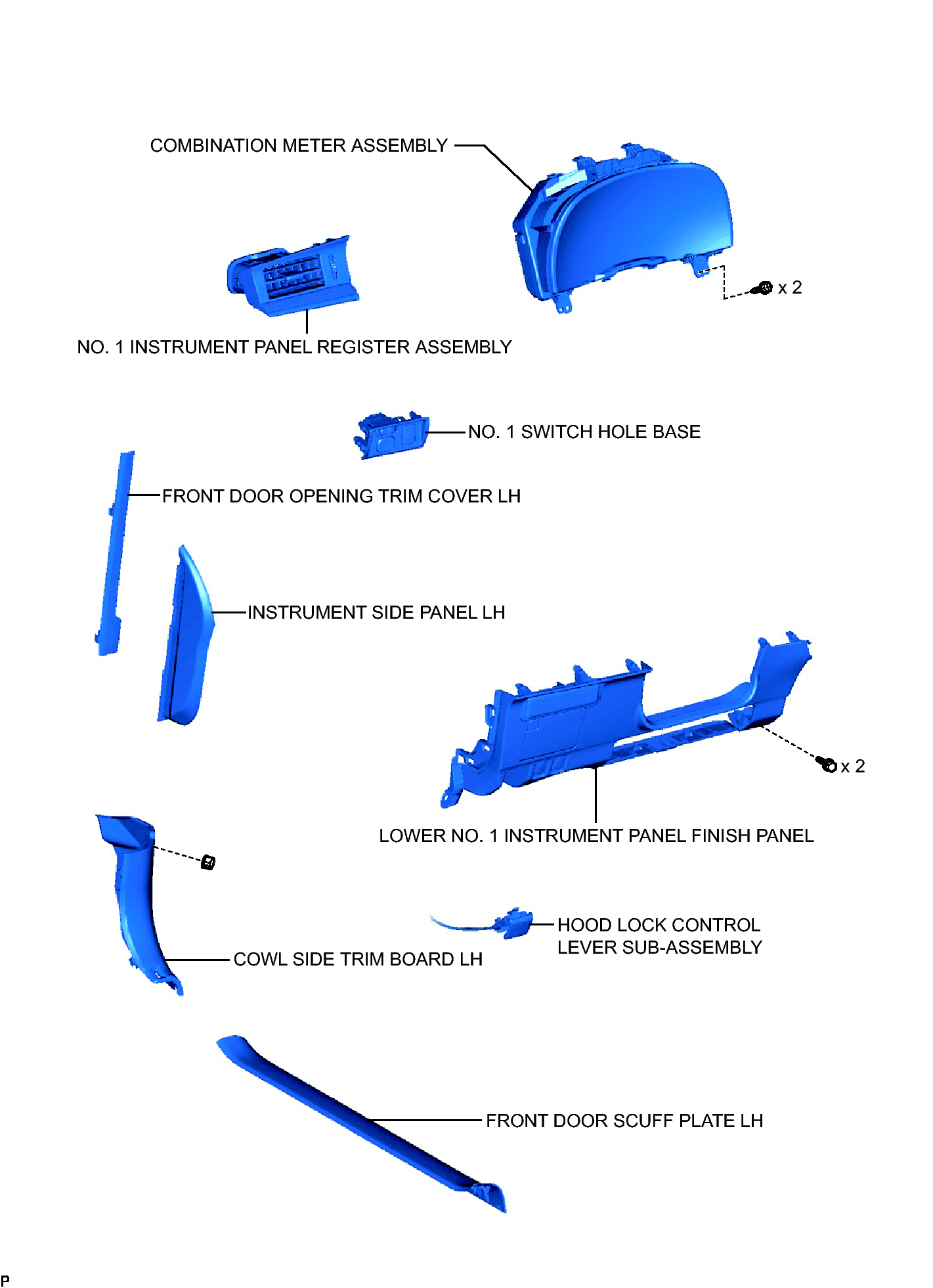

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

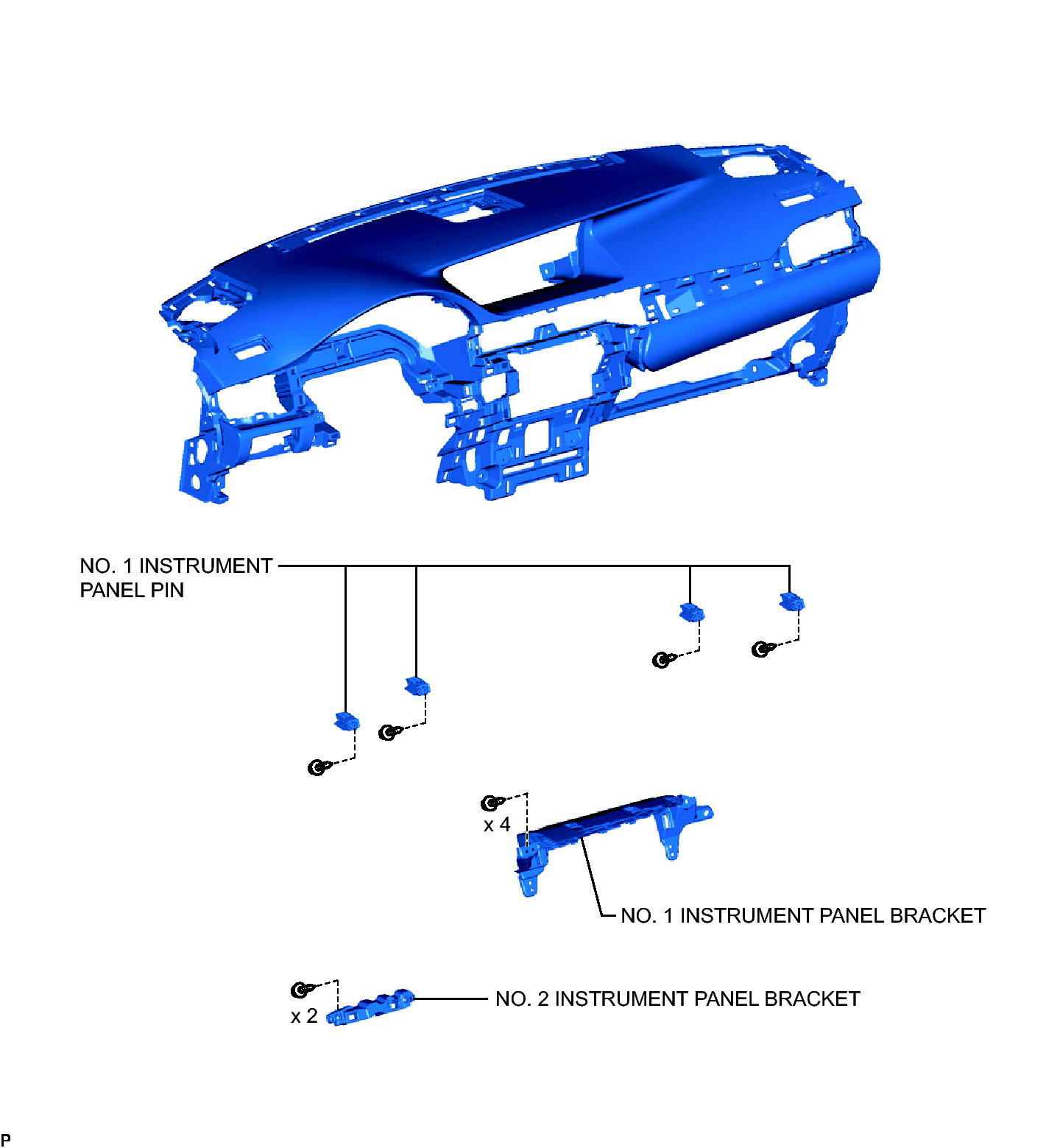

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

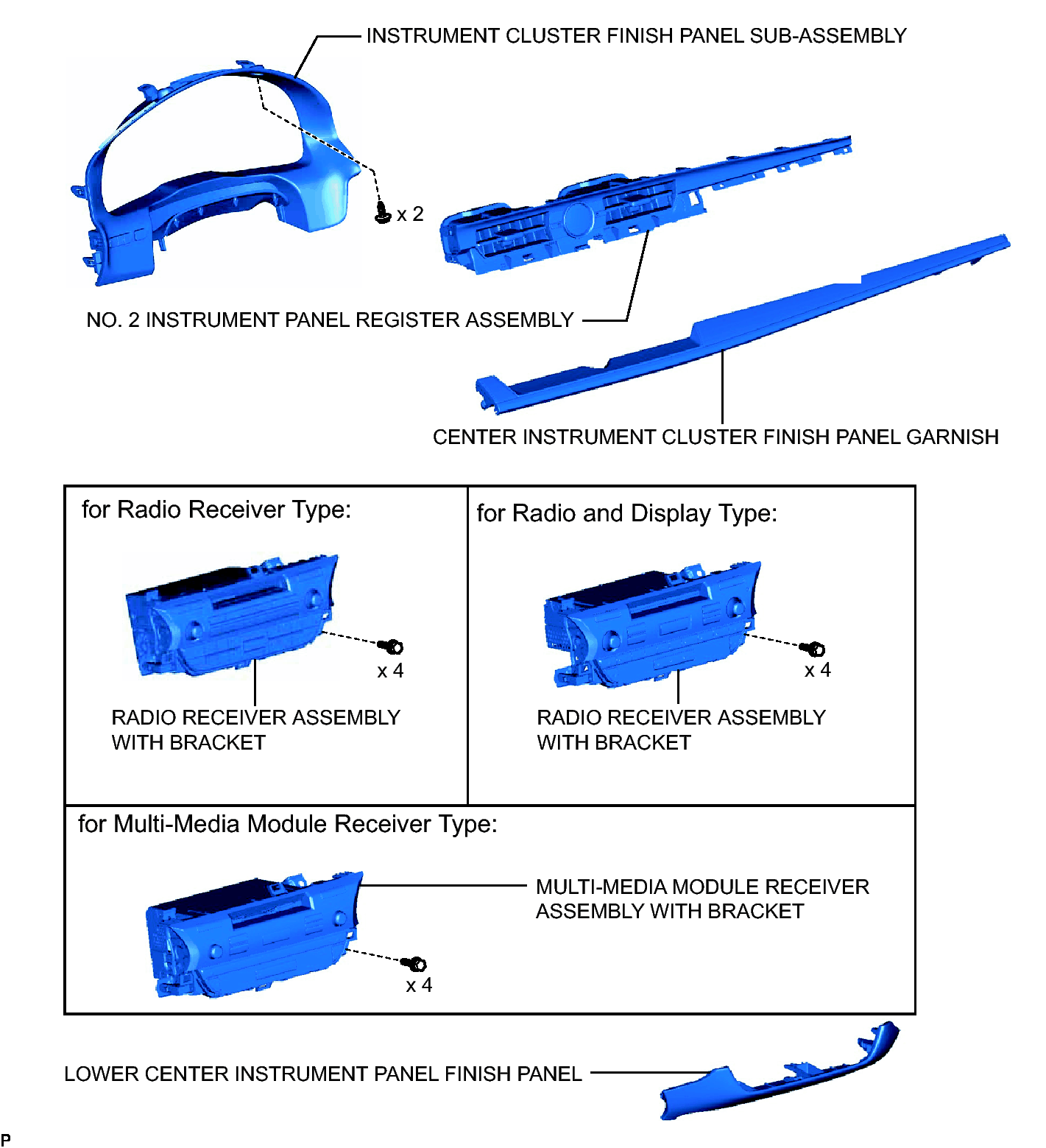

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

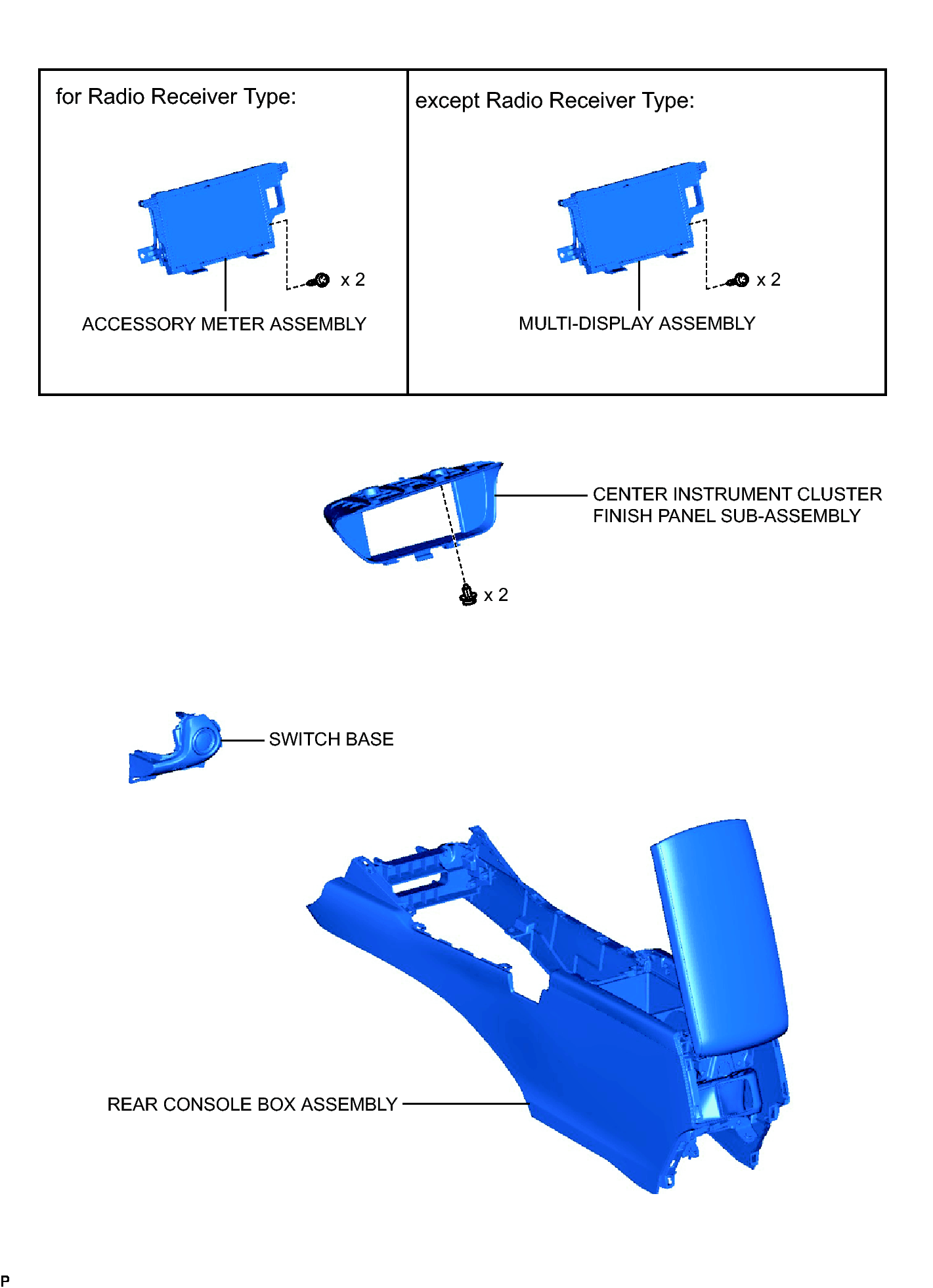

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

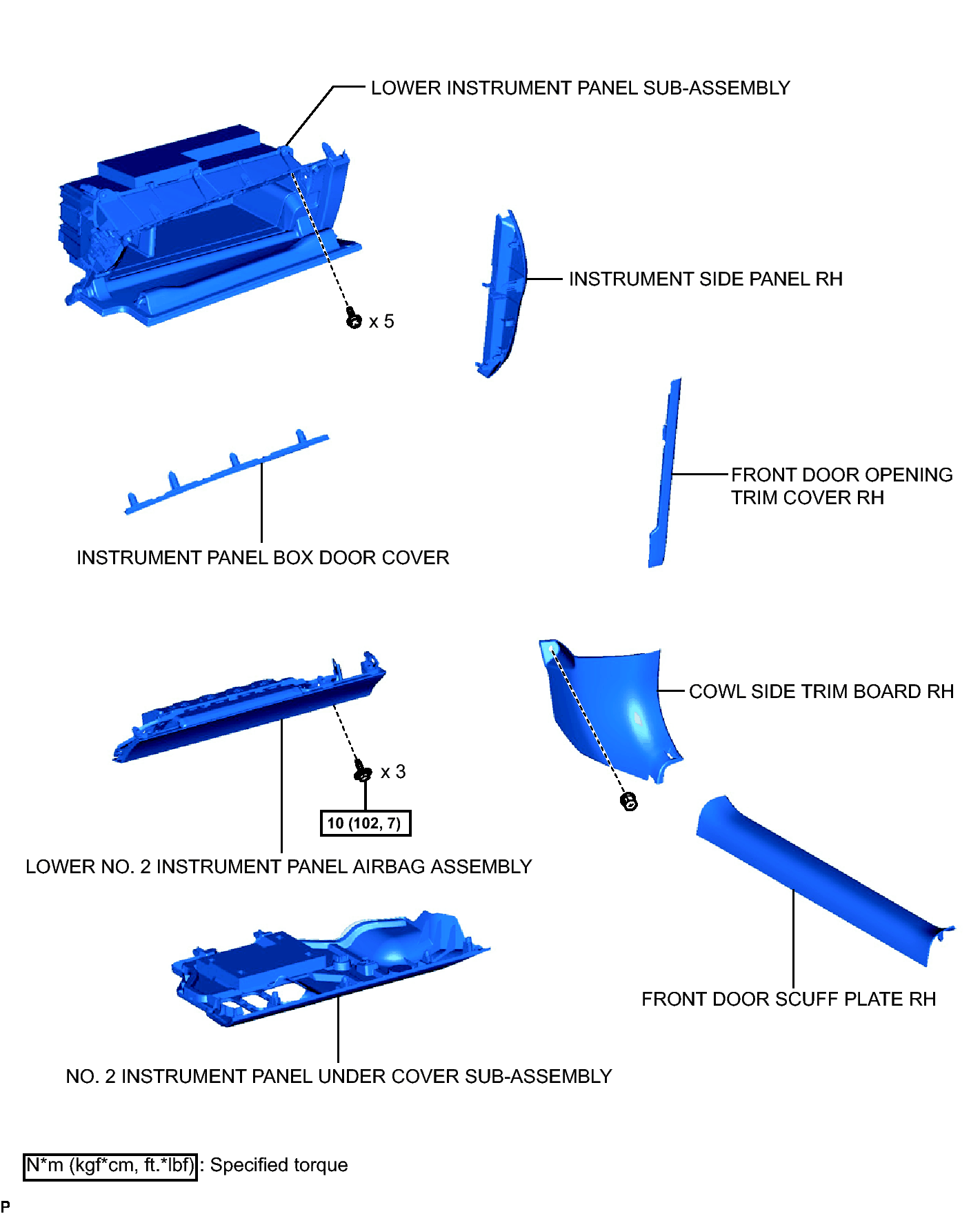

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (8 Of 11)

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (9 Of 11)

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (10 Of 11)

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (11 Of 11)
