Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE FLOOR CARPET BRACKET LH . Refer to REMOVAL [08/2013 - ] - Step 27
REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET
1. Remove the screw and No. 1 console box mounting bracket from the lower shift lever assembly.

  Fig 1: Identifying No. 1 Console Box Mounting Bracket Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 CONSOLE BOX DUCT . Refer to REMOVAL [08/2013 - ] - Step 33
REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 2
REMOVE LOWER SHIFT LEVER ASSEMBLY
1. Move the shift lever to N.
2. Disconnect the end of the transmission control cable assembly from the lower shift lever assembly.

  Fig 2: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and disconnect the transmission control cable assembly from the lower shift lever assembly.
4. Disconnect the 4 clamps and 2 connectors from the lower shift lever assembly.

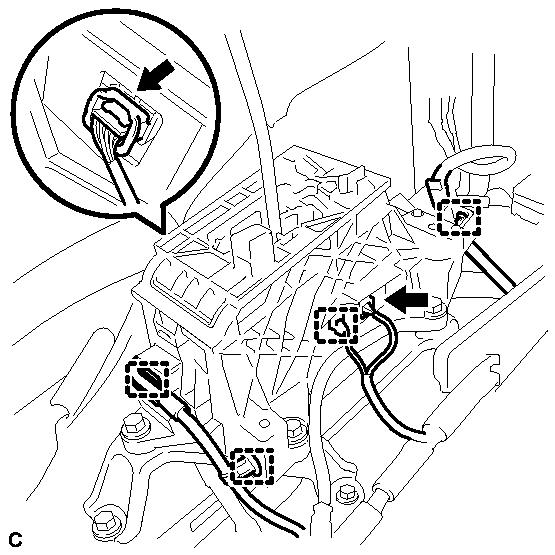

  Fig 3: Identifying Lower Shift Lever Assembly Clamps And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 4 bolts and lower shift lever assembly from the shift lever support.

  Fig 4: Identifying Lower Shift Lever Assembly Blots
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER SUPPORT
1. Remove the 4 bolts and shift lever support from the body.

  Fig 5: Identifying Shift Lever Support Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
