Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

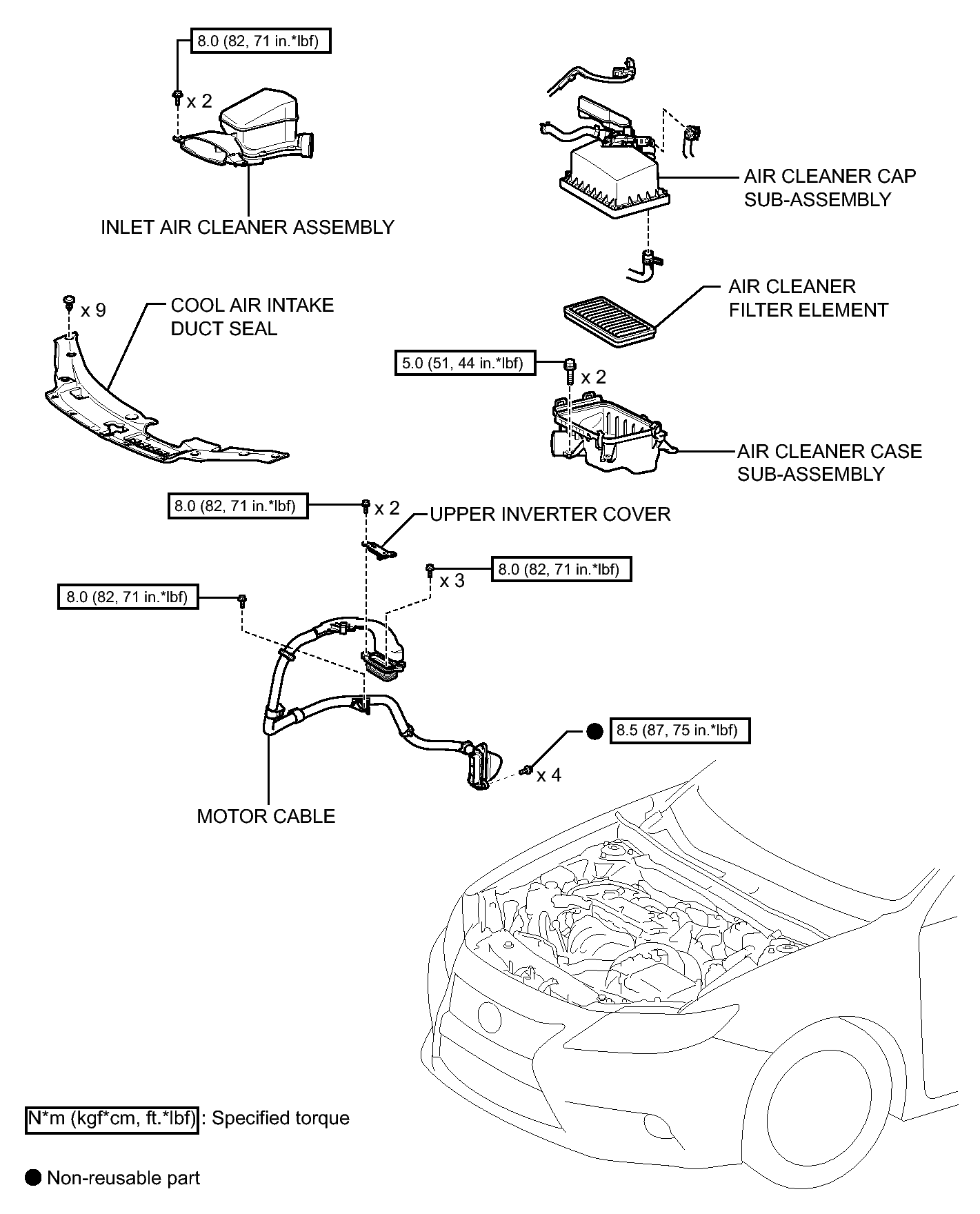

Fig 1: Identifying Motor Cable Replacement Components With Torque Specifications
GTY407973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
