Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE REAR DOOR SCUFF PLATE LH  . Refer to REMOVAL [08/2013 - ] - Step 8
  3. REMOVE REAR DOOR SCUFF PLATE RH  . Refer to REMOVAL [08/2013 - ] - Step 3
  4. REMOVE REAR SEAT SIDE GARNISH LH  . Refer to REMOVAL [08/2013 - ] - Step 18
  5. REMOVE REAR SEAT SIDE GARNISH RH  . Refer to REMOVAL [08/2013 - ] - Step 5
  6. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH  See step  6
  7. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH  See step  7
  8. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH  See step  2
  9. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor of the rear seat inner with center belt assembly LH.

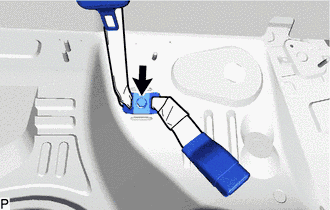

      Fig 1: Identifying Rear Seat Inner With Center Belt Assembly LH Bolt
      GTY409904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH  See step  3
  11. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Remove the bolt and rear seat inner with center belt assembly RH.

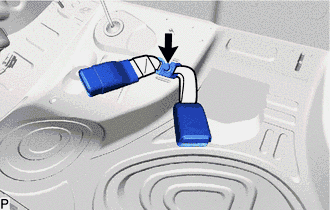

      Fig 2: Identifying Rear Seat Inner With Center Belt Assembly RH Bolt
      GTY409905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH  . Refer to REMOVAL [08/2013 - ] - Step 19
  13. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH  . Refer to REMOVAL [08/2013 - ] - Step 7
  14. REMOVE CENTER STOP LIGHT SET (w/o Rear Sunshade)  . Refer to REMOVAL [08/2013 - ] - Step 1
  15. REMOVE REAR SEAT SHOULDER BELT HOLE COVER  See step  13
  16. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER  See step  14
  17. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)  See step  15
  18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)  See step  16
  19. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Remove the 2 bolts.

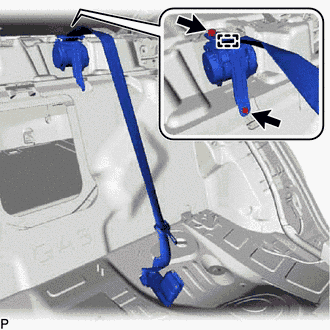

      Fig 3: Identifying Rear Seat Inner With Center Belt Assembly LH Bolts
      GTY409903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the rear seat inner with center belt assembly LH.
