Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

REMOVE FRONT SEAT ASSEMBLY
Refer to REMOVAL [08/2013 - ]
DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/o Foot light) . Refer to DISASSEMBLY [08/2013 - ] - Step 3
DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Foot light) . Refer to DISASSEMBLY [08/2013 - ] - Step 4
REMOVE FRONT SEAT INNER CUSHION SHIELD . Refer to DISASSEMBLY [08/2013 - ] - Step 6
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)
1. Disengage each clamp under the front seat assembly.
2. Disconnect the connector.

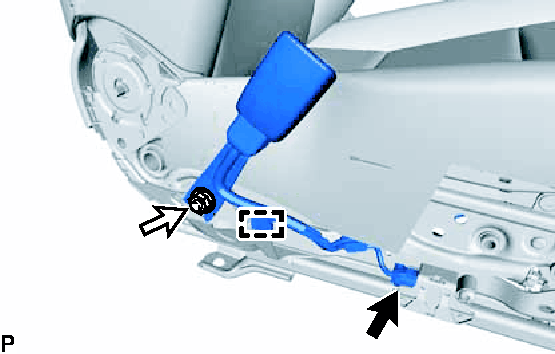

  Fig 1: Identifying Front Seat Inner Belt Assembly (For Driver Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the clamp.
4. Remove the nut and front seat inner belt assembly.
REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)
1. Disengage each clamp under the front seat assembly.
2. Disengage the clamp.

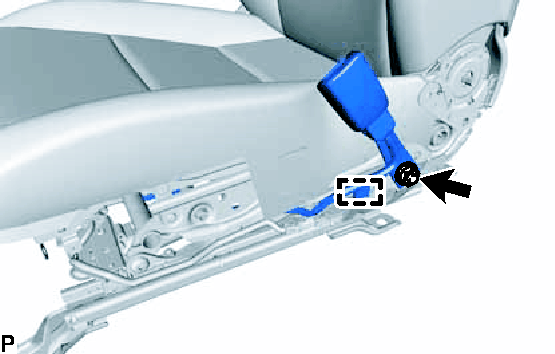

  Fig 2: Identifying Front Seat Inner Belt Assembly (For Front Passenger Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut and front seat inner belt assembly.
