Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Side Airbag Sensor Replacement Components (For Front Side) (1 Of 2)
GTY412782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

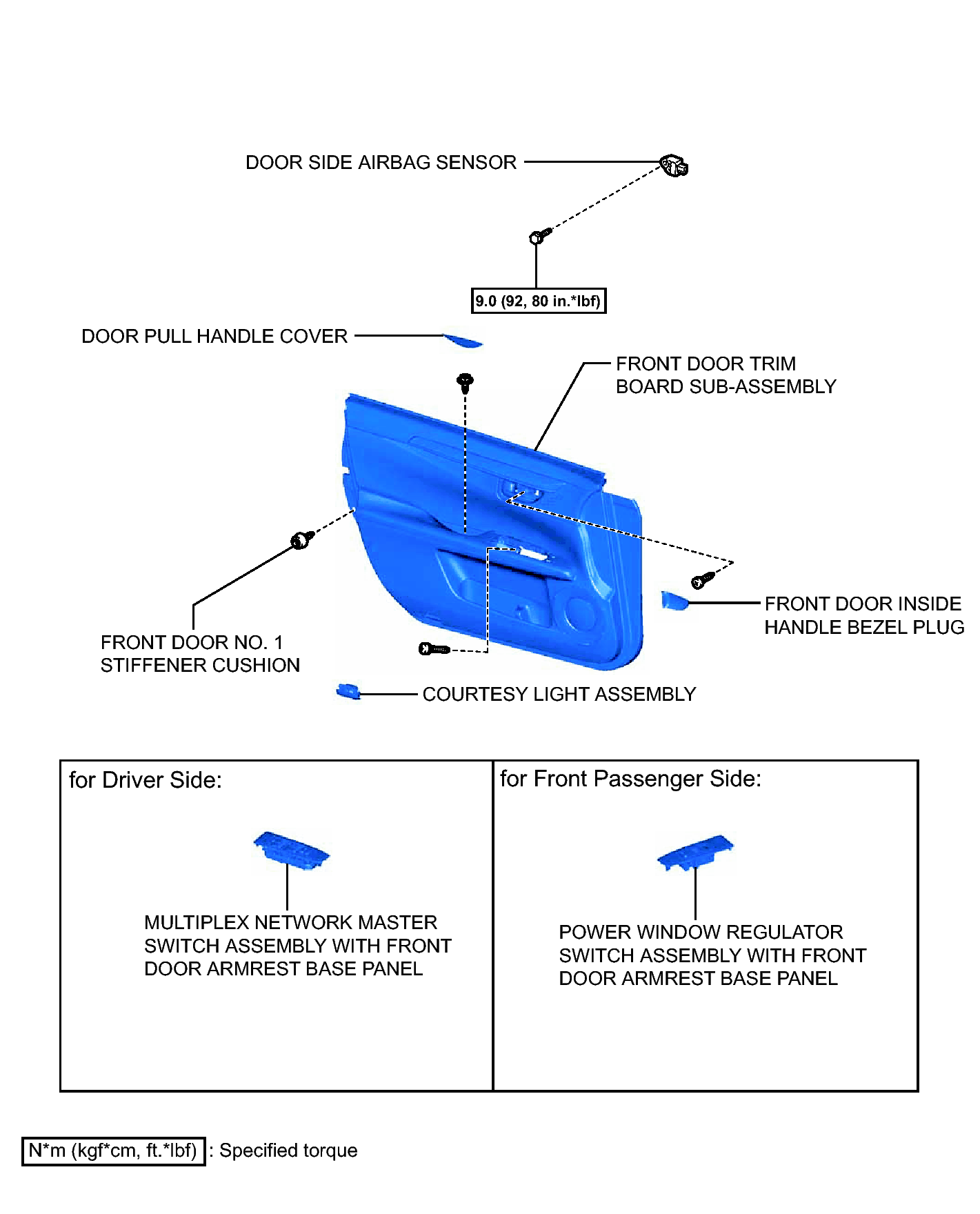

Fig 1: Identifying Side Airbag Sensor Replacement Components With Torque Specifications (For Front Side) (2 Of 2)
GTY400901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
