Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

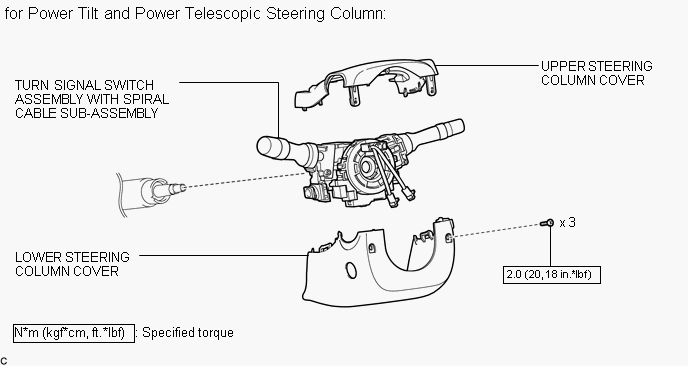

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

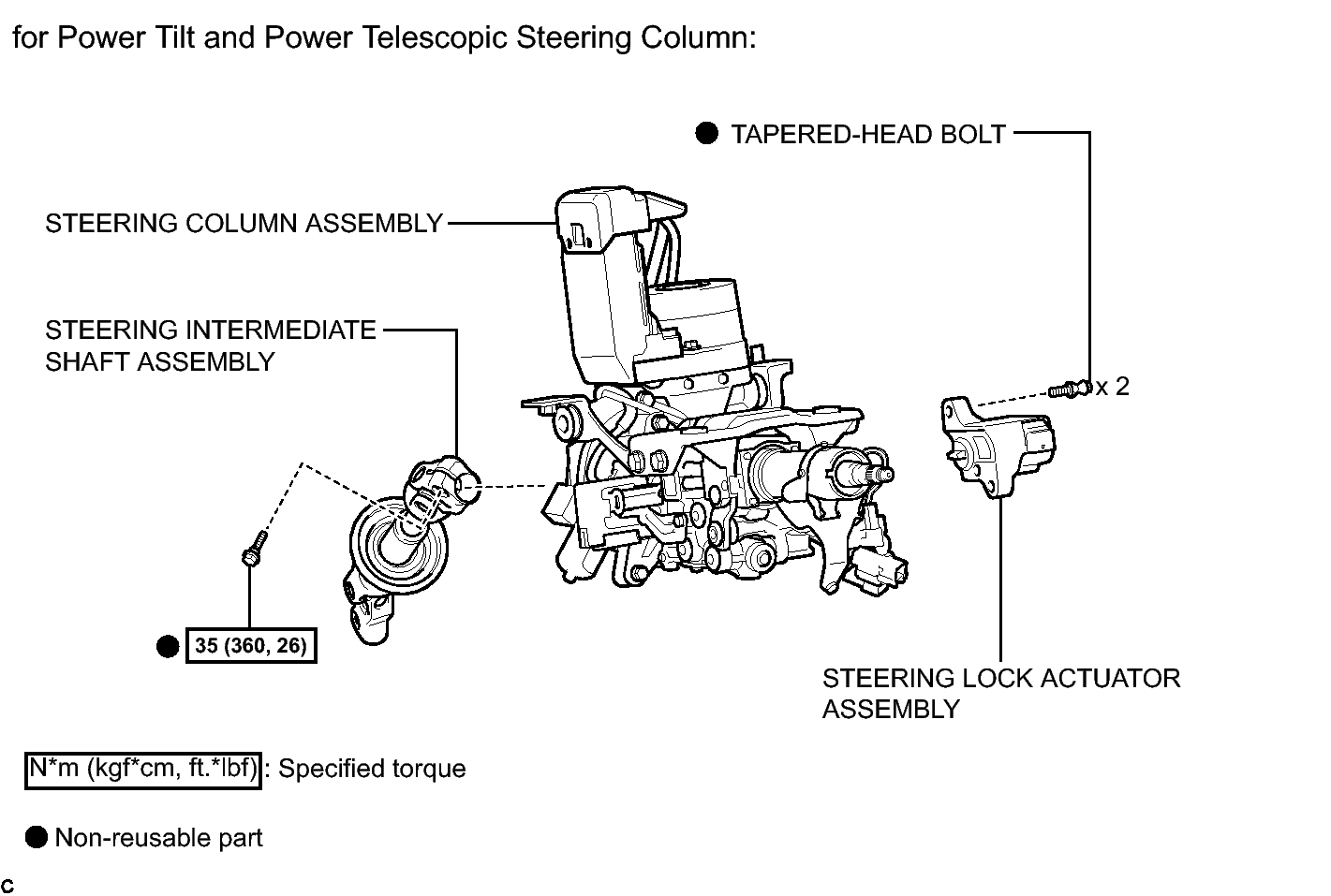

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

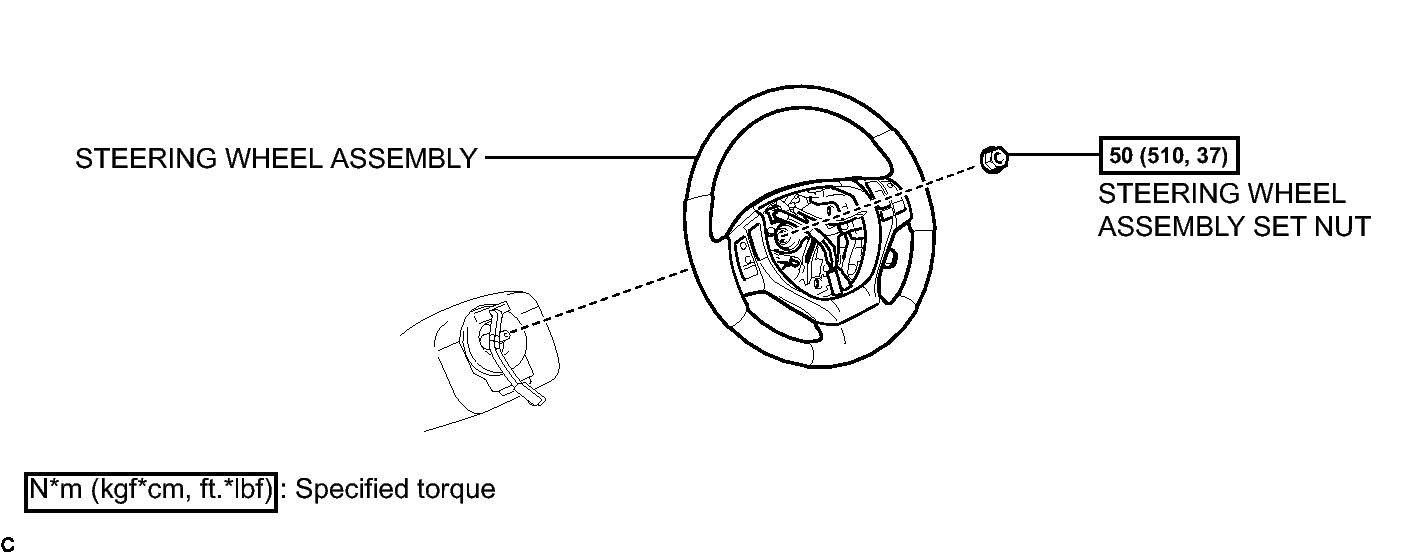

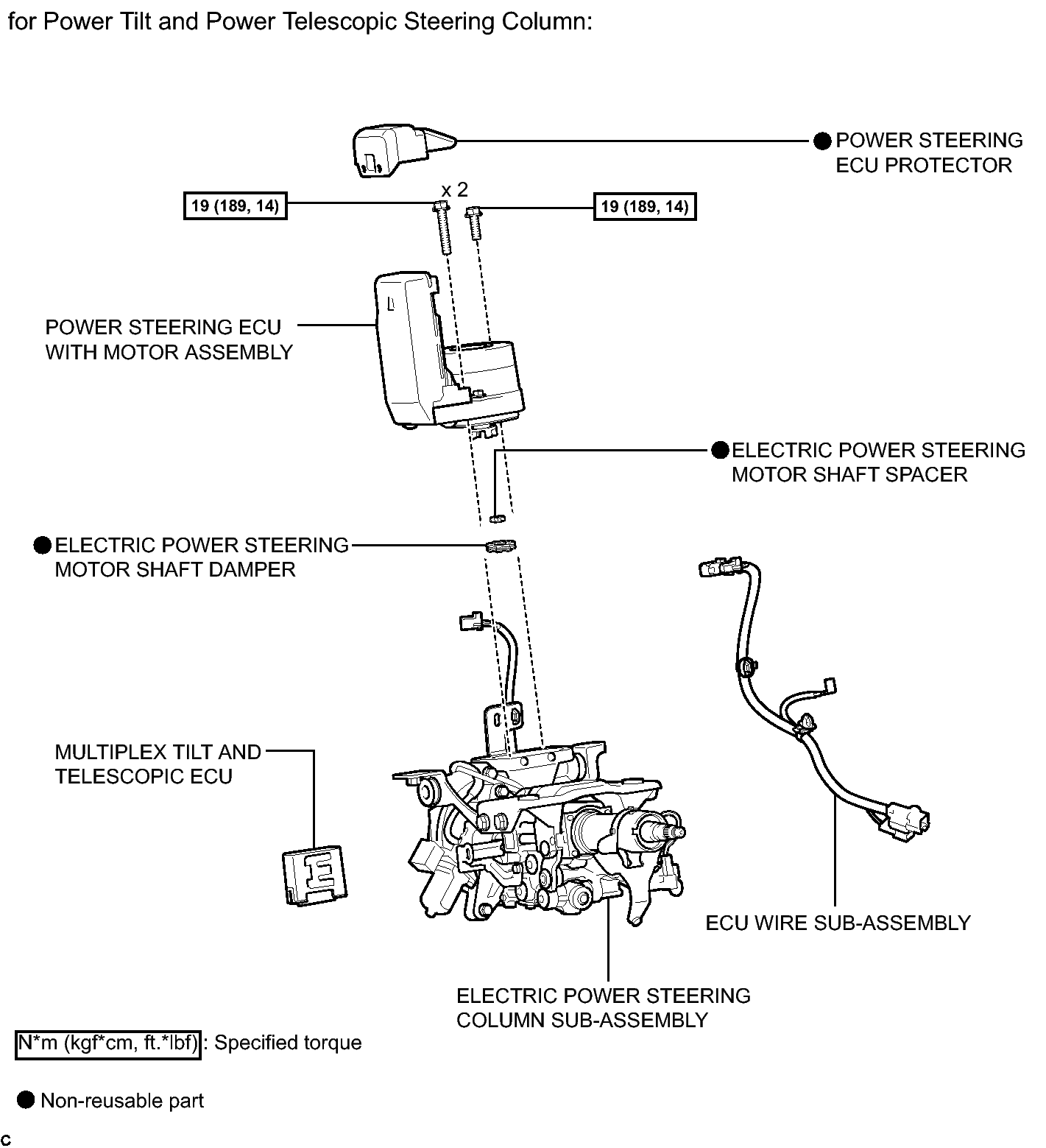

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

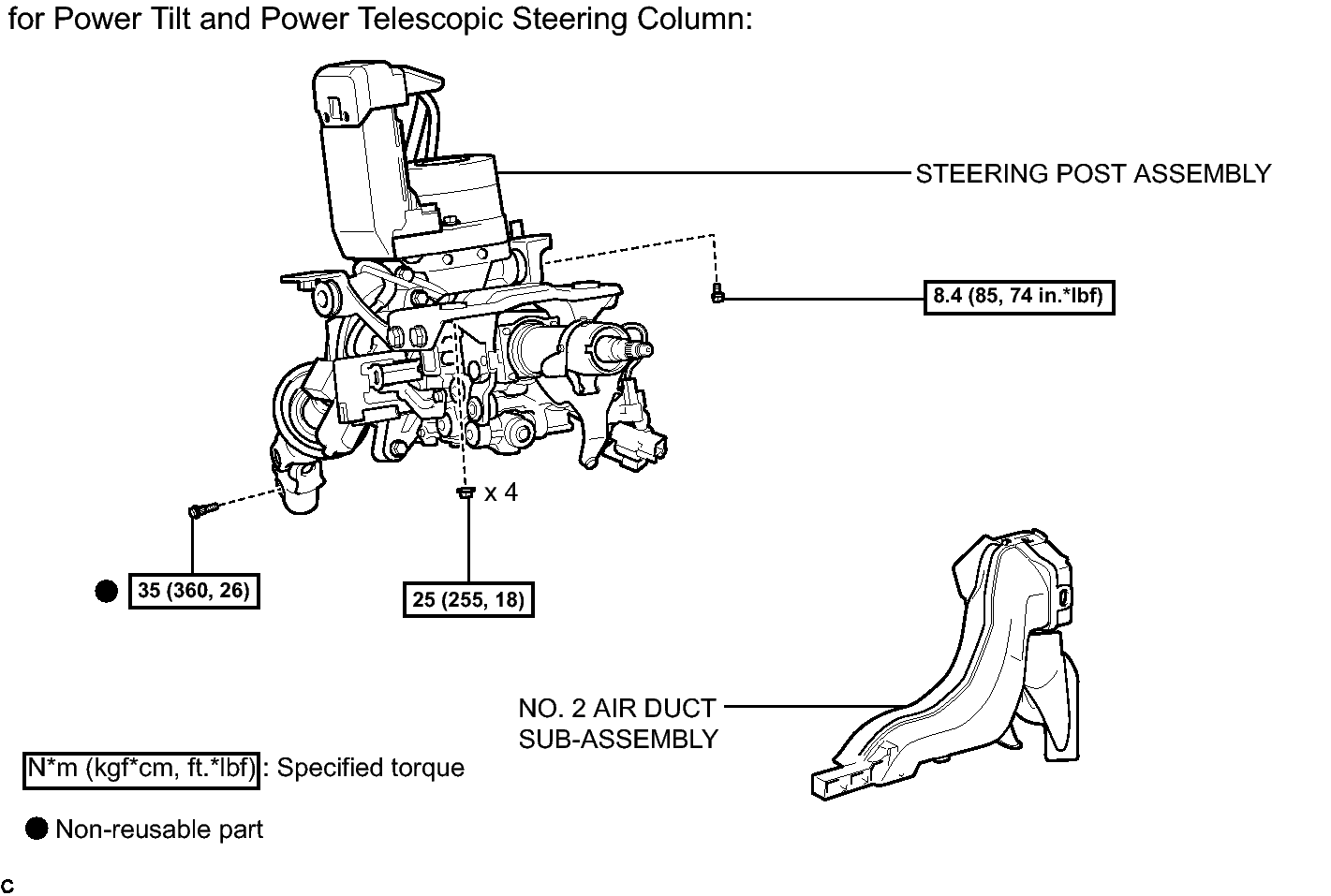

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

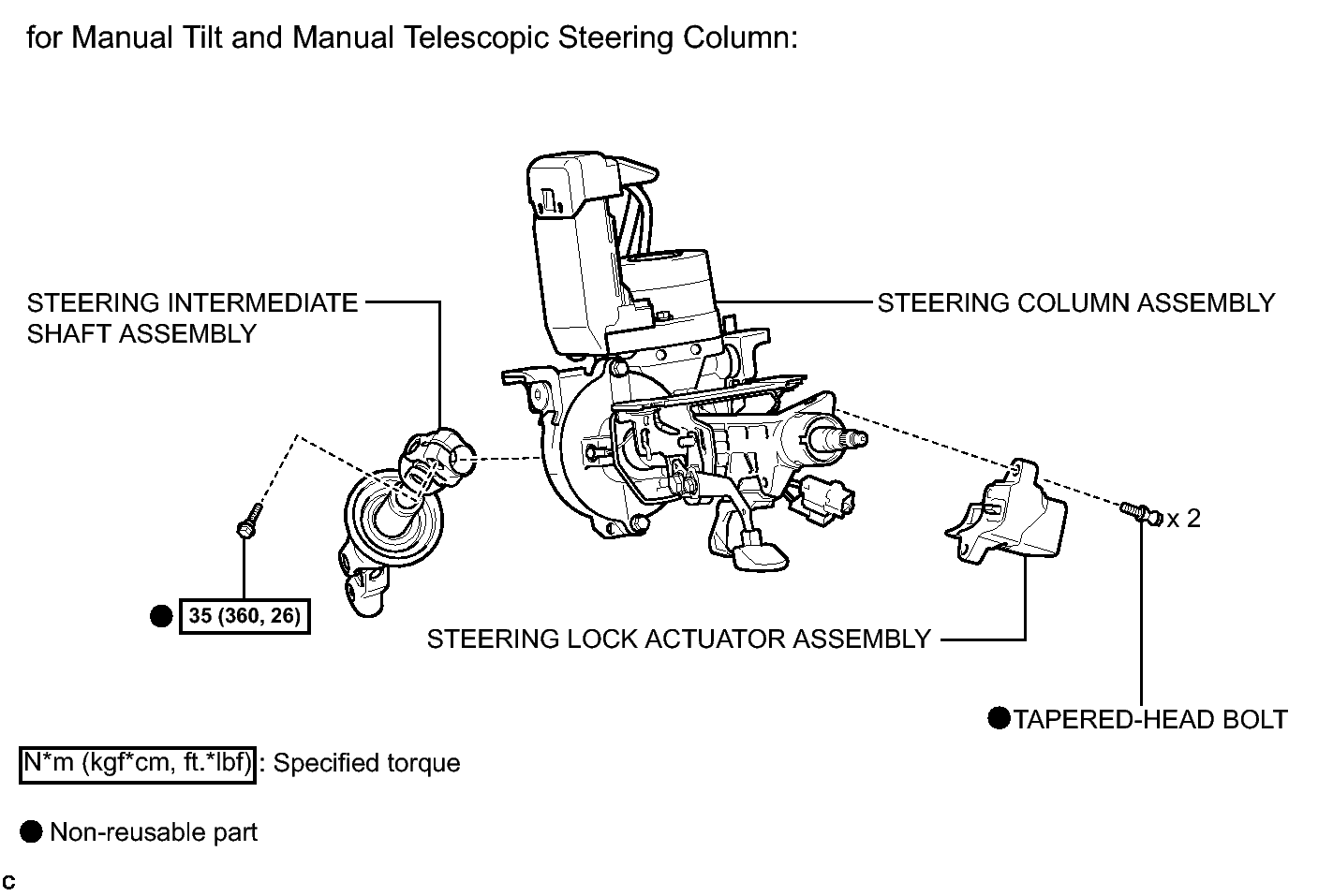

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

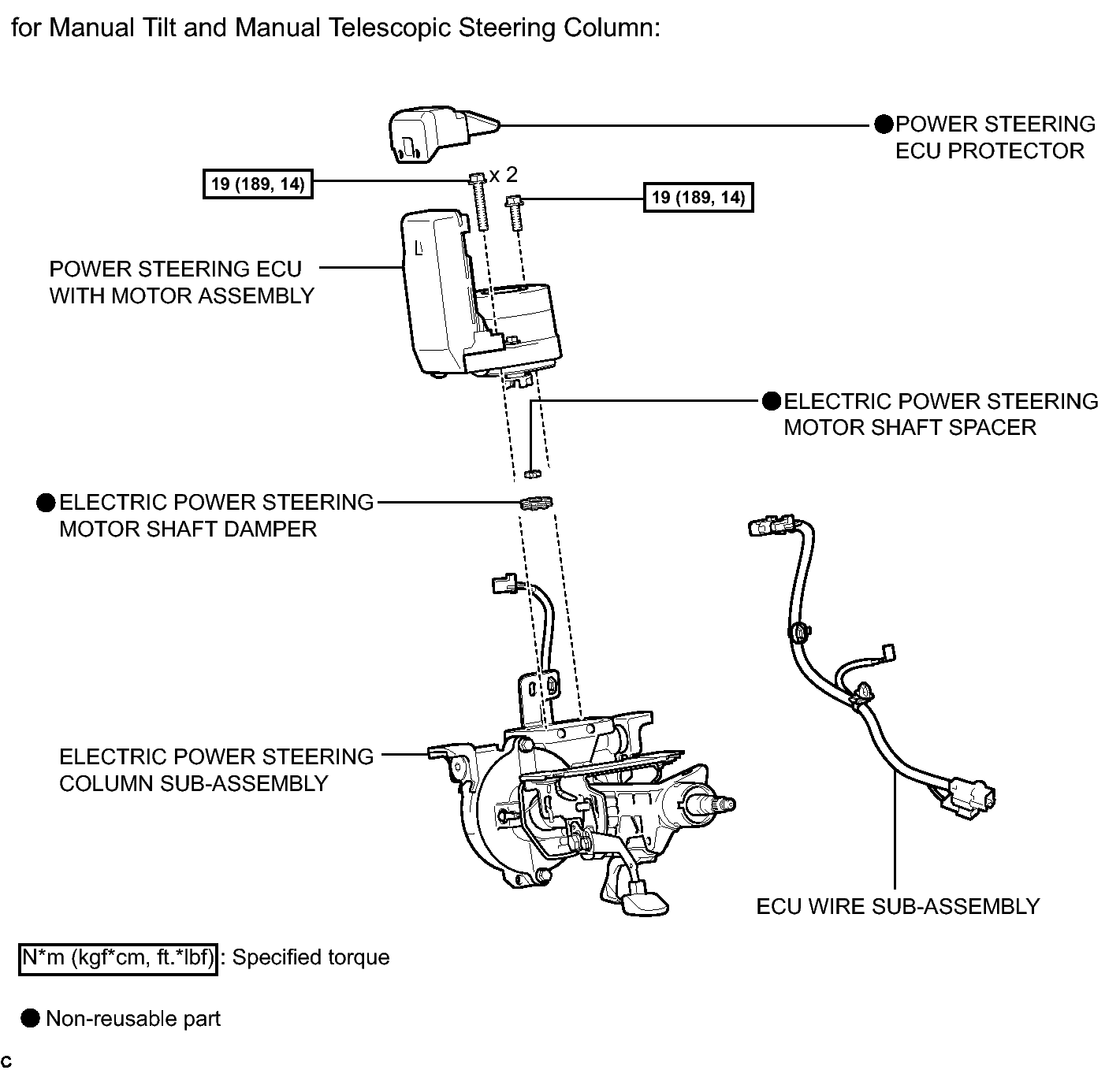

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (6 Of 9)

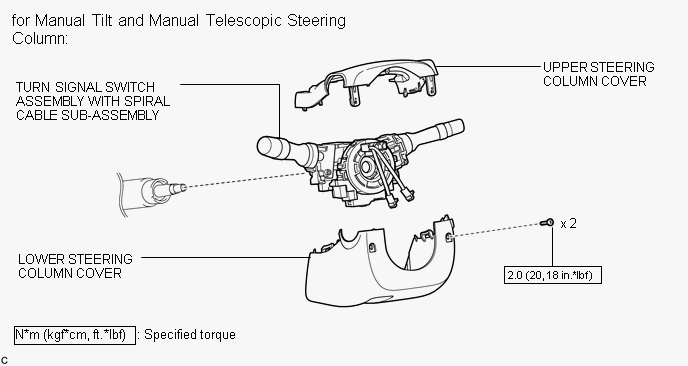

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (7 Of 9)

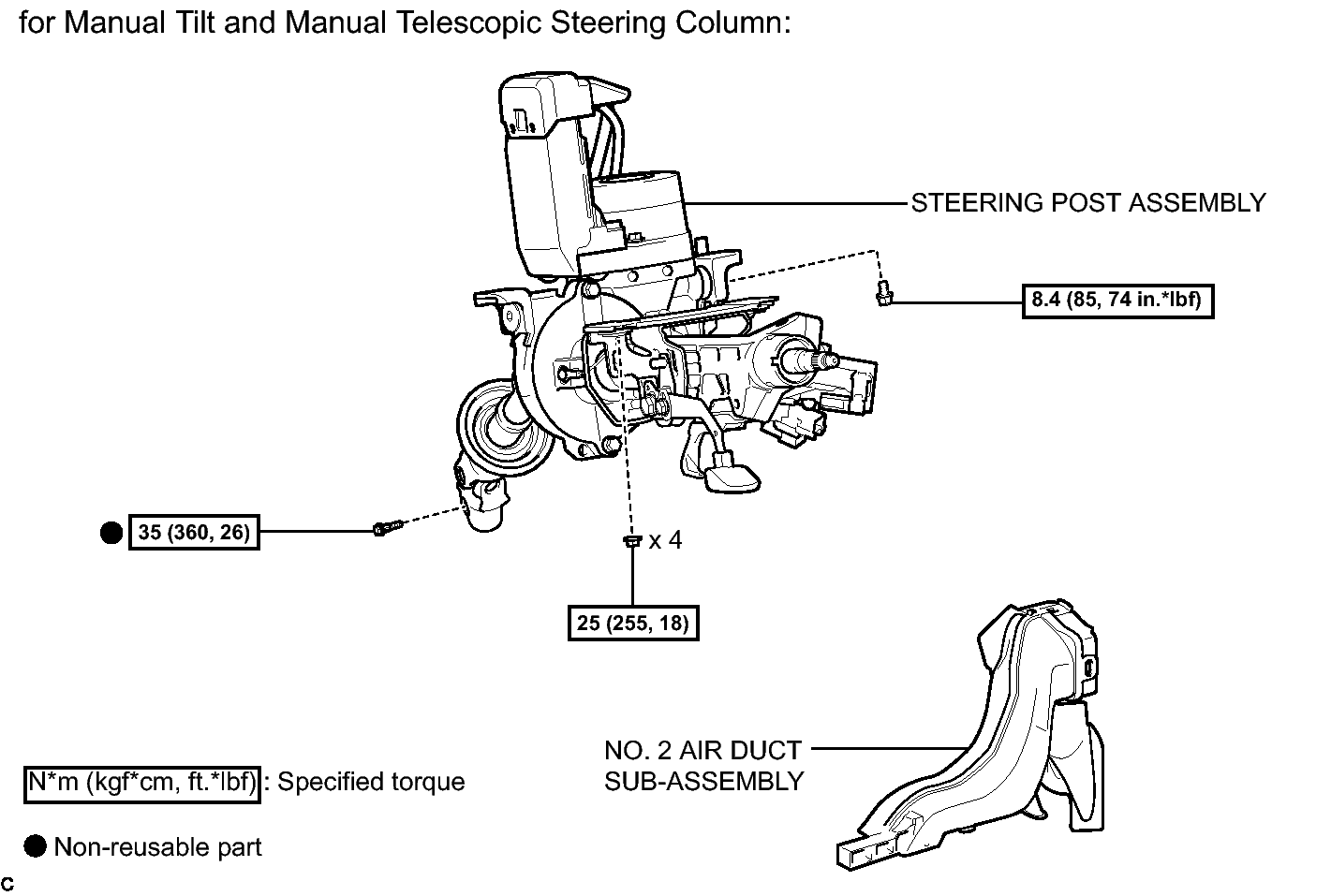

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (8 Of 9)

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (9 Of 9)
