Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

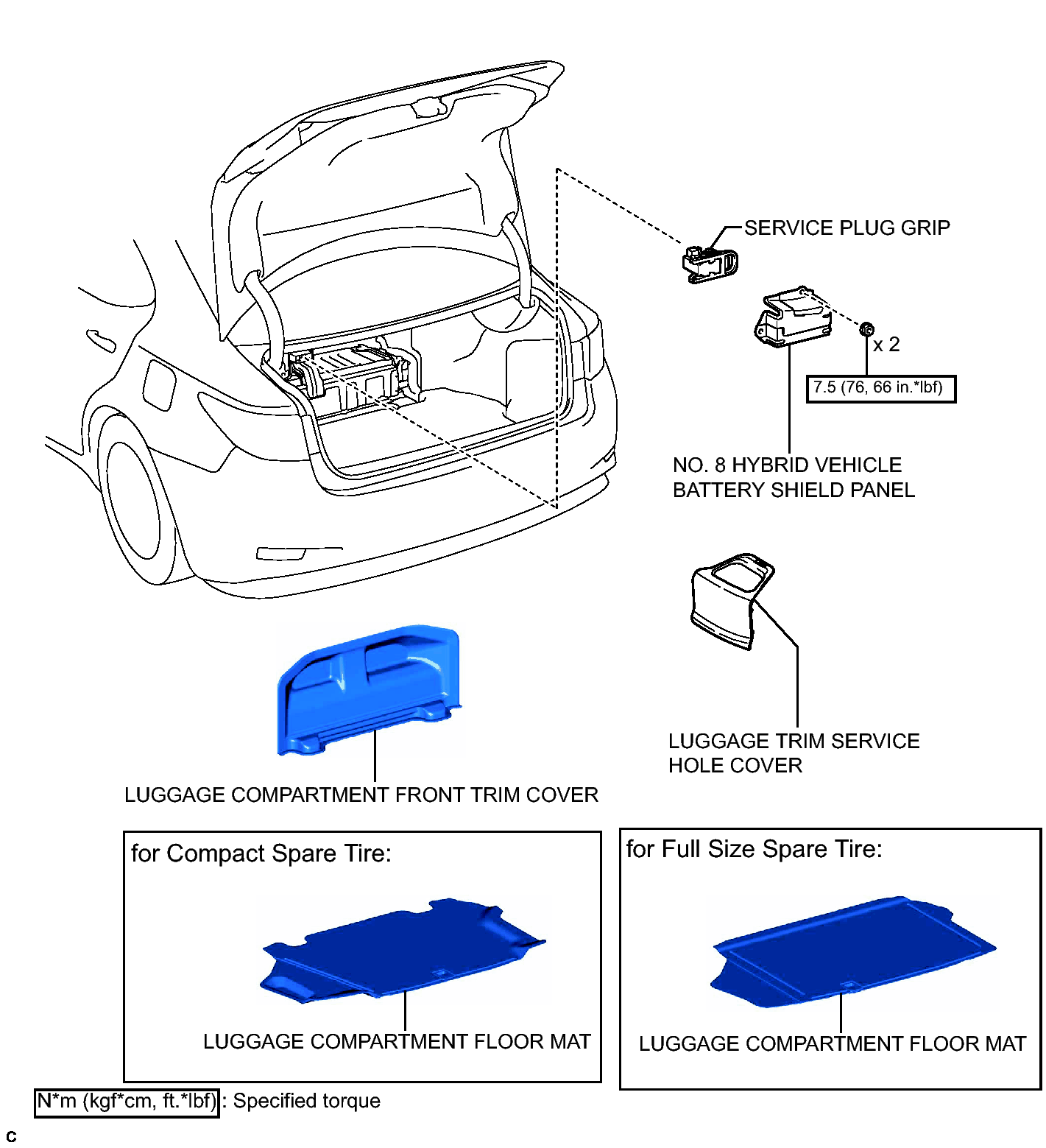

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY409459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

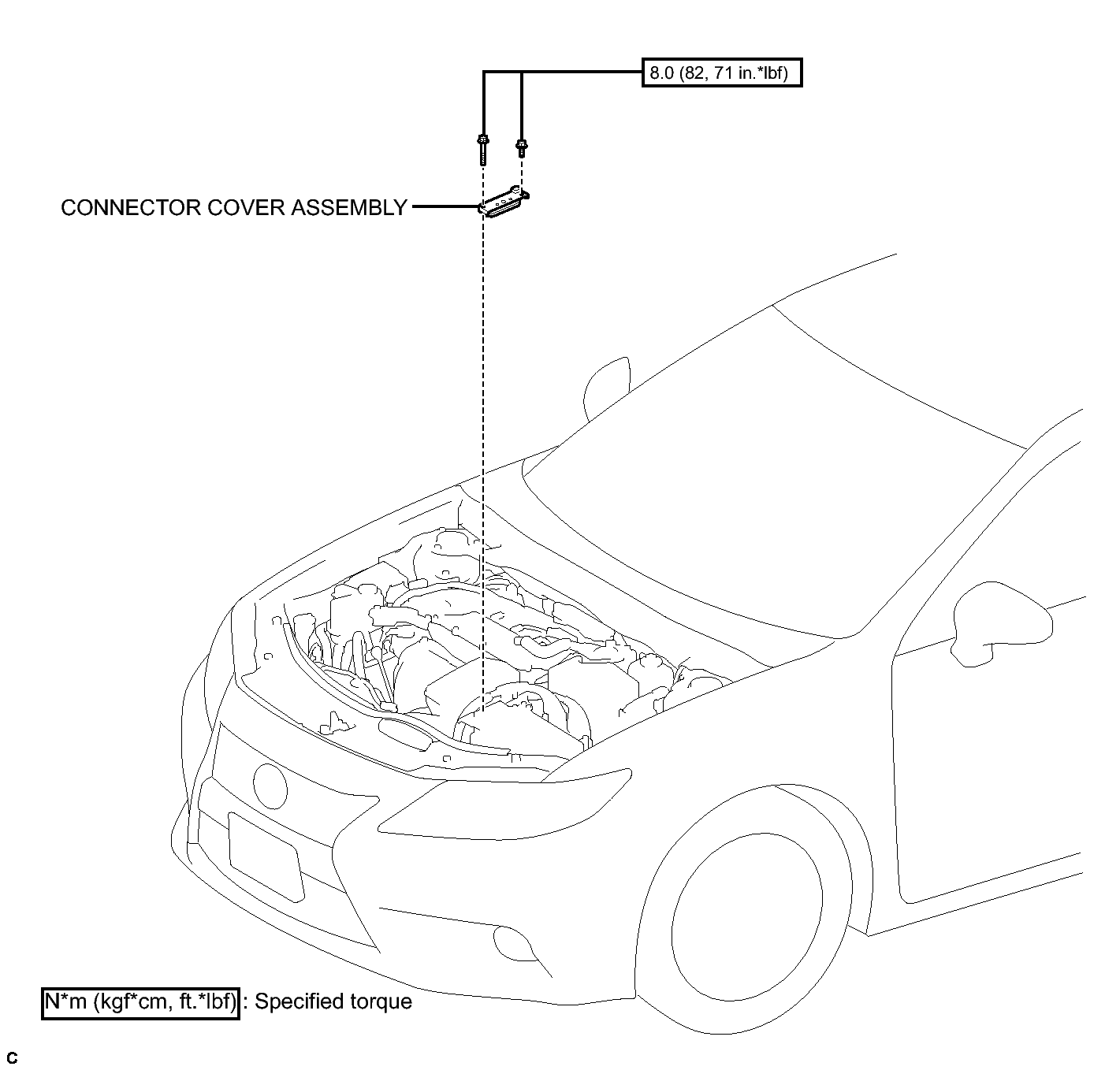

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY404765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

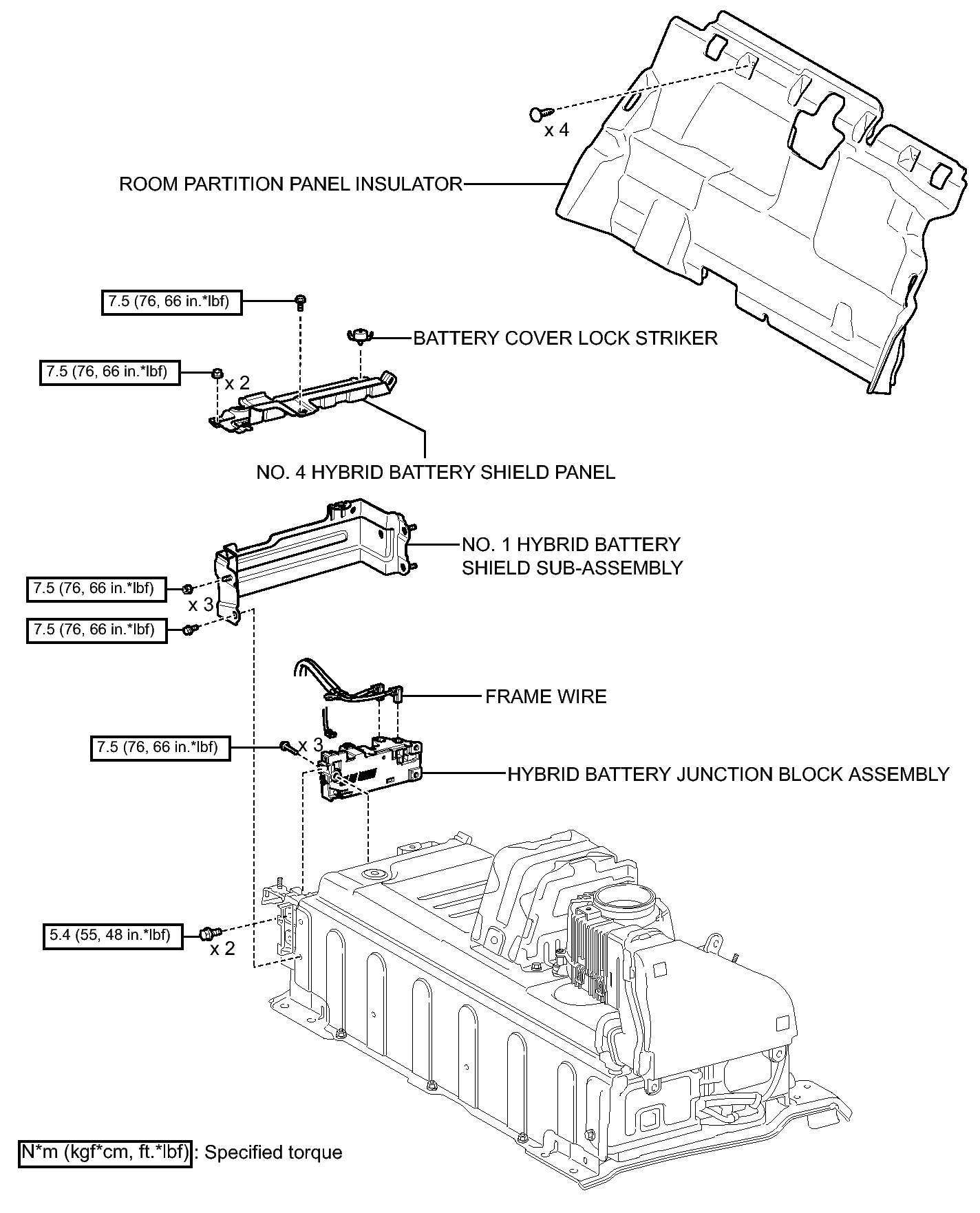

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY401211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
