Components [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

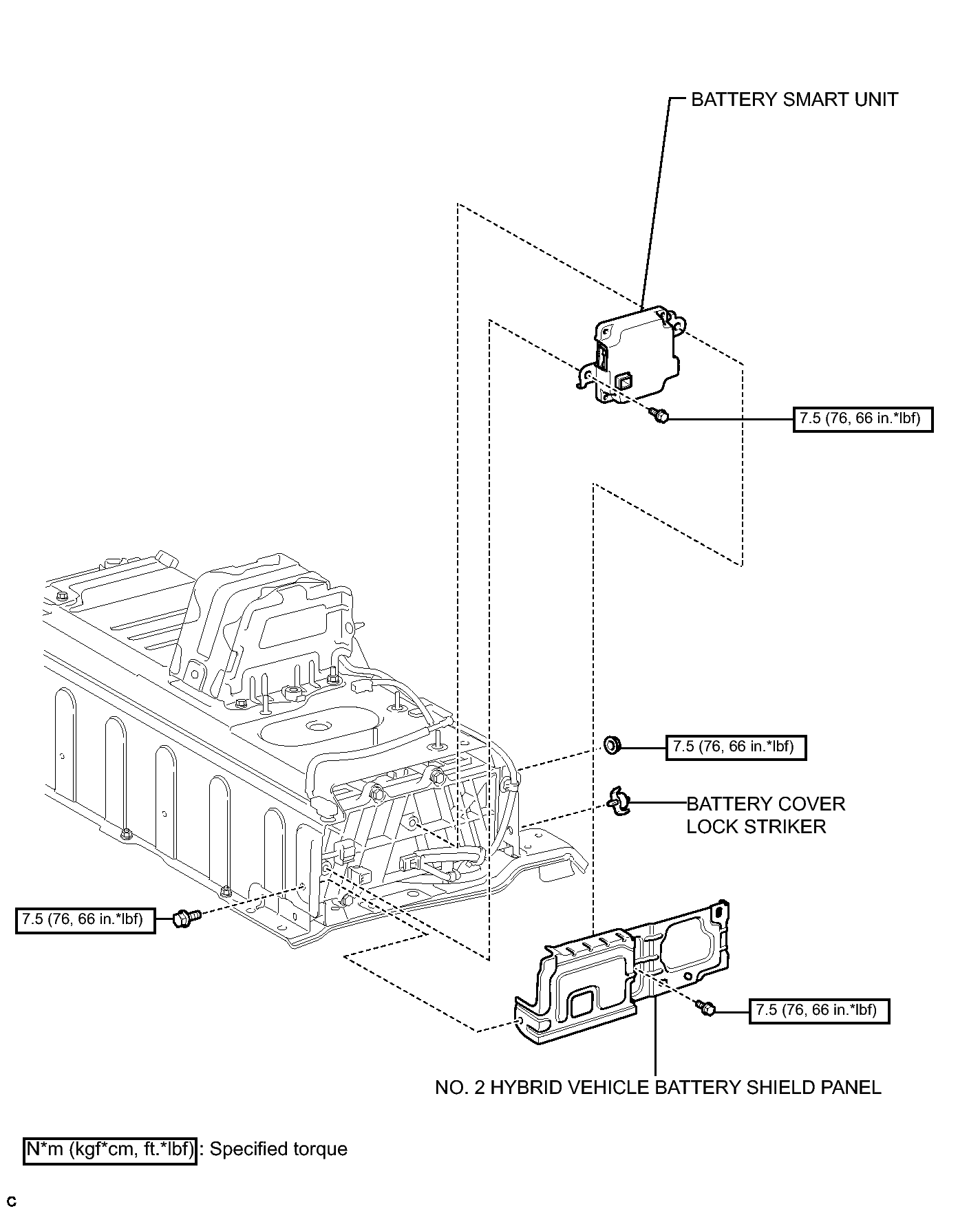

Fig 1: Identifying Battery Smart Unit Replacement Components (1 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

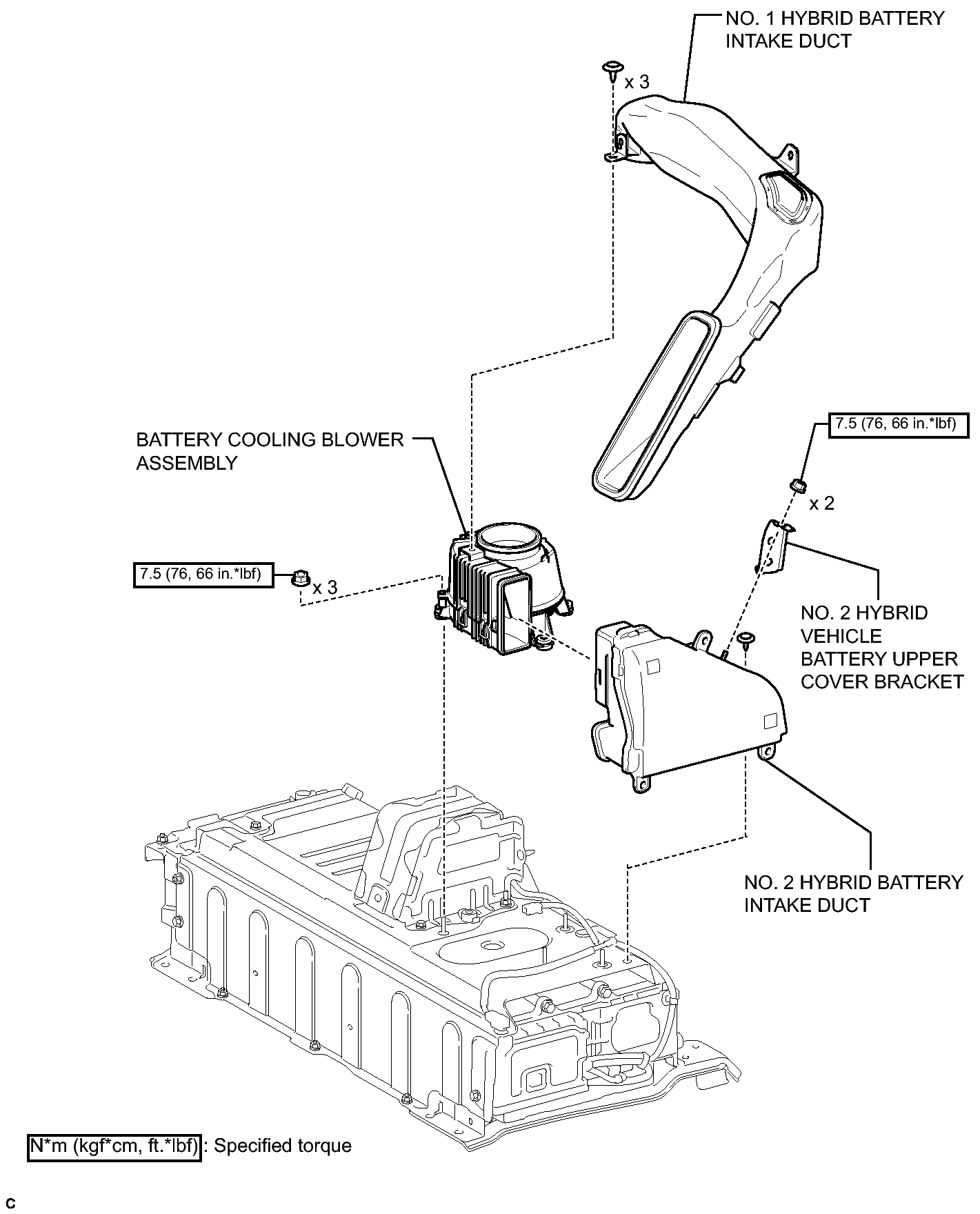

Fig 1: Identifying Battery Smart Unit Replacement Components (2 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Battery Smart Unit Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Battery Smart Unit Replacement Components (4 Of 5) With Torque Specifications

Fig 1: Identifying Battery Smart Unit Replacement Components With Torque Specifications (5 Of 5)
