Connectors, disconnecting
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

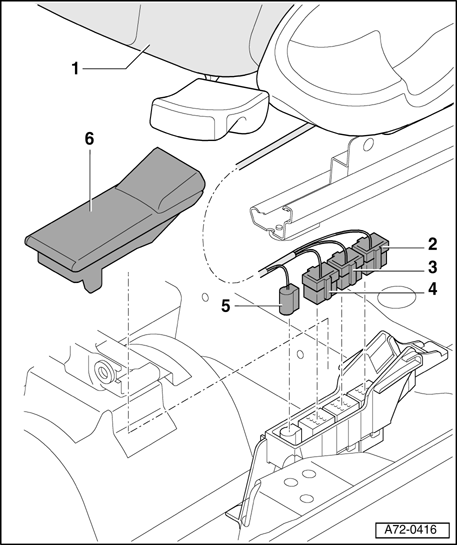

1 - Front seat
2 - Buckle interrogation connector (black)
3 - Heated seat connector (green)
4 - Power supply connector (red)
5 - Airbag connector (yellow)
6 - Connector point cover
- Removing
- Tilt front seat - 1 - back.
- Remove connection point cover - 6 - upward.
- Press tab on airbag connector - 5 - inboard side and remove airbag connector - 5 -.
- Press tab on power supply connector - 4 - inboard side and remove power supply connector - 4 -.
- Press tab on seat heating connector - 3 - inboard side and remove seat heating connector - 3 -.
- For vehicles with buckle interrogation: Press in tab on buckle interrogation connector - 2 - inboard side and remove buckle interrogation connector - 2 -.
- Connect airbag adapter → Airbag adapter VAS 6036 , connecting .
- With assistance from a second mechanic, lift front seat - 1 - out of vehicle.
