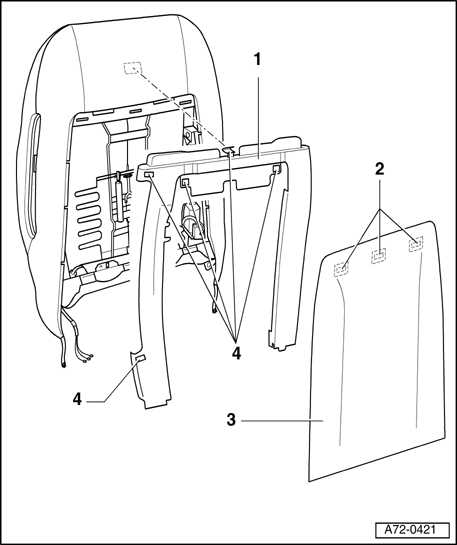

Backrest frame, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Backrest frame
- Removing
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Pry off clips - 4 - (5x).
- Remove backrest frame - 1 -.
- Installing
- Installation is in reverse order of removal.
2 - Staples (3x)
3 - Backrest trim
4 - Clips (5x)
