Rear wheel spoiler, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

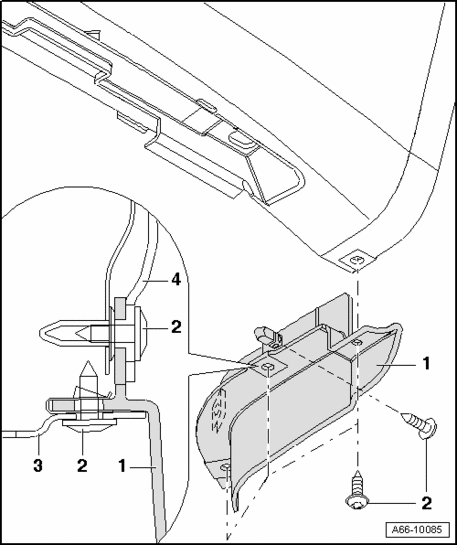

Fig 1: Rear Wheel Spoiler Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear wheel spoiler

When installing, rear wheel spoiler must be slide under wheel housing liner or under underbody trim as shown.

2 - Screw

3 Nm

3 - Underbody trim

4 - Rear wheel housing liner
