Cowl panel trim, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

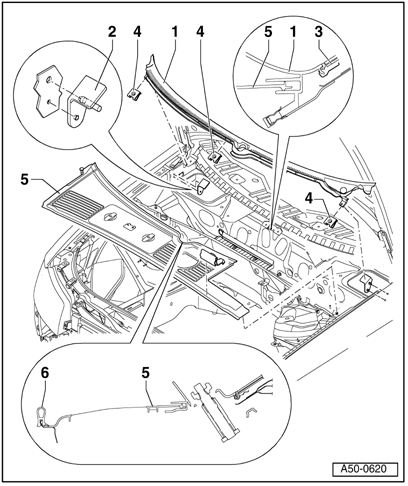

Fig 1: Cowl Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cowl panel trim

Removing:

Remove wiper arms →
- 92 WINDSHIELD WIPER WASHER SYSTEM
- 92 WINDSHIELD WIPER & WASHER SYSTEM for ELECTRICAL EQUIPMENT, CABRIOLET
.
Remove plenum chamber cover.
Remove securing pins
Remove trim from retaining strip at windshield, bottom.

Remove trim upward.

When installing, make sure that the trim engages completely into retaining strip.

2 - Support

3 - Windshield

4 - Securing pin

5 - Plenum chamber cover

6 - Gasket
