Gas-filled strut, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

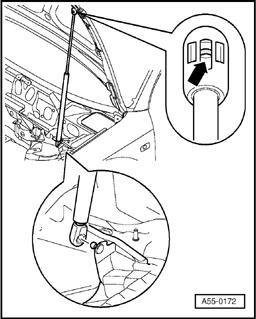

- Support hood or secure it from falling down.
- Gently lift retaining springs at both ends of gas-filled strut using a screwdriver and unclip gas-filled strut.
- To install, press gas-filled strut onto ball stud and engage.
- Install with tube end of strut at body.
