Parking brake cables (AWD vehicles), removing and installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The parking brake cable adjusting elements are in front of the rear lower transverse links.

Removing:

Remove center console extension. →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
Remove wheels.
Detach rear exhaust.
Remove heat shield at rear of fuel tank.

Remove rear tunnel heat shield (below drive shaft).
Remove rear tunnel heat shield (above drive shaft).

Fig 1: Removing/Installing Retaining Clip And Disconnecting/Connecting Parking Brake Cables At Brake Caliper

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull out retaining clip - 1 - and unhook parking brake cables at brake caliper.

NOTE:

Do not damage parking brake boot when removing and installing.

Fig 2: Uncliping Brake Cable From Retainer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unclip brake cable - 1 - from retainer - 3 -.

Fig 3: Uncliping Brake Cable From Retainer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unclip brake cable - 3 - from retainer - 2 -.

Fig 4: Uncliping/Clipping Brake Cables From/To Retainers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Unclip brake cables - 1 - from retainers - 2 - and - 4 -.

Before installing new parking brake cables you must remove the parking brake lever and reset the mechanism.

Removing and installing parking brake lever → Parking brake handle, removing and installing

Installing

Fig 5: Clipping On Parking Brake Cable Until It Engages

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Clip on parking brake cable - 1 - until it engages.

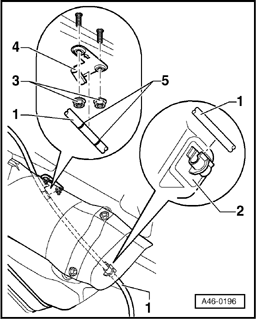

Fig 6: Uncliping/Clipping Brake Cables From/To Retainers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

The clip loop on retainer must be located between two positioning rings - 5 -.

NOTE:

Clip attachment on retainer - 4 - must always face outside of the vehicle.

Tightening torque for item 3: 1.5 Nm
Engage cable at exhaust mount.
Attach parking brake cables to underside and tank and insert them into lever at brake caliper.

NOTE:

Do not damage parking brake boot when removing and installing.

Fig 7: Removing/Installing Retaining Clip And Disconnecting/Connecting Parking Brake Cables At Brake Caliper

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hook parking brake cable into brake caliper and insert retaining washer - 1 -.

Fig 8: Uncliping Brake Cable From Retainer

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Positioning rings - 1 - must align with clips on retainer.
Tightening torque for Item - 2 - : 25 Nm
Install heat shields.
Adjust parking brake → Parking brake, adjusting .

Install center console extension. →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
