Torque converter

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check installation dimension of torque converter before installing transmission → Torque converter, installing

NOTE:

Rules of cleanliness for working on automatic transmissions → Rules of cleanliness for working on automatic transmissions .
General repair notes → Servicing notes .
Lightly coat sealing ring with ATF. Other lubricating substances lead to functional problems in the hydraulic transmission control.

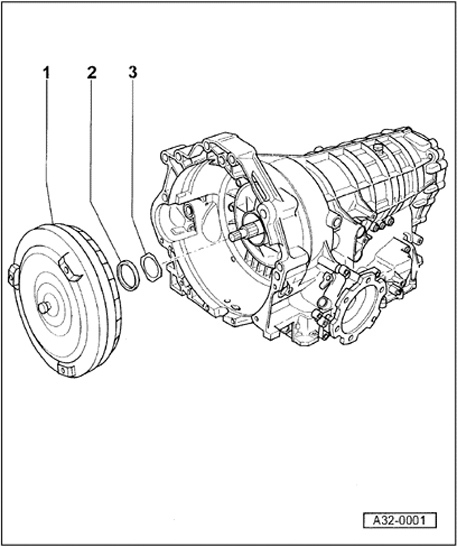

Fig 1: Identifying Torque Converter, Seal & Contact Ring

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Torque converter

Secure on removed transmission to keep it from falling out.
Identification → Torque converter, identification
Installing → Torque converter, installing

2 - Seal

Always replace → Torque converter oil seal, replacing

3 - Contact ring

Behind sealing ring
Replace if damaged
