WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

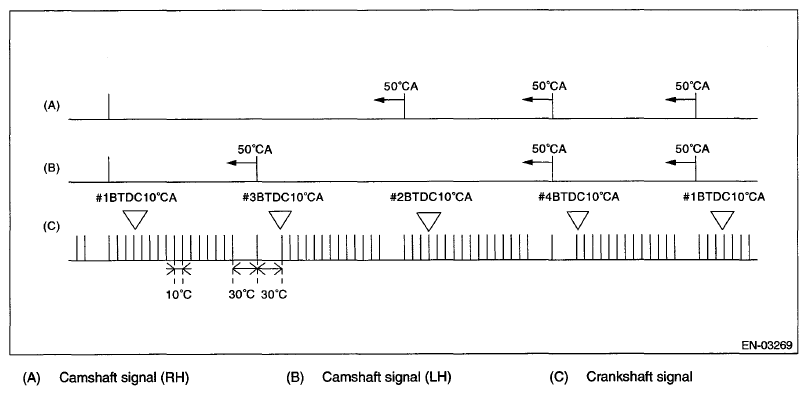

Fig 1: Camshaft And Crankshaft Signal Chart
Courtesy of SUBARU OF AMERICA, INC.

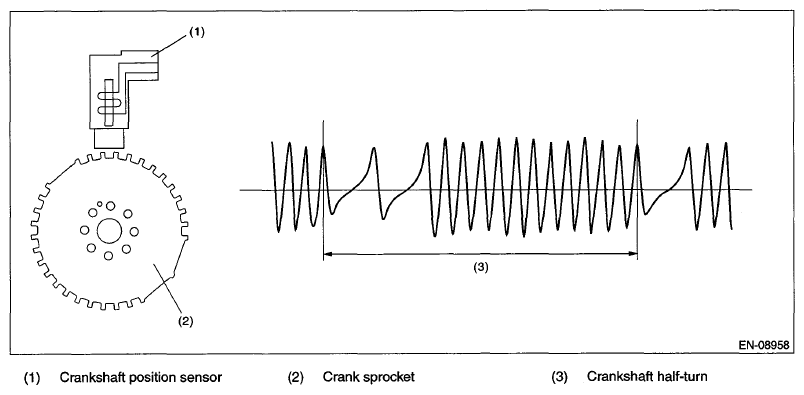

Fig 2: Crankshaft Position Sensor And Crank Sprocket
