Installing ball bearing for input shaft in end cover
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

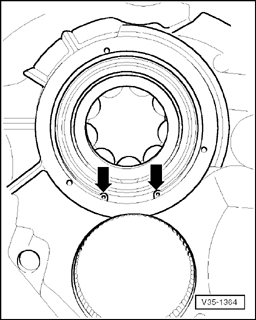

Installation position of circlip:
- Ends of circlip -arrows- face toward roller sleeve for drive pinion.
NOTE:
The thickness of the circlip must be re-determined if the bearing or the end cover are replaced.
- Determining thickness of circlip for four-point bearing for input shaft:
- Press outer race of four-point bearing onto stop.
- Determine the thickest circlip that will just fit and install it.
- Axial play: no more than 0.08 mm
Available circlips
| Circlip thickness (mm) | |
| 2.55 | 2.65 |
| 2.60 | 2.70 |
