Bearing plate, servicing: Notes

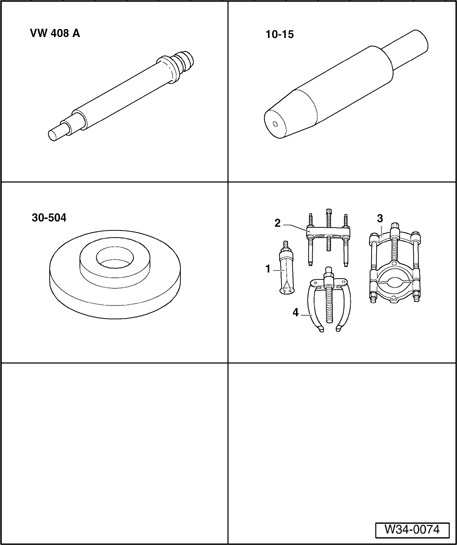

Fig 1: Identifying Special Tools - Gear Carrier, Servicing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools and equipment

• VW 408 A Press tool
• 10-15 Guide pins
• 30-504 Press tool
• 1 - Kukko 21/3 Internal puller

• 4 - Kukko 22/1 Counter support
• Depth gauge

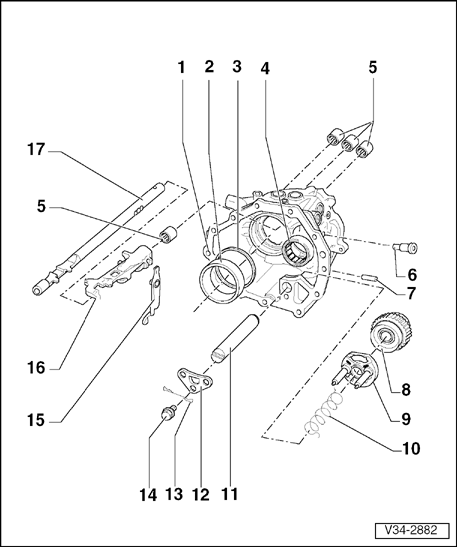

Fig 2: Gear Carrier, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bearing plate

• Re-determine shim S4 when replacing

2 - Outer race/small taper roller bearing for drive pinion

• Driving out. Refer to Driving out outer race for small taper roller bearing
• Pressing in. Refer to Pressing in outer race/small taper roller bearing
• Re-determine shim S4 when replacing

3 - Shim S4

• Adjustment overview. Refer to Adjustment overview
• Re-determining thickness. Refer to Re-determining shim S4

4 - Cylinder roller bearing for input shaft

• Pressing out. See Pressing cylinder roller bearing for input shaft out of bearing plate
• Pressing in. See Pressing cylinder roller bearing for input shaft into bearing plate
• Measuring insertion depth. See Measuring insertion depth of cylinder roller bearing for input shaft

Fig 3: Gear Carrier, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Ball sleeves

• 4 pieces
• Removing and driving in. See Driving out and driving in ball sleeves for selector rods

For follower for reverse gear:

• Pulling out. See Pulling ball sleeve out of follower for reverse gear
• Tapping in. See Driving ball sleeve flush into follower for reverse gear

6 - Bolt, 35 Nm

• For relay lever

7 - Dowel pin (7 x 28)

• Drive in and drive out with drift

8 - Reverse idler gear

• For reverse gear

9 - Reverse gear synchro-ring

• With locking pins
• Checking for wear. See Checking synchro-ring for wear
• Installation position: Position flat on synchro-ring circumference to face input shaft. Refer to Figure

Fig 4: Gear Carrier, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

10 - Spring

• Installation position: Hook single angled end into recess on synchro-ring. Turn double angled end anti-clockwise and insert into opening on bearing plate

11 - Reverse idler gear axle

12 - Retaining plate

• Installation position: Chamfers of holes for locking pins of synchro-ring face bearing plate. Refer to Figure

13 - Spring clasp

14 - Bolt, 25 Nm

• Self-locking
• Always replace

Fig 5: Gear Carrier, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

15 - Relay lever for reverse gear

16 - Follower for reverse gear

• Pulling out ball sleeve. See Pulling ball sleeve out of follower for reverse gear
• Driving in ball sleeve. See Driving ball sleeve flush into follower for reverse gear

17 - Selector rod for 5th and 6th gear

• Replace only together with follower. Refer to 5th and 6th gear, removing and installing , Item 6
