Section 209 (Airbag System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

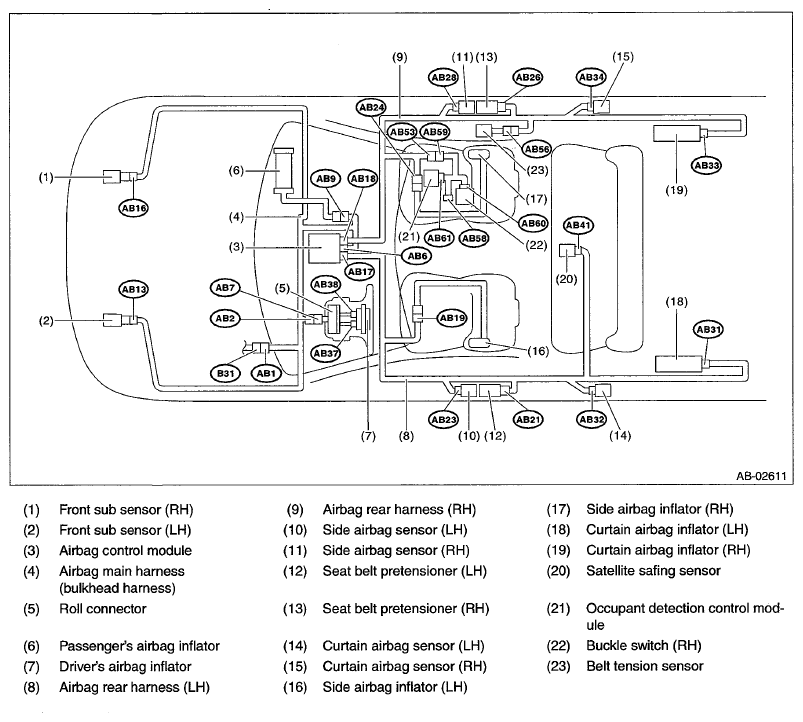

Fig 1: Identifying Airbag System Components Location
G07672879Courtesy of SUBARU OF AMERICA, INC.
AIRBAG SYSTEM CONNECTOR REFERENCE CHART

Connector No. (AB1) (AB2) (AB6) (AB7) (AB9) (AB13) (AB16) (AB17) (AB18) (AB19) (AB21) (AB23)
Pin 6 4 30 4 4 2 2 24 24 4 2 4
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Black Yellow
Male/Female Male Female Female Male Female Female Female Female Female Female Female Female
AIRBAG SYSTEM CONNECTOR REFERENCE CHART

Connector No. (AB24) (AB26) (AB28) (AB31) (AB32) (AB33) (AB34) (AB37) (AB38) (AB41) (AB53) (AB56)
Pin 4 2 4 2 4 2 4 2 2 2 6 3
Color Yellow Black Yellow Black Yellow Black Yellow Orange Black Yellow Gray Brown
Male/Female Female Female Female Female Female Female Female Female Female Female Female Female
AIRBAG SYSTEM CONNECTOR REFERENCE CHART

Connector No. (AB58) (AB59) (AB60) (AB61) (AB62)
Pin 3 6 2 18 3
Color Gray Gray Yellow Black Brown
Male/Female Female Female Female Female Female
