Section 206 (HVAC System (Auto A/C) (Diagnostics)): Electrical Component Location: Location: Compartment

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

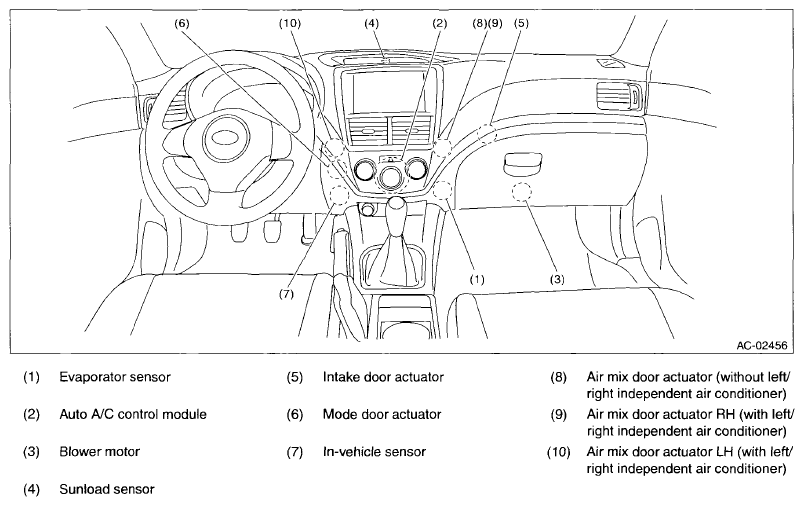

Fig 1: HVAC System (Auto A/C) Components Location - Compartment
G07680292Courtesy of SUBARU OF AMERICA, INC.
