EGR Pipe: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the EGR pipe to the intake manifold and water pipe assembly, and tighten the EGR pipe in numerical order as shown in the figure.
NOTE: Use a new gasket.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

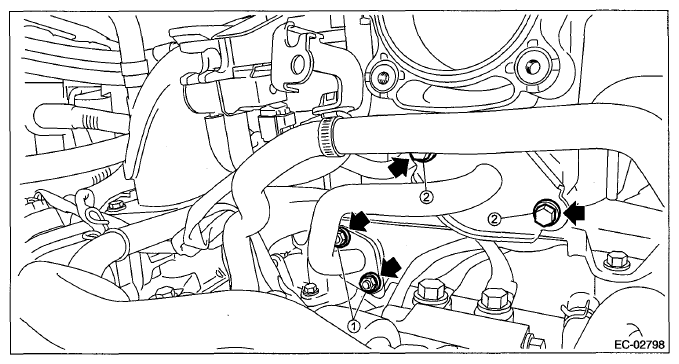

Fig 1: Identifying EGR Pipe Mounting Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the throttle body to the intake manifold together with the blow-by hose stay.
Tightening torque:

8.3 N.m (0.8 kgf-m, 6.1 ft-lb)

Fig 2: Locating Throttle Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the throttle body.

Fig 3: Locating Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the EGR pipe to EGR pipe adapter.

Fig 4: Locating EGR Pipe Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Temporarily install the EGR pipe assembly to the water pipe assembly and cylinder head assembly, and tighten the EGR pipe assembly in numerical order as shown in the figure.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2:51 N.m (5.2 kgf-m, 37.6 ft-lb)

Fig 5: Identifying EGR Pipe Assembly Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. < Ref. to INSTALLATION , Air Intake Boot >
Connect the battery ground terminal.

Fig 6: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
