Transmission layout

WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

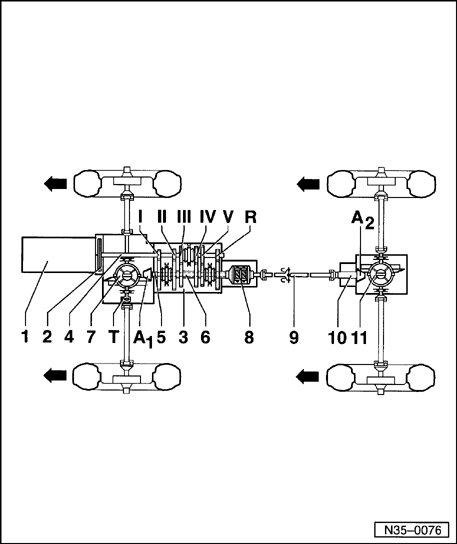

Fig 1: Power Transfer, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Engine

2 - Clutch

3 - Manual transmission

4 - Input shaft (main shaft)

5 - Front pinion (output shaft)

6 - Hollow shaft

7 - Front differential

8 - Torsen differential

9 - Drive shaft

10 - Rear pinion

11 - Rear differential

Fig 2: Power Transfer, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - 1st gear

II - 2nd gear

III - 3rd gear

IV - 4th gear

V - 5th gear

R - Reverse gear

A1 - Front final drive

A2 - Rear final drive

T - Speedometer drive

NOTE: Arrows point in direction of travel.
