Front Exhaust Pipe

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

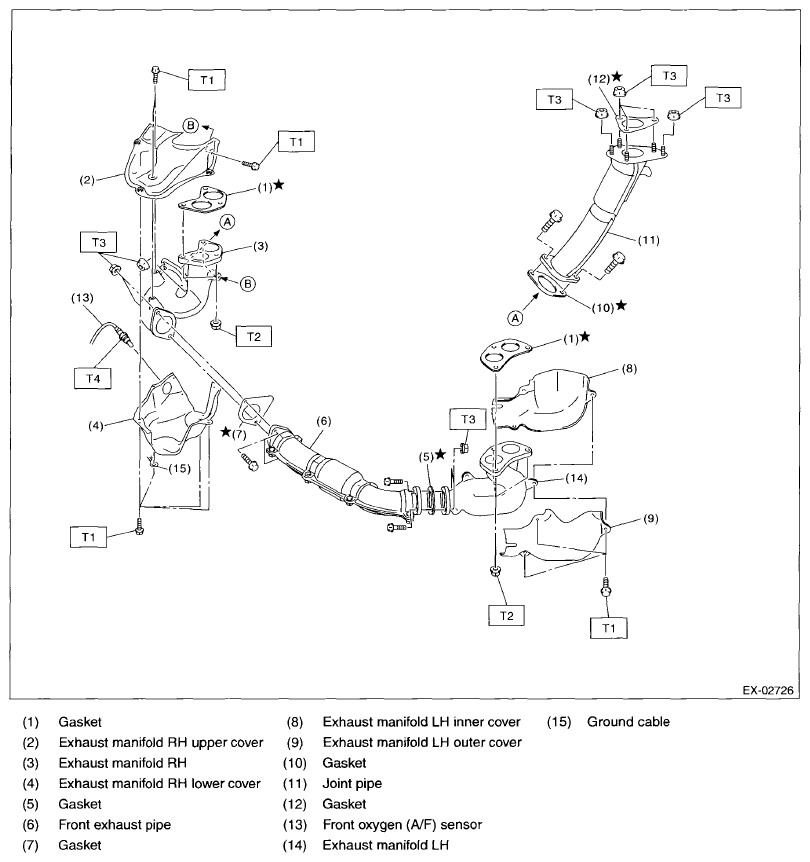

Fig 1: Front Exhaust Pipe Components With Tightening Torque

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque. N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)

T2: 40 (4.1, 29.5)

T3: 42.5 (4.3, 31.3)

T4: < Ref. to INSTALLATION , Front Oxygen (A/F) Sensor. >
