Section 195 (Engine Mechanical (H4DO)): V-belt: Removal: V-Belt

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the V-belt covers.

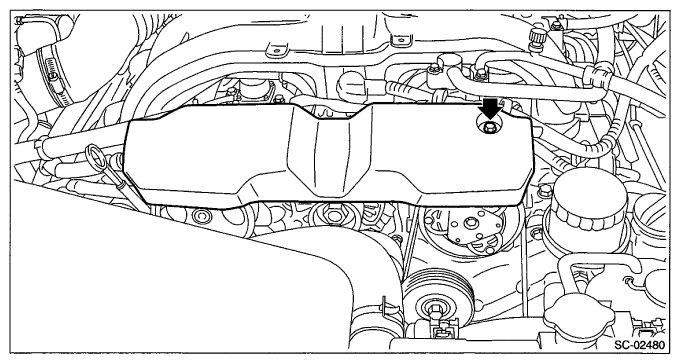

    Fig 1: Locating V-Belt Cover Bolt
    G07669303Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct (Rear). < refer to REMOVAL , Air Intake Duct >
  3. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

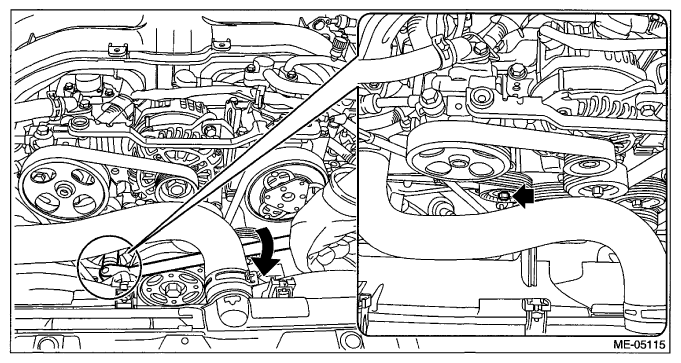

    Fig 2: Removing V-Belt With Tool
    G07669304Courtesy of SUBARU OF AMERICA, INC.
