Section 195 (Engine Mechanical (H4DO)): V-belt: Inspection

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the V-belt for cracks, tear or wear.
  2. Check the V-belt tensioner assembly and idler pulley for deformation, cracks or other damages.

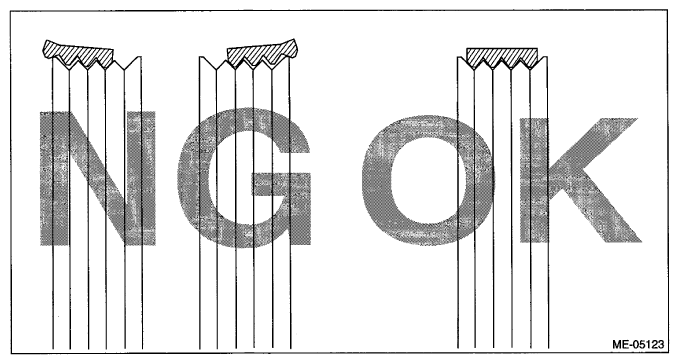

  3. Check that the V-belt ribs are securely placed on the rib grooves for each pulleys.
    Fig 1: Identifying Proper And Improper V-Belt Ribs
    G07669315Courtesy of SUBARU OF AMERICA, INC.

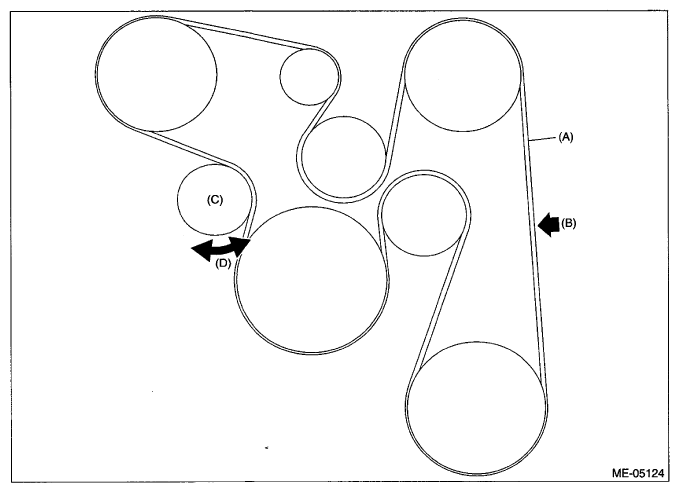

  4. Check that the V-belt tensioner assembly (C) moves in the direction of arrow (D), when the V-belt (A) is pushed in the direction of arrow (B) or released.
    Fig 2: Checking V-Belt Tensioner Assembly
    G07669316Courtesy of SUBARU OF AMERICA, INC.
