Crankshaft And Piston

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

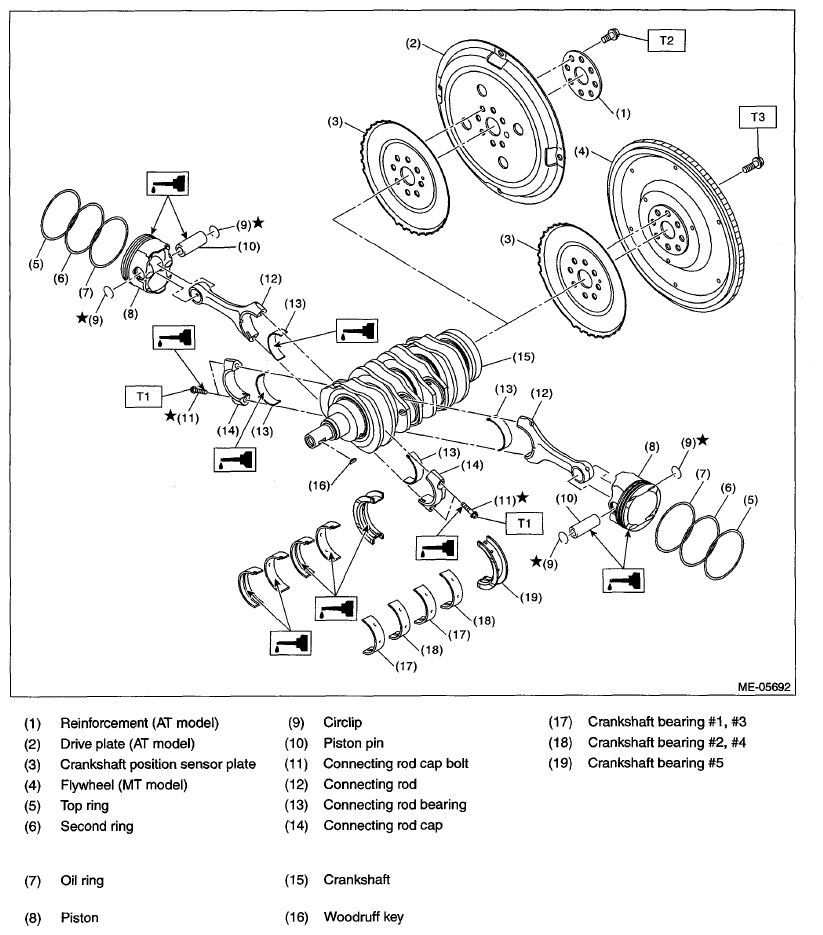

Fig 1: Exploded View Of Crankshaft And Piston With Torque Specification
G07669203Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1:  < refer to INSTALLATION , Cylinder Block >

T2:  < refer to INSTALLATION , Drive Plate >

T3:  < refer to INSTALLATION , Flywheel >
