Cylinder Head RH

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the bolt holes in the cylinder block RH.
    CAUTION: To avoid erroneous tightening of the bolts, clean out the bolt holes sufficiently by blowing with compressed air to eliminate engine coolant etc.
  2. Apply liquid gasket to both sides of the cylinder head gasket RH as shown in the figure.
    NOTE:
    • Use a new cylinder head gasket RH.
    • Before applying liquid gasket, remove oil from the mating surface of the cylinder block RH and the cylinder head RH.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket: THREE BOND 1217G (Part No. 0877Y0100) or equivalent

    Liquid gasket applying diameter: 3±1 mm (0.1181±0.0394 in)

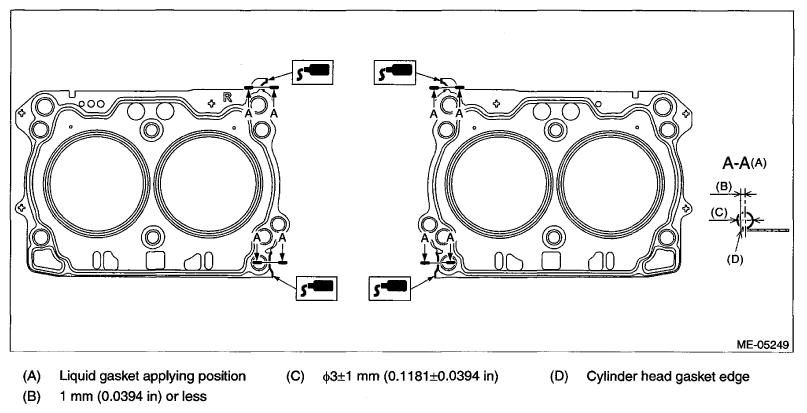

    Fig 1: Identifying Liquid Gasket Applying Area On Both Sides Of Cylinder Head Gasket RH
    G07669512Courtesy of SUBARU OF AMERICA, INC.
  3. Attach the cylinder head gasket RH.
    NOTE: Check that liquid gasket RH is squeezed out from the cylinder head gasket.
  4. Install the cylinder head RH to the cylinder block RH.
    CAUTION: Be careful not to scratch the mating surface of cylinder head RH and cylinder block RH.
    1. Clean the cylinder head bolt threads and apply sufficient engine oil to the washer and cylinder head bolts threads.
    2. Mount the cylinder head RH onto the cylinder block RH, then tighten all bolts with a torque of 29 N.m (3.0 kgf-m, 21.4 ft-lb) in numerical order as shown in the figure.

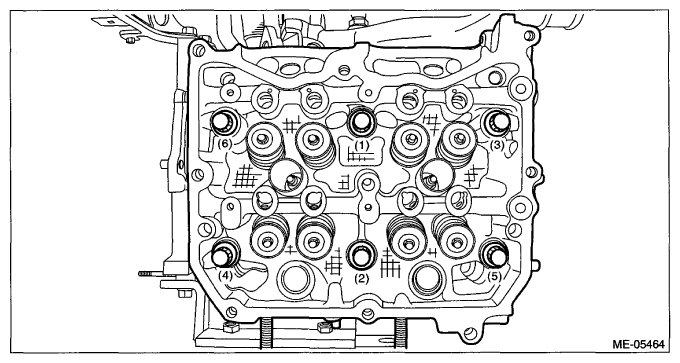

      Fig 2: Identifying Cylinder Head RH Bolts Tightening Sequence
      G07669513Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten all cylinder head bolts further with a torque of 100 N.m (10.2 kgf-m, 73.8 ft-lb) in numerical order as shown in the figure.
      CAUTION: If the bolt makes stick-slip sound during tightening, repeat the procedure from step  1). In that case, the cylinder head gasket RH can be reused. But it is necessary to remove liquid gasket completely from cylinder block RH, cylinder head RH and cylinder head gasket RH and re-apply to them.
      Fig 3: Identifying Cylinder Head Bolts Tightening Sequence
      G07669514Courtesy of SUBARU OF AMERICA, INC.
    4. Loosen all cylinder head bolts 180° in numerical order as shown in the figure, and then loosen all cylinder head bolts 180° further in numerical order as shown in the figure.

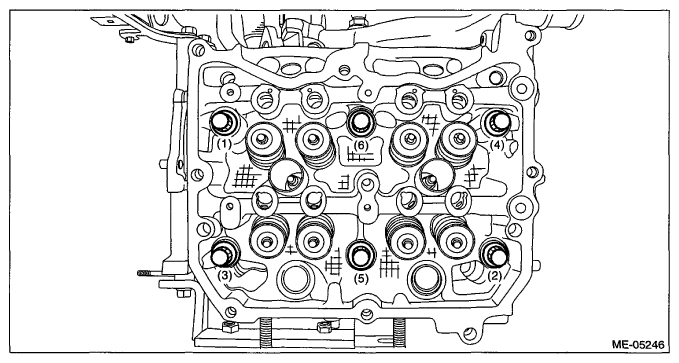

      Fig 4: Identifying Cylinder Head Bolts Loosening Bolts
      G07669515Courtesy of SUBARU OF AMERICA, INC.
    5. Tighten all cylinder head bolts with a torque of 42 N.m (4.3 kgf-m, 31.0 ft-lb) in numerical order as shown in the figure.

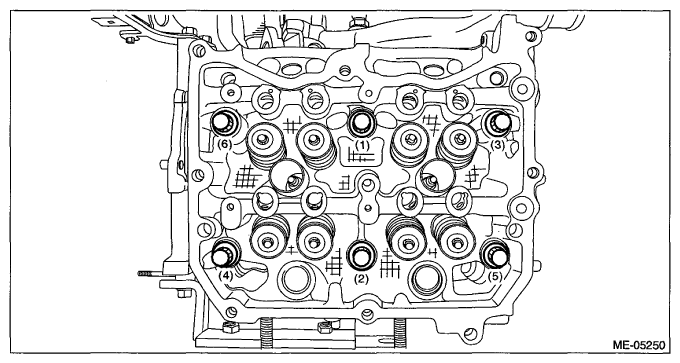

      Fig 5: Identifying Cylinder Head Bolts Tightening Sequence
      G07669516Courtesy of SUBARU OF AMERICA, INC.
    6. Tighten all cylinder head bolts with specified angle in numerical order as shown in the figure using ST2.
      NOTE: Attach the magnet used for securing the ST2 (ANGLE GAUGE) to ST1.

      ST1 499817100 ENGINE STAND

      ST2 18854AA000 ANGLE GAUGE

      Tightening angle: 80°±2°

      Fig 6: Tightening Cylinder Head Bolts (Tightening Angle 80°±2°)
      G07669517Courtesy of SUBARU OF AMERICA, INC.
    7. Tighten the cylinder head bolts (2 places) with specified angle in numerical order as shown in the figure using ST2.
      NOTE: Attach the magnet used for securing the ST2 (ANGLE GAUGE) to ST1.

      ST1 499817100 ENGINE STAND

      ST2 18854AA000 ANGLE GAUGE

      Tightening angle: 75°±2°

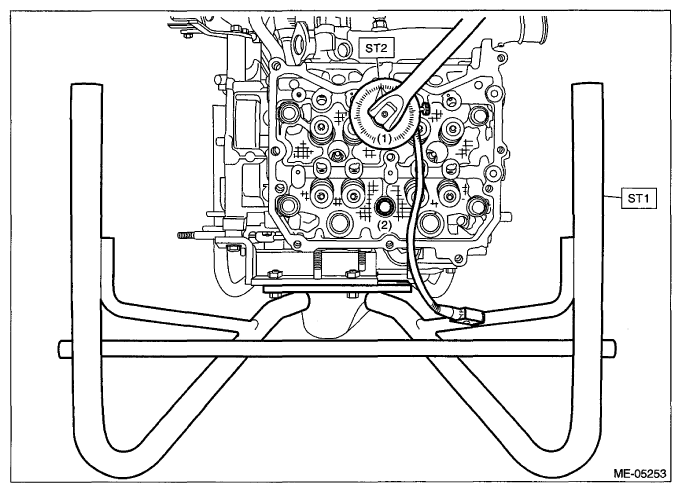

      Fig 7: Tightening Cylinder Head Bolts (Tightening Angle 75°±2°)
      G07669518Courtesy of SUBARU OF AMERICA, INC.
    8. Tighten the cylinder head bolts (4 places) with specified angle in numerical order as shown in the figure using ST2.
      NOTE:
      • After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.
      • Attach the magnet used for securing the ST2 (ANGLE GAUGE) to ST1.

      ST1 499817100 ENGINE STAND

      ST2 18854AA000 ANGLE GAUGE

      Tightening angle: 30°±2°

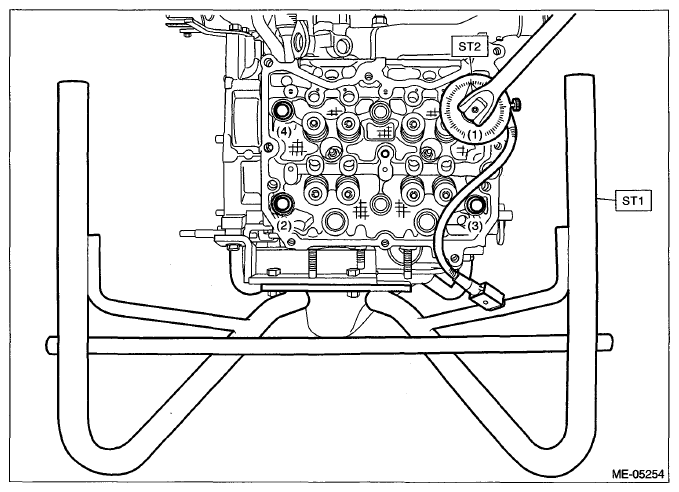

      Fig 8: Tightening Cylinder Head Bolts (Tightening Angle 30°±2°)
      G07669519Courtesy of SUBARU OF AMERICA, INC.
  5. Install the EGR pipe assembly to the water pipe assembly and the cylinder block RH.
    NOTE: Use a new gasket.

    Tightening torque:

    T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    T2: 51 N.m (5.2 kgf-m, 37.6 ft-lb)

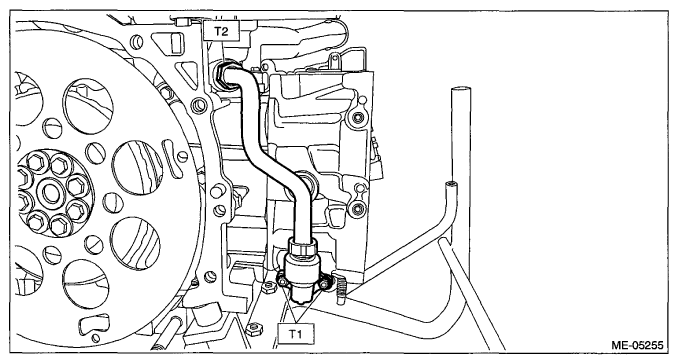

    Fig 9: Identifying EGR Pipe Assembly With Bolts
    G07669520Courtesy of SUBARU OF AMERICA, INC.
  6. Install the cam carrier RH. < refer to CAM CARRIER RH , INSTALLATION, Cam Carrier >
  7. Install the rocker cover RH. < refer to ROCKER COVER RH , INSTALLATION, Rocker Cover >
  8. Install the chain cover. < refer to INSTALLATION , Chain Cover >
  9. Install the tumble generator valve assembly RH. < refer to INSTALLATION , Tumble Generator Valve Assembly >
  10. Install the intake manifold. < refer to INSTALLATION , Intake Manifold >
  11. Install the engine to the vehicle. < refer to INSTALLATION , Engine Assembly >
