Crank Sprocket: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crank sprocket.
    NOTE: The direction of installation is not specified for the crank sprocket.

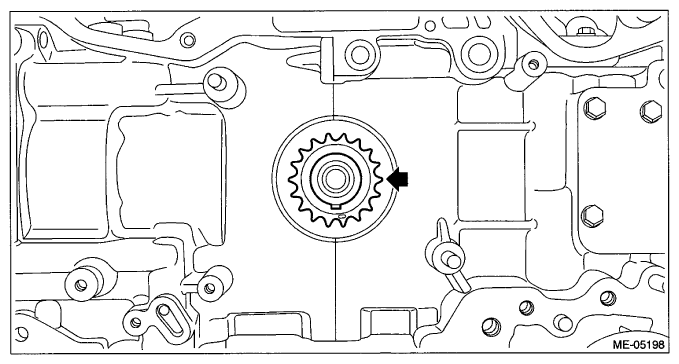

    Fig 1: Locating Crank Sprocket
    G07669411Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing chain. < refer to INSTALLATION , Timing Chain Assembly >
  3. Install the chain cover. < refer to INSTALLATION , Chain Cover >
