Chain Cover: Assembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sensor cover to the chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

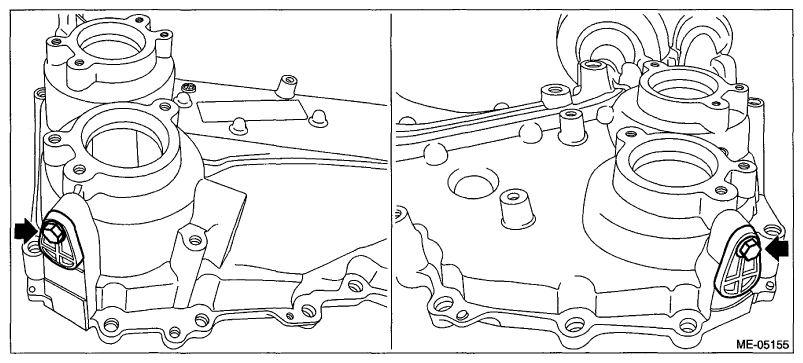

    Fig 1: Locating Sensor Cover Bolts
    G07669365Courtesy of SUBARU OF AMERICA, INC.
  2. Install the actuator cover to chain cover.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

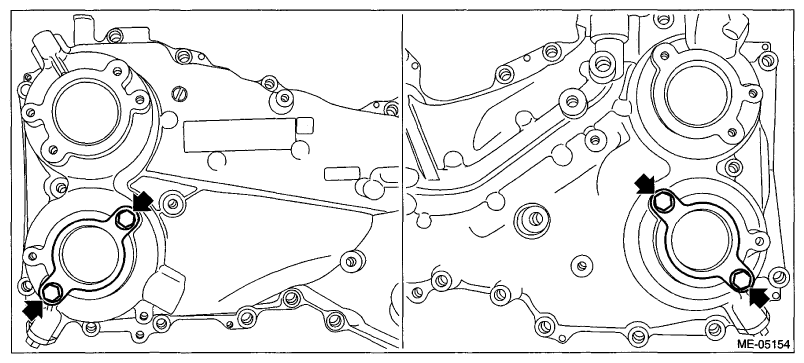

    Fig 2: Locating Actuator Cover Bolts
    G07669366Courtesy of SUBARU OF AMERICA, INC.
  3. Install the camshaft position sensor. < refer to INSTALLATION , Camshaft Position Sensor >
  4. Install the oil control solenoid. < refer to INSTALLATION , Oil Control Valve >
  5. Install the engine oil temperature sensor. < refer to INSTALLATION , Engine Oil Temperature Sensor >
  6. Install the oil pressure switch. < refer to INSTALLATION , Oil Pressure Switch >
  7. Install the engine oil filter and the oil pump union. < refer to INSTALLATION , Engine Oil Filter >
  8. Install the oil filler cap.

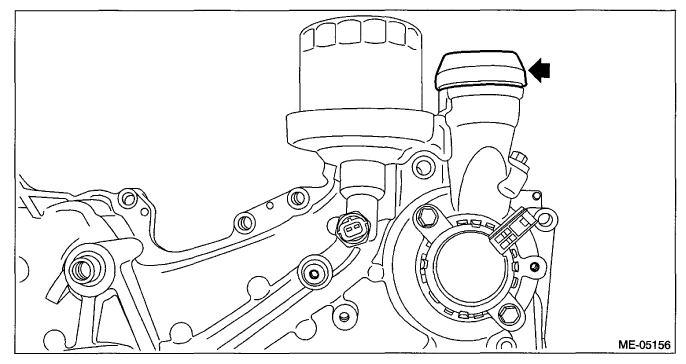

    Fig 3: Locating Oil Filler Cap
    G07669367Courtesy of SUBARU OF AMERICA, INC.
