Cam Sprocket LH

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Intake cam sprocket LH
1. Install the intake cam sprocket LH by aligning the knock hole (A) of intake cam sprocket LH and the knock pin (B) of intake camshaft LH.

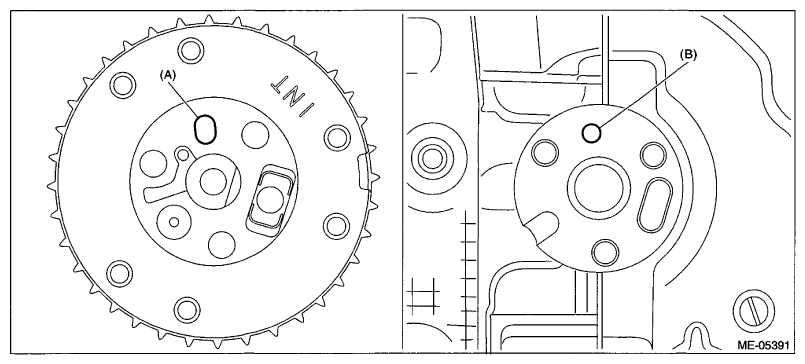

  Fig 1: Identifying Intake Cam Sprocket LH Knock Hole And Intake Camshaft LH Knock Pin
  Courtesy of SUBARU OF AMERICA, INC.
2. Hold the intake cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.
  ST1 18355AA000 PULLEY WRENCH

  ST2 18334AA030 PULLEY WRENCH PIN SET

  ST3 18270KA010 SOCKET

  Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

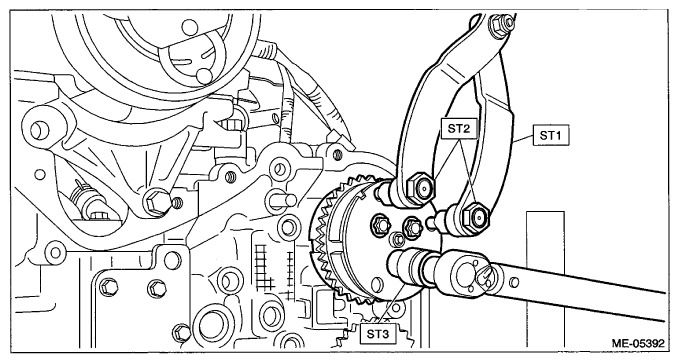

  Fig 2: Installing Intake Cam Sprocket LH Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Install timing chain LH. < refer to TIMING CHAIN LH , INSTALLATION, Timing Chain Assembly >
4. Install the chain cover. < refer to INSTALLATION , Chain Cover >
Exhaust cam sprocket LH
1. Install the exhaust cam sprocket LH by aligning the knock hole (A) of exhaust cam sprocket LH and the knock pin (B) of exhaust camshaft LH.

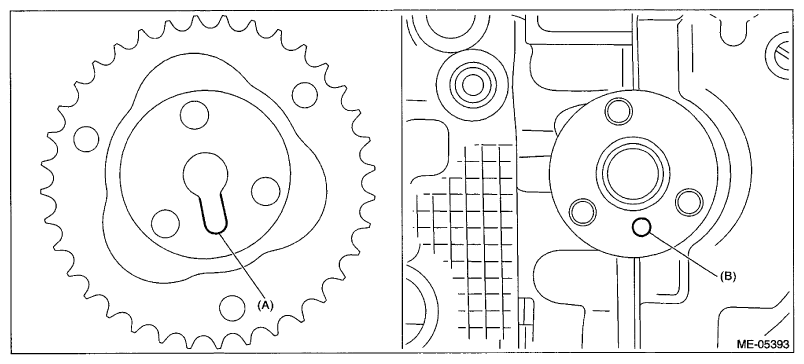

  Fig 3: Identifying Exhaust Cam Sprocket LH Knock Hole And Exhaust Camshaft LH Knock Pin
  Courtesy of SUBARU OF AMERICA, INC.
2. Hold the exhaust cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.
  ST1 18355AA000 PULLEY WRENCH

  ST2 18334AA020 PULLEY WRENCH PIN SET

  ST3 18270KA010 SOCKET

  Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

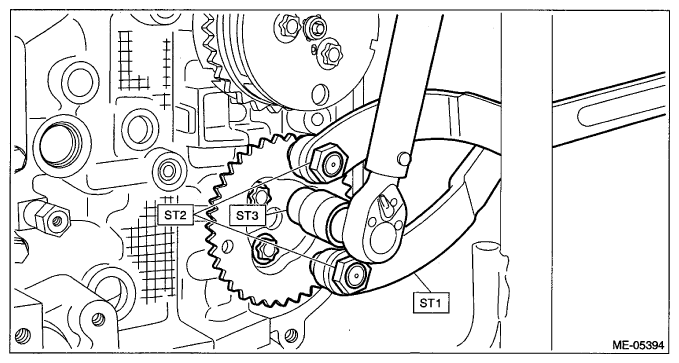

  Fig 4: Installing Exhaust Cam Sprocket LH Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Install timing chain LH. < refer to TIMING CHAIN LH , INSTALLATION, Timing Chain Assembly >
4. Install the chain cover. < refer to INSTALLATION , Chain Cover >
