Cam Carrier RH

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolts (front camshaft cap RH, intake center camshaft cap RH, intake rear camshaft cap RH, exhaust center camshaft cap RH and exhaust rear camshaft cap RH) equally, a little at a time in numerical sequence as shown in the figure, and remove the camshaft cap.
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.

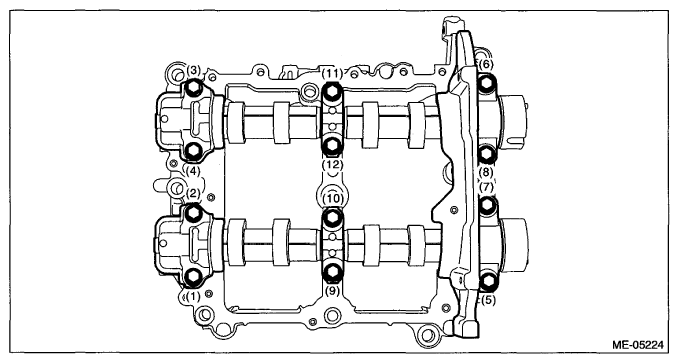

    Fig 1: Identifying Camshaft Caps Bolts Loosening Sequence (Cam Carrier RH)
    G07669488Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake camshaft RH and the exhaust camshaft RH from cam carrier RH.

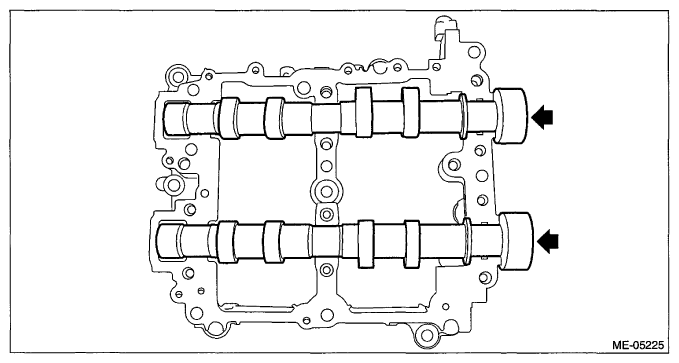

    Fig 2: Locating Intake Camshaft RH And Exhaust Camshaft RH
    G07669489Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filter from cam carrier RH.

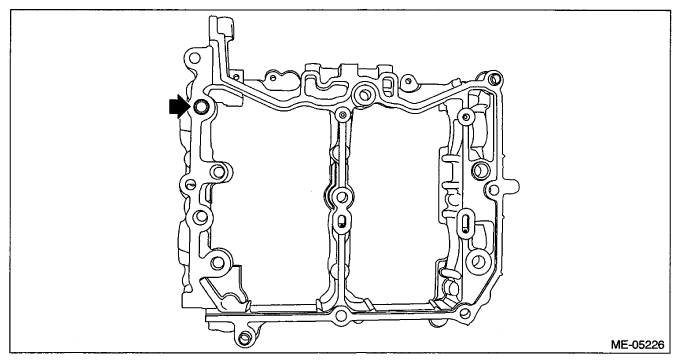

    Fig 3: Locating Filter Bolt Cam Carrier RH
    G07669490Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the liquid gasket from cam carrier RH and front camshaft cap RH, intake rear camshaft cap RH and exhaust rear camshaft cap RH.
