Section 191 (Engine Controls (Diagnostics) (H4DOTC)): Electrical Component Location: Location: Sensor

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

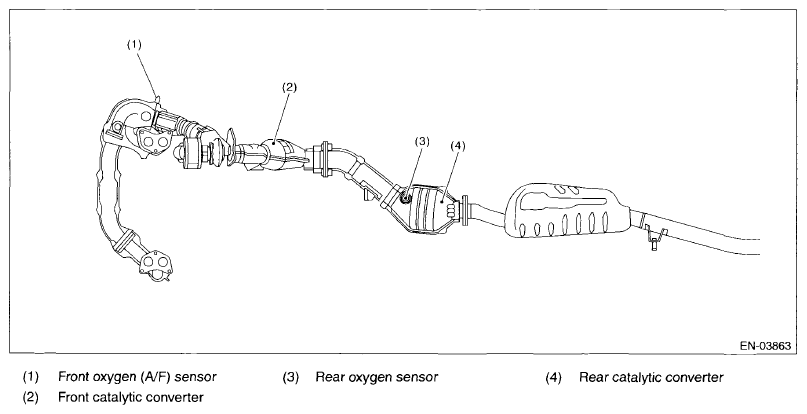

Fig 1: Identifying Sensor Components Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

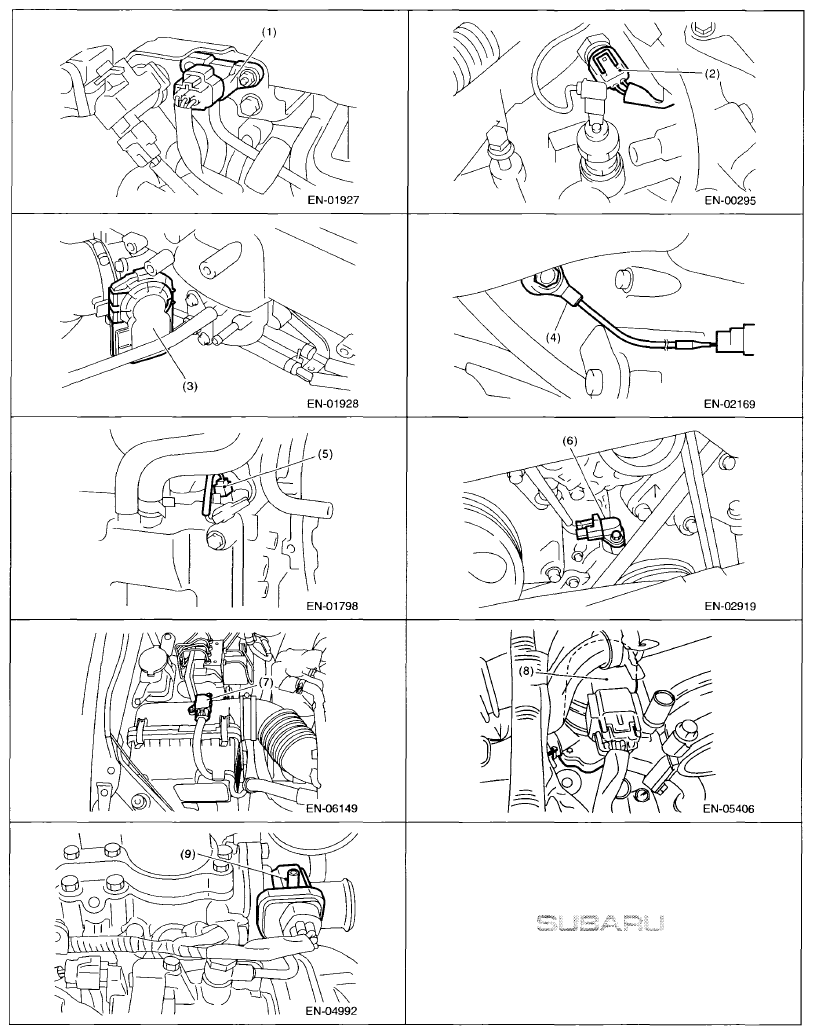

Fig 2: Identifying Sensor Components Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

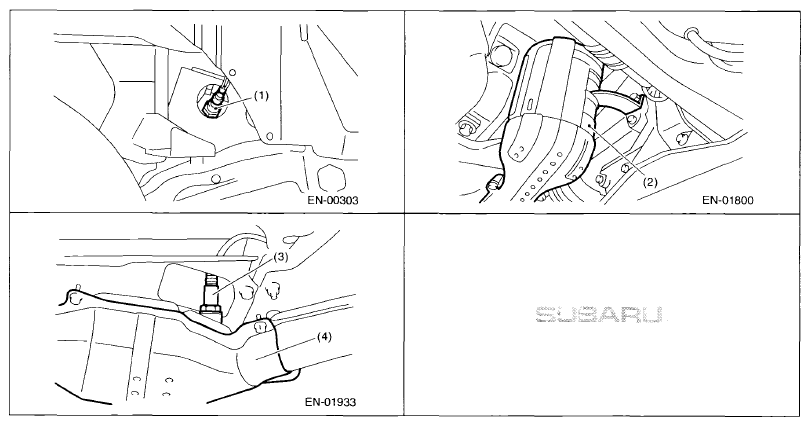

Fig 3: Identifying Sensor Components Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

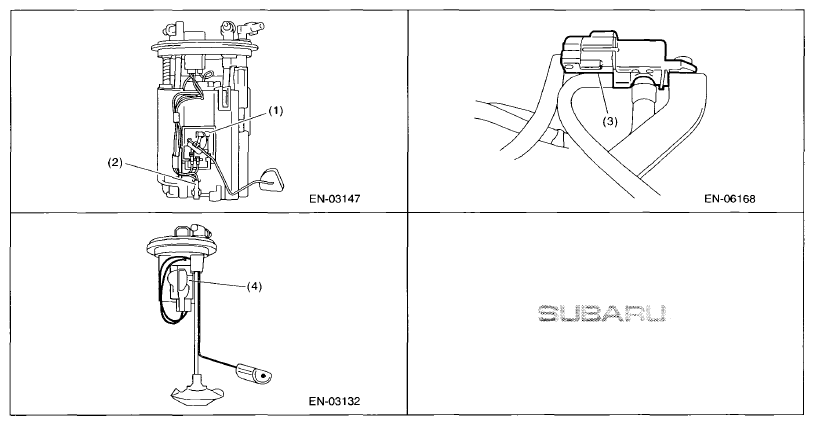

Fig 4: Identifying Sensor Components Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

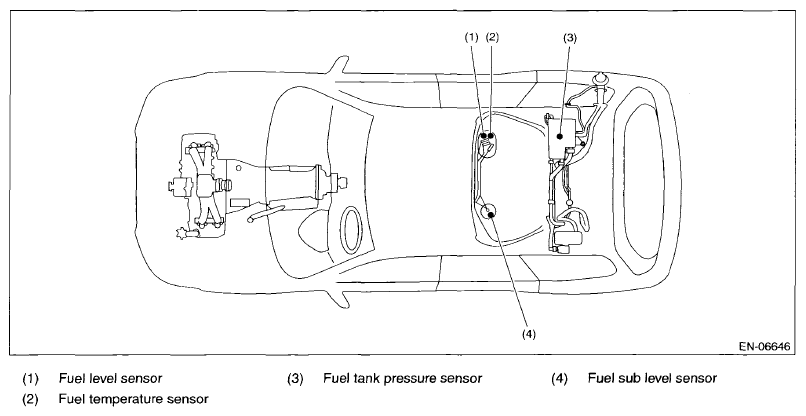

Fig 5: Identifying Sensor Components Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

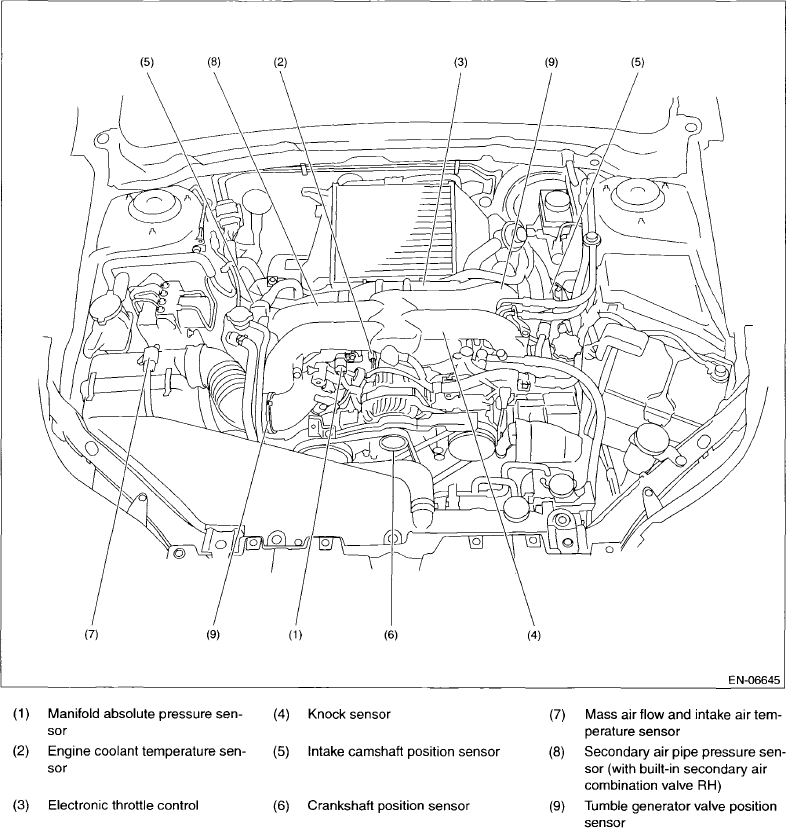

Fig 6: Identifying Sensor Components Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
