Diagnostic procedure

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Drive according to the drive pattern described below.

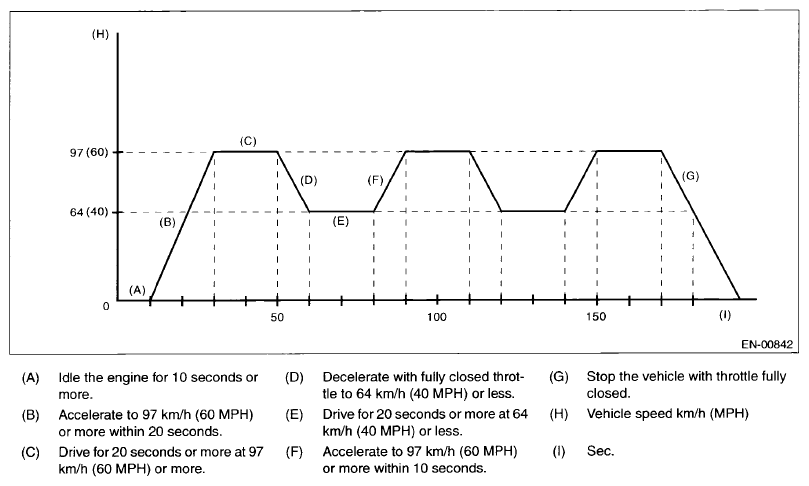

Fig 1: Drive Pattern Chart
G07665241Courtesy of SUBARU OF AMERICA, INC.
