Malfunction Indicator Light Remains Blinking: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

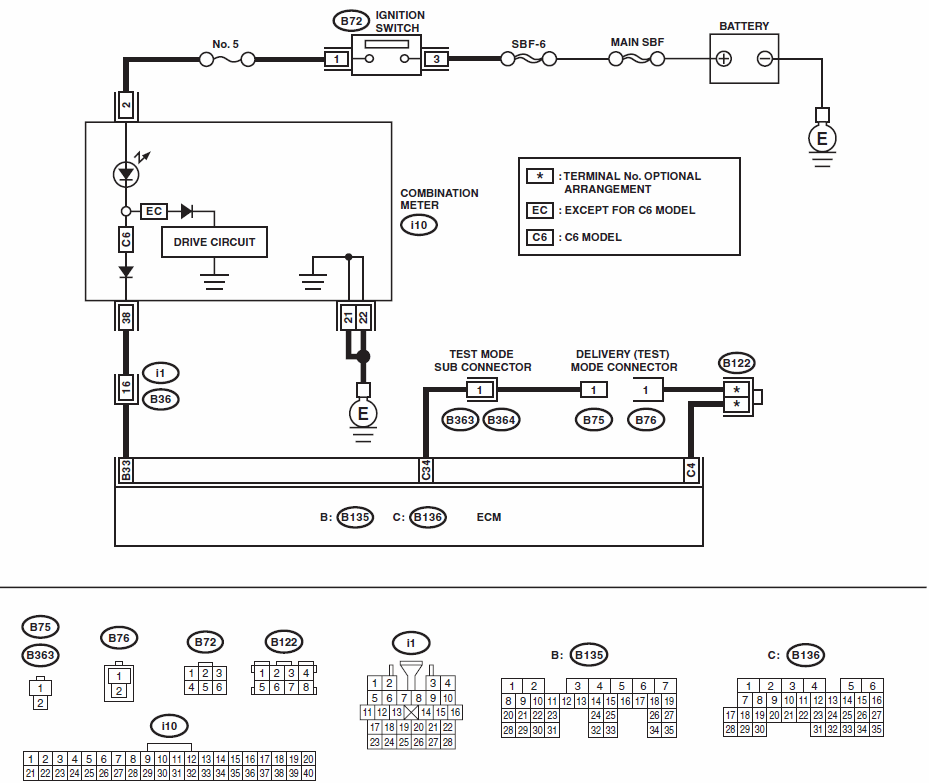

Fig 1: Malfunction Indicator Light - Wiring Diagram (Malfunction Indicator Light Remains Blinking)
G00522219Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSIS PROCEDURE

Step Check Yes No
1 CHECK DELIVERY (TEST) MODE CONNECTOR.
  1. Check the delivery (test) mode connector is disconnected.
  2. Turn the ignition switch to ON.
 Does the malfunction indicator light blink? Go to step 2.  System is normal.
NOTE: Malfunction indicator light blinks at a cycle of 3 Hz when delivery (test) mode connector is connected.
2 CHECK HARNESS BETWEEN ECM AND DELIVERY (TEST) MODE CONNECTOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from ECM.
  3. Measure the resistance of harness between ECM and chassis ground.

    Connector & terminal

    (B136) No. 34 - Chassis ground:

 Is the resistance 1 Ω or more? Replace the ECM. < refer to the ENGINE CONTROL MODULE (ECM) . > Repair the short circuit to ground in harness between ECM and delivery (test) mode connector.
