DTC P2103 Throttle Actuator Control Motor Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

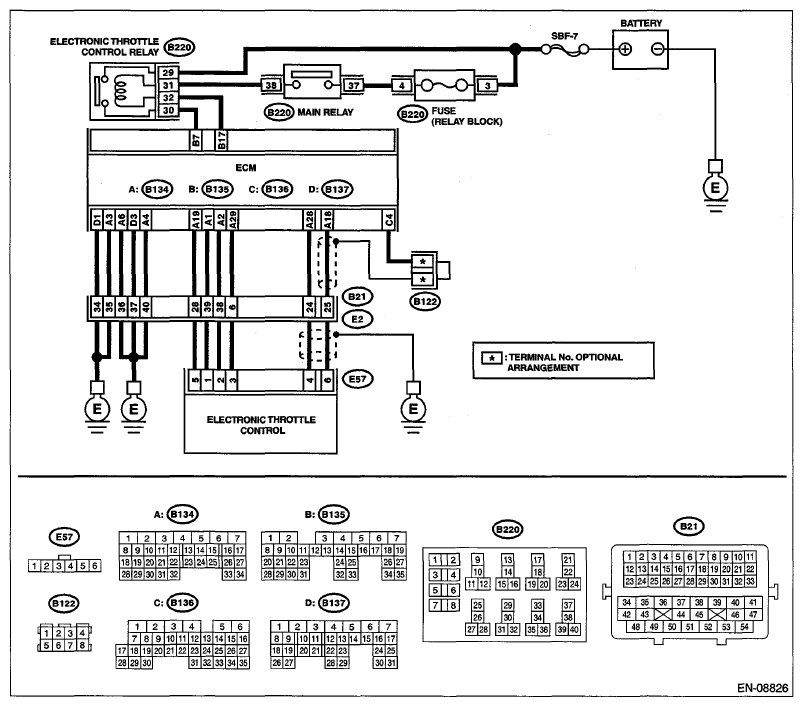

Fig 1: Throttle Actuator Control Motor Circuit High - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to OFF. Remove the electronic throttle control relay. Measure the resistance between electronic throttle control relay terminals. Terminals No. 29 - No. 30:	Is the resistance 1 MΩ or more?	Go to step 2.	Replace the electronic throttle control relay. < refer to ELECTRONIC THROTTLE CONTROL RELAY . >
2 CHECK SHORT CIRCUIT OF ELECTRONIC THROTTLE CONTROL RELAY POWER SUPPLY. Turn the ignition switch to ON. Measure the voltage between electronic throttle control relay connector and chassis ground. Connector & terminal (B220) No. 30 (+) - Chassis ground (-):	Is the voltage 10 V or more?	Repair the short circuit to power in the harness between ECM and electronic throttle control relay connector.	Go to step 3 .
3 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Measure the resistance between ECM and chassis ground. Connector & terminal (B135) No. 17 - Chassis ground:	Is the resistance 1 MΩ or more?	Repair the poor contact of ECM connector.	Repair the short circuit in harness to ground between ECM and electronic throttle control relay connector.
