Section 186 (Tire Pressure Monitoring System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

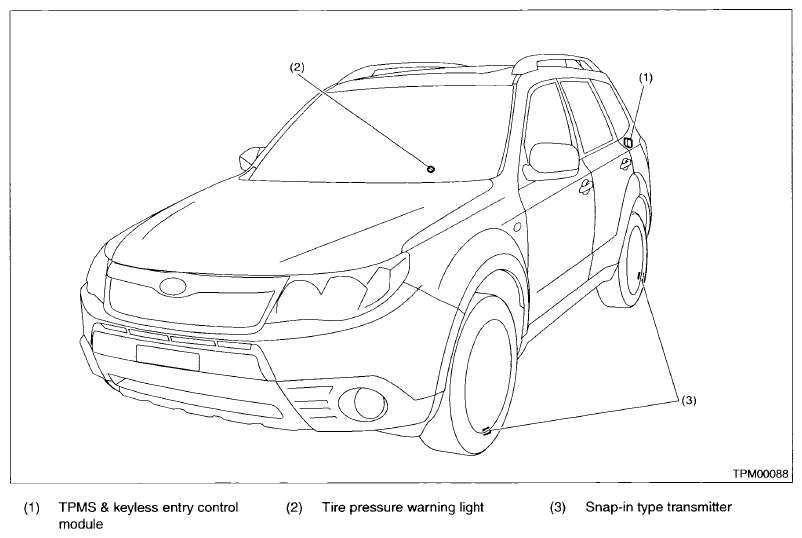

Fig 1: Tire Pressure Monitoring System Component Location (1 Of 2)
G07680155Courtesy of SUBARU OF AMERICA, INC.

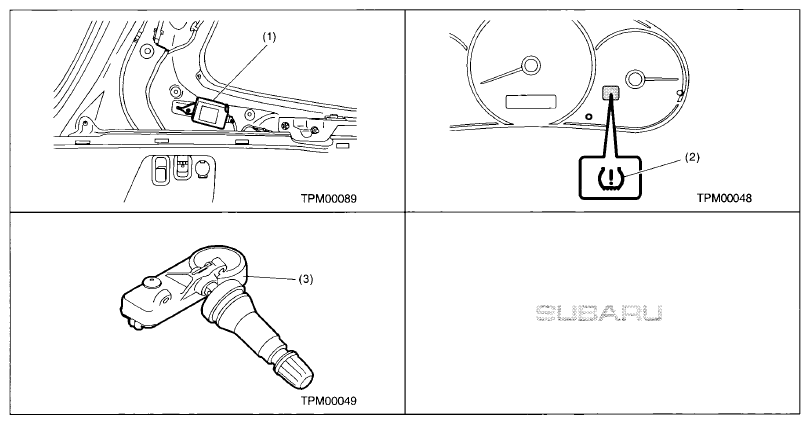

Fig 2: Tire Pressure Monitoring System Component Location (2 Of 2)
G07680156Courtesy of SUBARU OF AMERICA, INC.
