Letter Mark

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Adhere the letter mark according to the following measurements.

Fig 1: Letter Mark Adhere Measurements (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Letter Mark Adhere Measurements (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

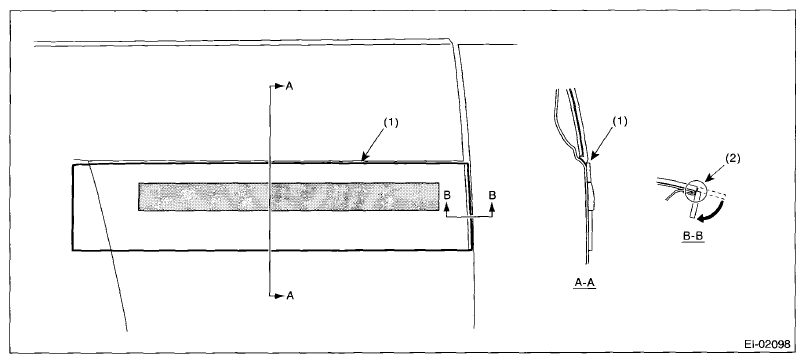

Align the upper edge of the application tape with the rear gate garnish.
Align the slit of the application tape with the edge of the rear gate panel, and break off the application tape.
