Rear Bumper

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

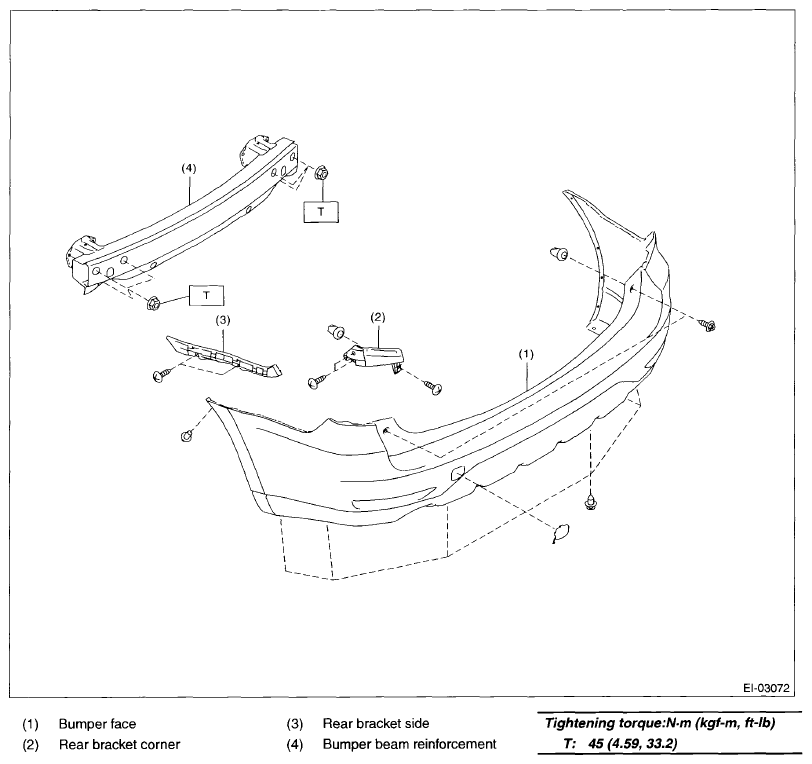

Fig 1: Rear Bumper Components And Tightening Torque
G07666558Courtesy of SUBARU OF AMERICA, INC.
