Inner Trim

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

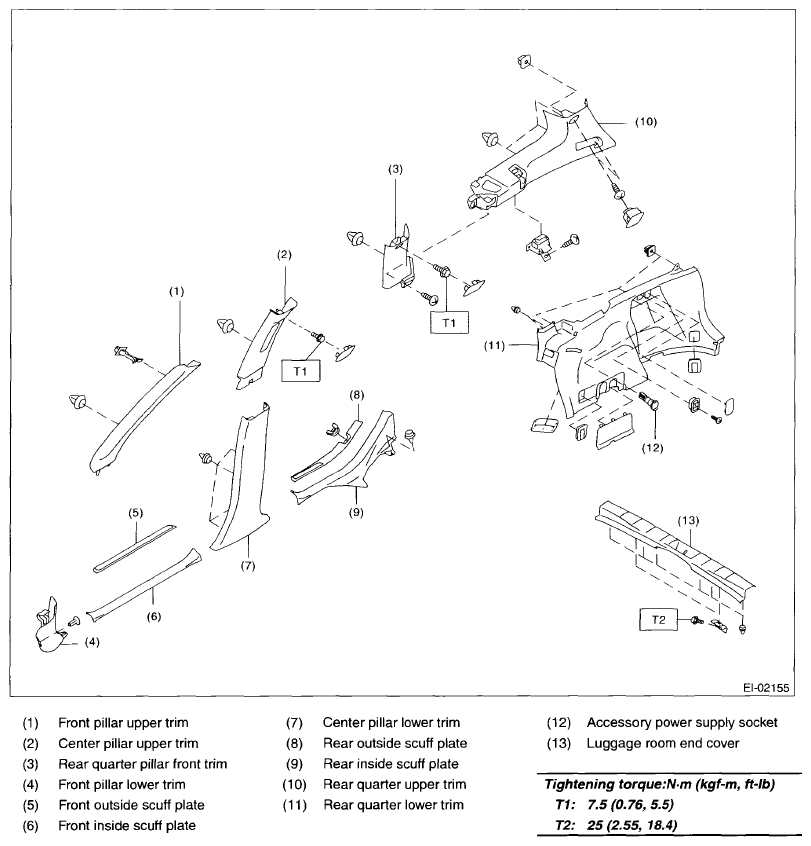

Fig 1: Exploded View Of Inner Trim
G07666573Courtesy of SUBARU OF AMERICA, INC.
