Relay and Fuse: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

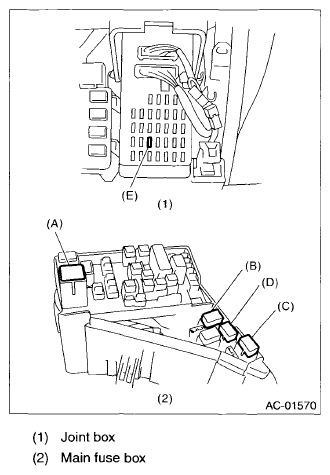

Fig 1: Joint Box And Main Fuse Box

Courtesy of SUBARU OF AMERICA, INC.

MAIN FAN RELAY SPECIFICATION CHART

Main fan relay 1	(A)
Main fan relay 2	(B)
Sub fan relay	(C)
A/C relay	(D)
A/C Fuse	(E)
